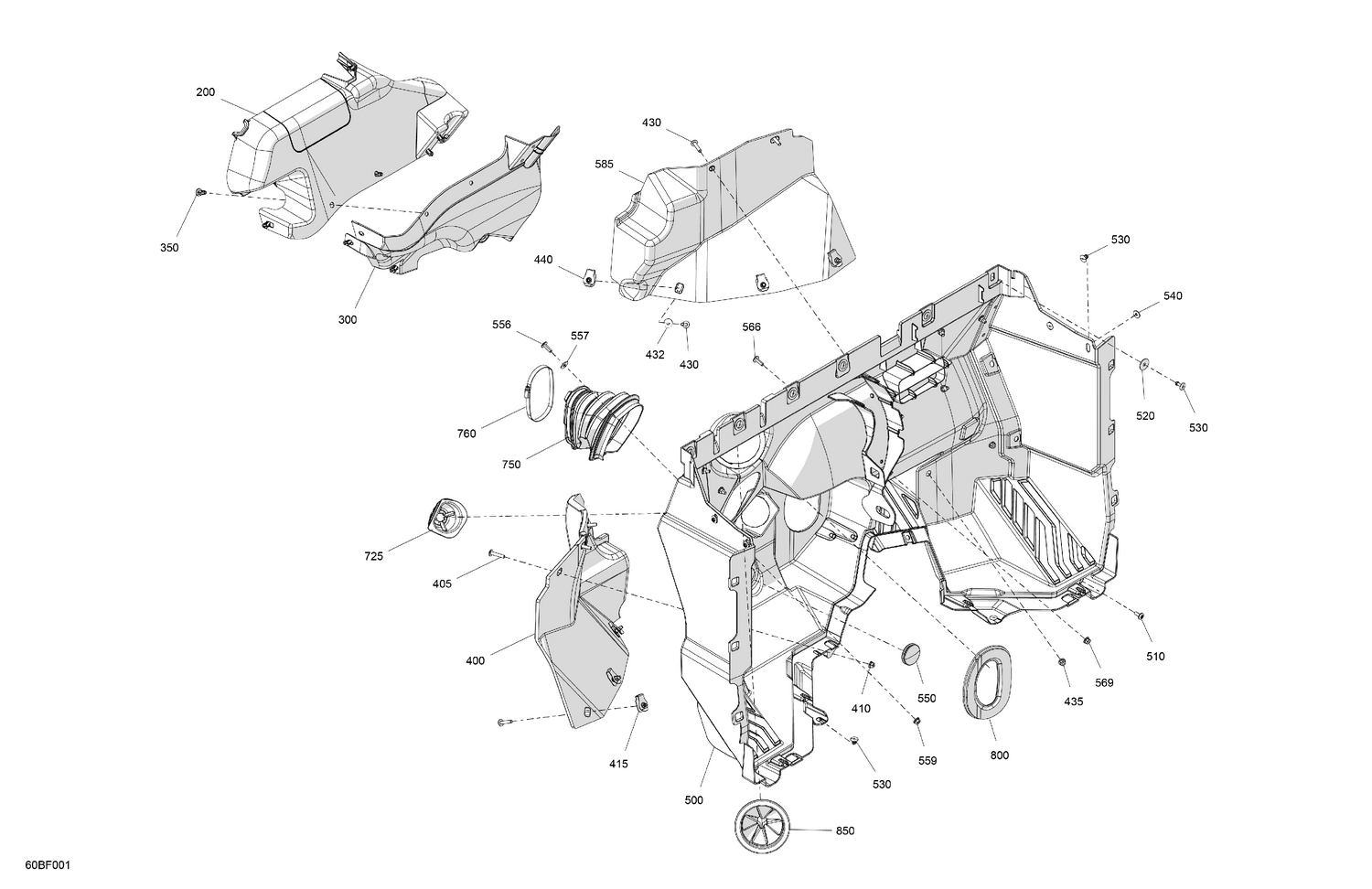

07- Cab Interior - Firewall
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 705013664 | Front Upper Heat Deflector |
| 300 | 705012498 | Front Lower Heat Deflector |
| 350 | 293150230 | Tuflok Plastic Rivet |
| 400 | 705020468 | LH Front Body Panel Deflector |
| 405 | 250000843 | Torx Truss Screw M6 X 30 |
| 410 | 233161464 | Hex. Elastic Flange Nut M6 |
| 415 | 250100224 | Panel Nut M6 X 1.0 |
| 430 | 250000843 | Torx Truss Screw M6 X 30 |
| 432 | 234062670 | Stainless Steel Flat Washer |
| 435 | 233161464 | Hex. Elastic Flange Nut M6 |
| 440 | 250100224 | Panel Nut M6 X 1.0 |
| 500 | 707901341 | Front Seperation Panel |
| 510 | 250000721 | Torx Truss Screw M6 X 16 |
| 520 | 250200044 | Flat Washer M6 X 25 |
| 530 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 540 | 250200025 | Washer M5 |
| 550 | 293250242 | Rubber Cover |
| 556 | 250000722 | Torx Screw M6 X 20 |
| 557 | 234062670 | Stainless Steel Flat Washer |
| 559 | 233161464 | Hex. Elastic Flange Nut M6 |
| 566 | 250000722 | Torx Screw M6 X 20 |
| 569 | 233161464 | Hex. Elastic Flange Nut M6 |
| 585 | 705020469 | RH Front Body Panel Deflector |
| 725 | 707900511 | Steering Column Deflector |
| 750 | 707900515 | Break Pedal Deflector |
| 760 | 514052983 | Norma Gear Clamp |
| 800 | 707900516 | Gas Pedal Deflector |
