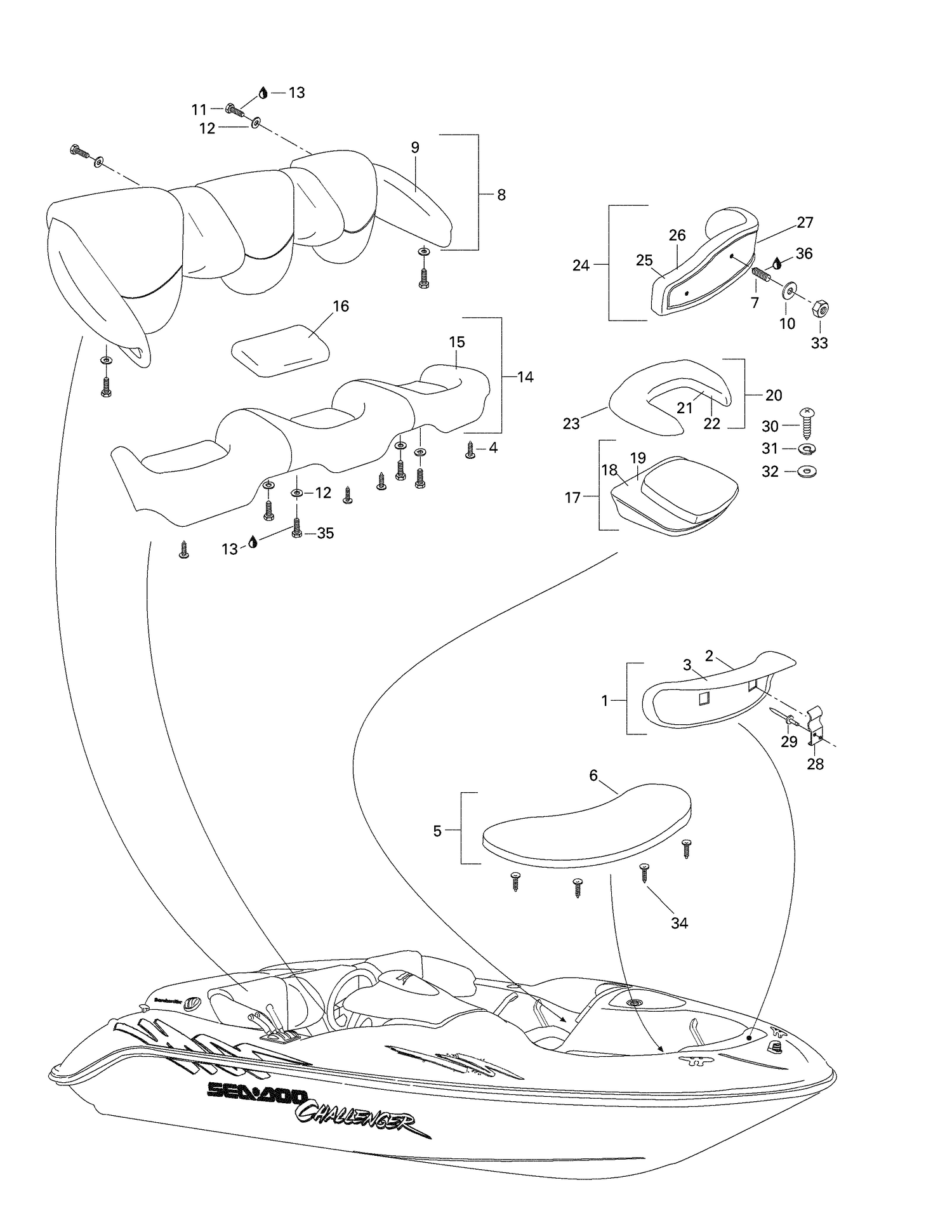

| Ref | Part Number | Description |
|---|
| 2 |
269000330 |
Front Backrest Cover |
| 3 |
269000331 |
Front Backrest Foam |
| 4 |
293730014 |
Black Dart |
| 6 |
269000271 |
Front Seat Cover |
| 7 |
216553060 |
Set Screw M5 x 30 |
| 9 |
269000394 |
RR Backrest Cover (Armrest) |
| 10 |
234052600 |
Flat Washer 5 mm, Stainless This part replaces 213200015. |
| 11 |
207162560 |
Hex. Screw M6 X 25 This part replaces 210000005. |
| 12 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 13 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 15 |
269000396 |
RR Seat Cover (Marine Green) |
| 16 |
269000231 |
Rear Seat Pillow Cover |
| 18 |
269000332 |
Seat Base Cover |
| 19 |
269000333 |
Seat Foam |
| 21 |
269000335 |
Keeper Seat Ring Cover |
| 22 |
269000336 |
Keeper Seat Ring Foam |
| 23 |
269000334 |
Keeper Seat Ring Base |
| 25 |
269000338 |
Keeper Seat Backrest Cover |
| 26 |
269000339 |
Keeper Seat Backrest Foam |
| 27 |
269000337 |
Base Keeper Seat Backrest |
| 28 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 29 |
293150043 |
Pop Rivet 3/16" |
| 30 |
216663860 |
Self Tapping Screw |
| 31 |
234161601 |
Lock Washer Helical M6 This part replaces 217361500. |
| 32 |
293150007 |
WASHER - Call your local BRP dealership This part replaces 213200006. |
| 33 |
232551600 |
Hex. Elastic Nut M5 This part replaces 212000004. |
| 34 |
293730006 |
Black, Dart |
| 35 |
207063060 |
Hex. Screw M6 X 30 This part replaces 210000006. |
| 269000232 |
Rear |
Seat Pillow Foam 269000232 |
| 269000280 |
RR |
Central Backrest Cover (White) 269000280 |
| 269000386 |
RR |
Backrest Cover (Printed) 269000386 |
