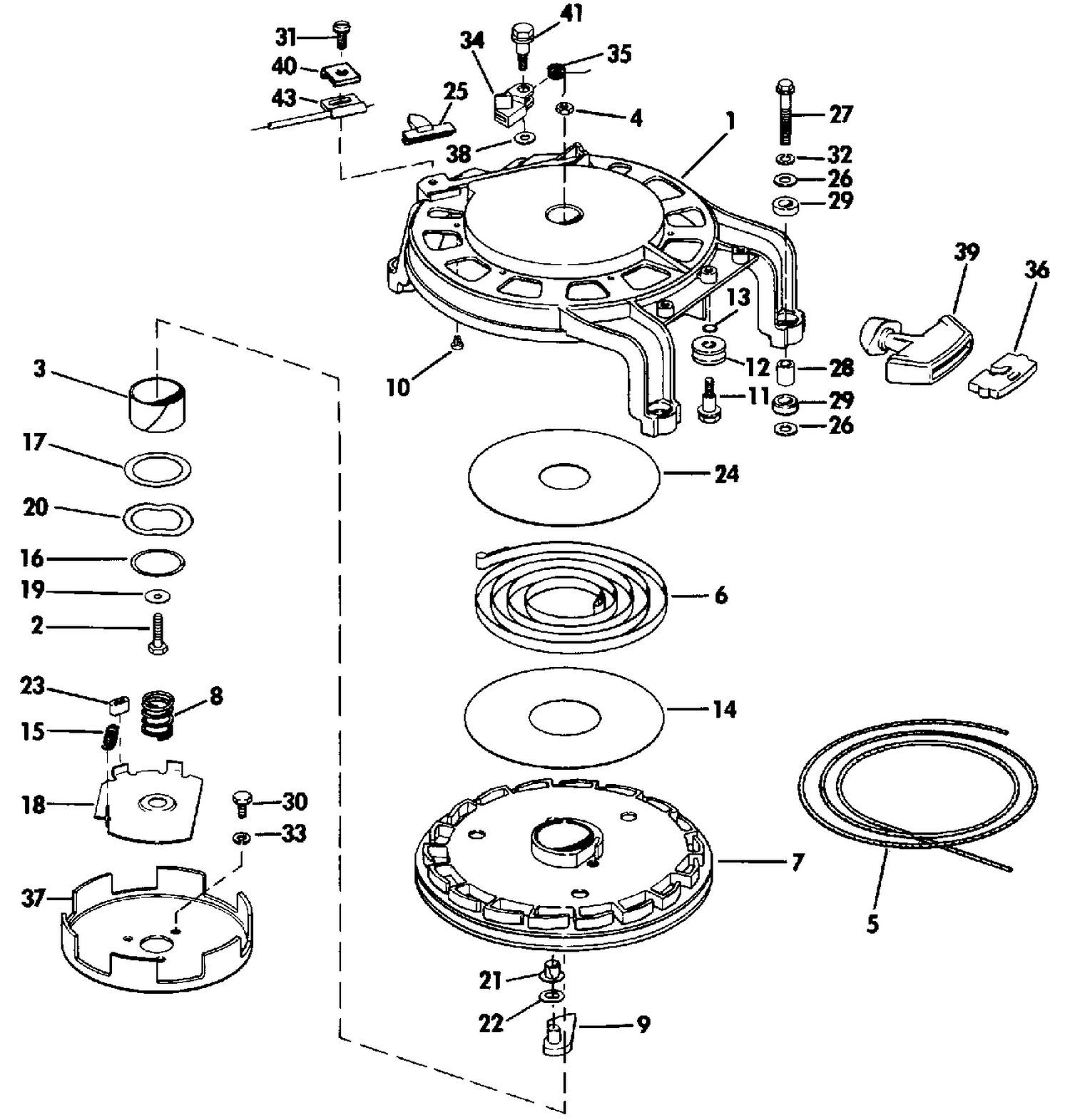

REWIND STARTER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0335020 | SCREW, Bracket to block This part replaces 0318139. |
| 5 | ROPE | Ref: 6 0325431 *SPRING, Starter 0325431 |
| 25 | 0330338 | SLIDE |
| 27 | 0908511 | SCREW |
| 28 | 0326129 | SLEEVE |
| 29 | 0326130 | GROMMET |
| 30 | 0306861 | SCREW |
| 31 | 0328731 | VIS, câble de verrouillage |
| 34 | 0326127 | LOCKOUT LEVER, Starter assy |
| 35 | 0326128 | SPRING |
| 37 | 0329211 | RATCHET |
| 39 | 0326249 | HANDLE, Starter |
| 40 | 0328456 | CLAMP |
| 0397903 | 0438104 | RECOIL STARTER Assy This part replaces 0397903. |
