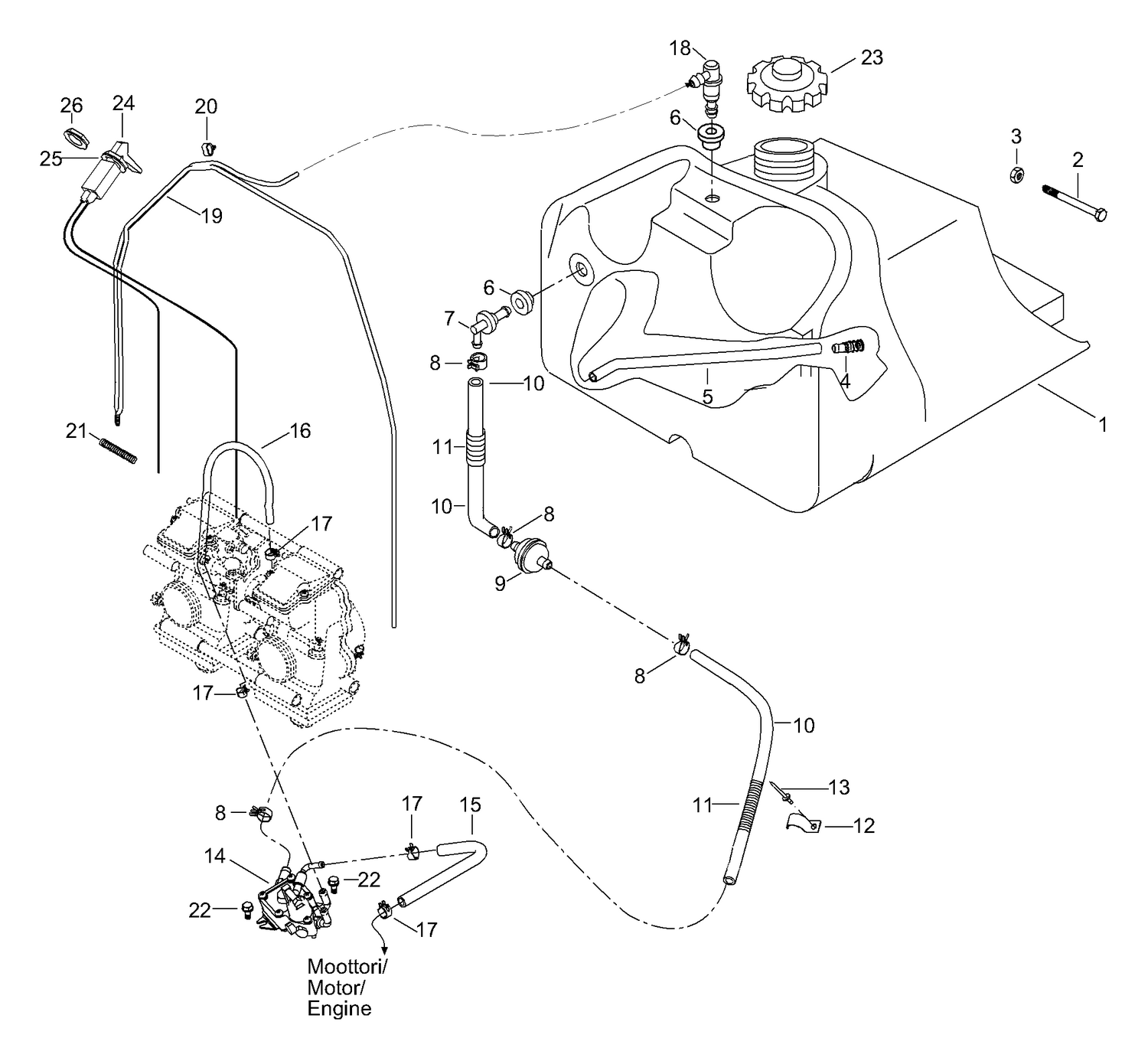

| Ref | Part Number | Description |
|---|
| 1 |
5247364 |
Fuel tank |
| 2 |
40193 |
Screw M6x50 |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 4 |
414872100 |
Fuel filter |
| 5 |
39048 |
Fuel line 12.5/7.5, 440 mm |
| 6 |
280000674 |
Grommet This part replaces 28037. |
| 7 |
5341709 |
CONNECTOR-MALE - Call your local BRP dealership |
| 8 |
414415200 |
Clamp |
| 9 |
414536500 |
Fuel filter |
| 10 |
39046 |
Hose 11/8 |
| 11 |
28015 |
Tubing |
| 12 |
415018200 |
CLIP - Call your local BRP dealership |
| 13 |
36036 |
Rivet |
| 14 |
403901806 |
FUEL PUMP - Call your local BRP dealership |
| 15 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 16 |
39038 |
Fuel line 6.5/9.5, 240 mm |
| 17 |
414420700 |
Universal Spring Clamp |
| 18 |
533535 |
Angle adapter |
| 19 |
39035 |
Airhose 5/3, 1800 mm |
| 20 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 21 |
414818200 |
SPRING - Call your local BRP dealership |
| 22 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 23 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 25 |
394103300 |
Lock washer |
