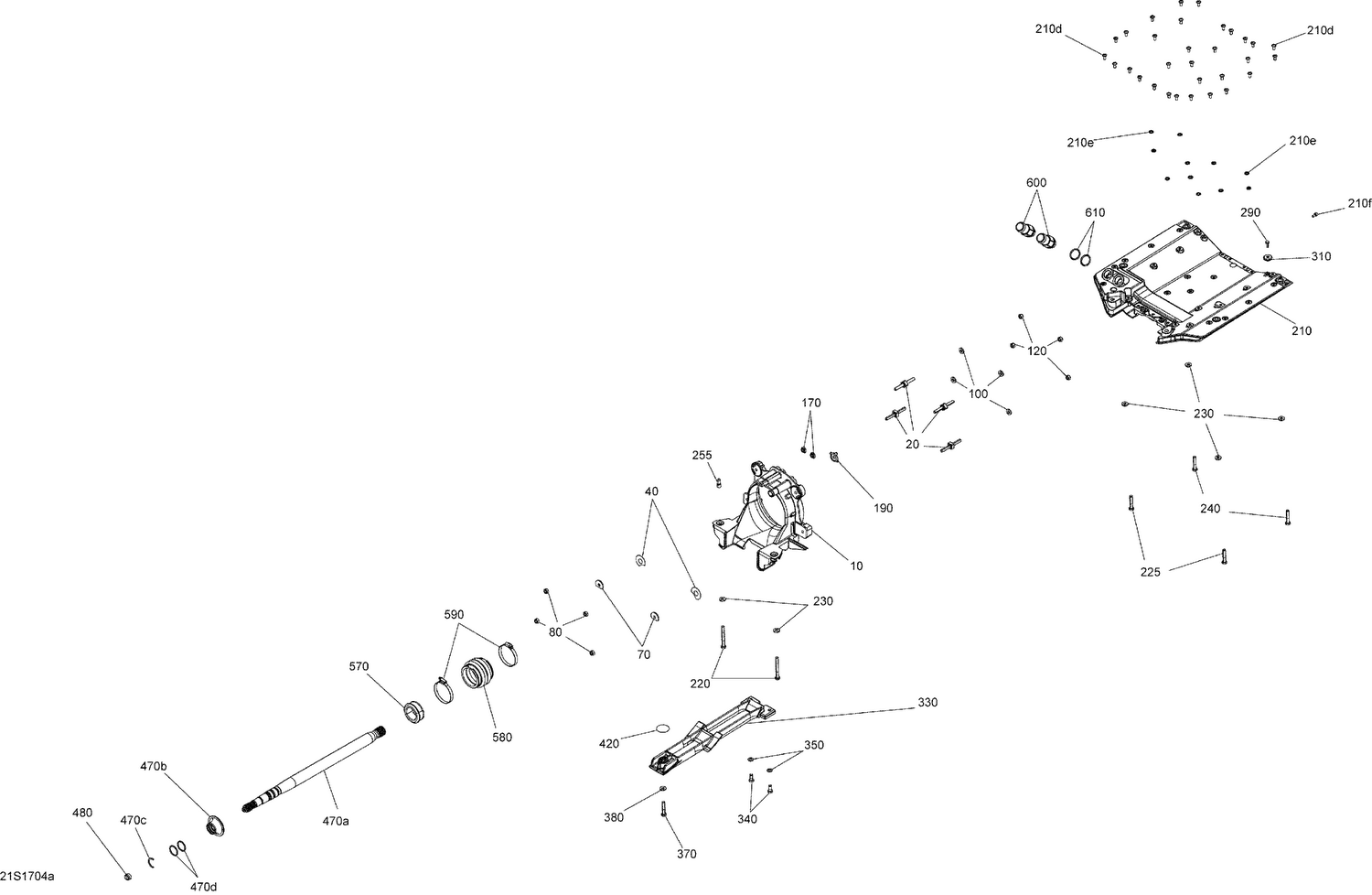

05- Propulsion - All Models
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 271001932 | Pump Support |
| 20 | 250300046 | Square Stud |
| 40 | 272000053 | Shim 0.3 mm |
| 70 | 279000326 | Flat Washer |
| 80 | 232581200 | Hex. Elastic Nut M8 Brass |
| 100 | 293050001 | Flat Washer M8.5 x 18 |
| 120 | 232581200 | Hex. Elastic Nut M8 Brass |
| 170 | 293250084 | Watertight Seal |
| 190 | 271002029 | Reducer, Green This part replaces 271001903. |
| 210d | 250000384 | Torx Screw M6 X 14 |
| 210e | 250200114 | Sealing Washer |
| 210f | 250500005 | Socket Drain Plug M6 X 12 |
| 220 | 250000812 | Hexagonal Head Cap Screw M8 X 75 |
| 225 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 230 | 293050001 | Flat Washer M8.5 x 18 |
| 240 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 255 | 293000105 | Cap Plug |
| 290 | 207361660 | Hex. Screw M6 X 16, Scotch Grip |
| 310 | 271001920 | Anode Zinc |
| 330 | 271001967 | Pump Grate |
| 340 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 350 | 234081600 | Stainless, Flat Washer 8 mm |
| 370 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 380 | 293050001 | Flat Washer M8.5 x 18 |
| 420 | 293830047 | PROTECTOR DISK - Call your local BRP dealership |
| 470a | 271001719 | Drive Shaft |
| 470b | 295501205 | Carbon Ring Kit This part replaces 295501153. |
| 470c | 271001577 | C-Clip |
| 470d | 293300107 | O-Ring |
| 480 | 272000173 | Drive Shaft Plug |
| 580 | 271001933 | Bellow |
| 590 | 293650079 | Norma Clamp |
| 600 | 293710124 | Strait Fitting |
