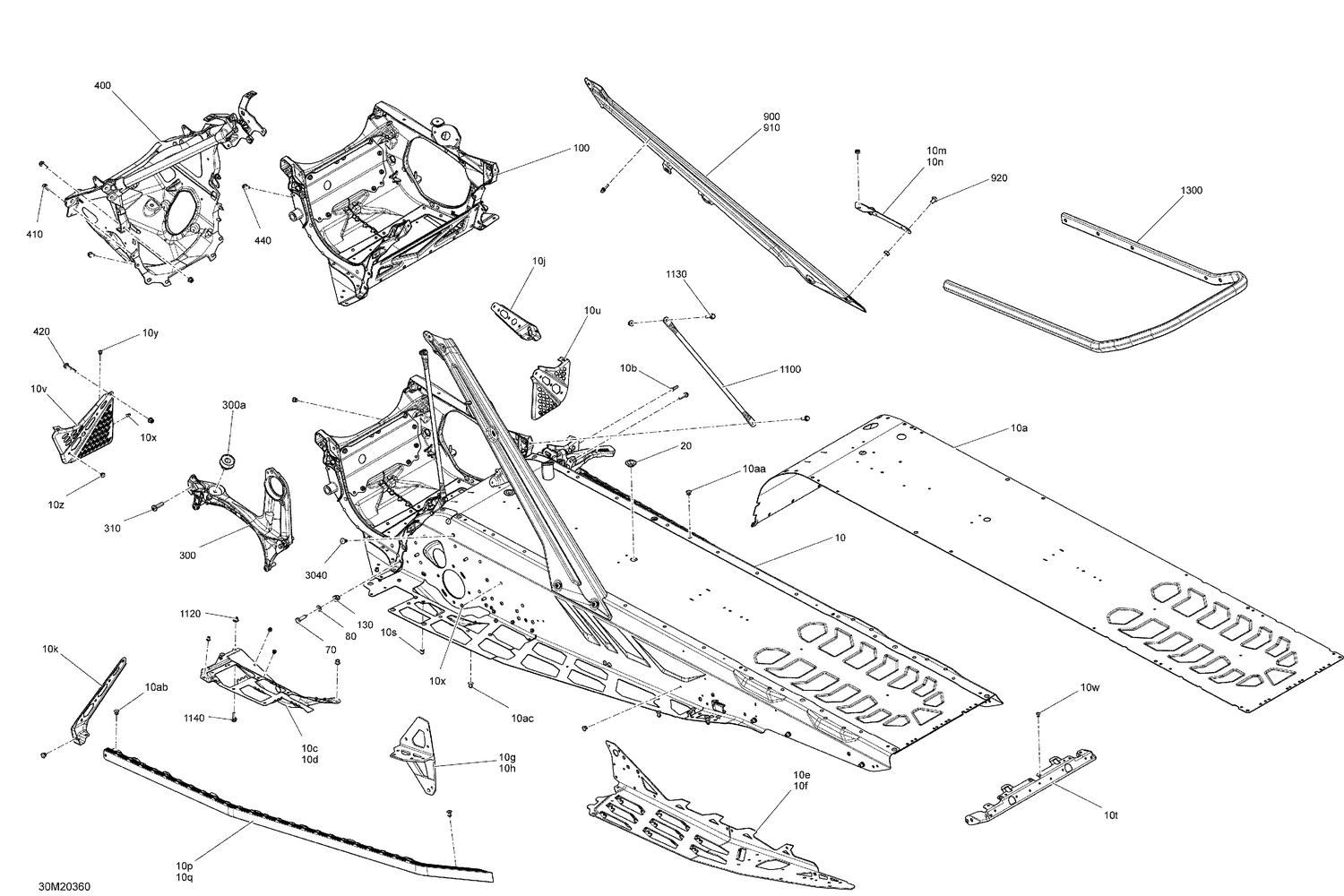

09- Frame - System - 146
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 518334489 | Radiator Tunnel 146 This part replaces 415130287. |
| 10aa | 293150119 | Hemlock Rivet, 6.5 mm |
| 10ab | 293150174 | Hemlock Rivet, 6.4 mm |
| 10ac | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10b | 250300027 | Clinch Stud M6 X 20 |
| 10c | 518330520 | RH Footrest Reinforcement |
| 10d | 518332802 | Deep Black, LH Footrest Reinforcement This part replaces 518331524. |
| 10e | 518329619 | RH Footrest |
| 10f | 518331549 | LH Footrest This part replaces 518329620. |
| 10g | 518330682 | LH Rear Suspension Support |
| 10h | 518334395 | RH Rear Suspension Support This part replaces 518330683. |
| 10j | 518331253 | Stirrup Reinforcement |
| 10k | 518331560 | Deep Black, LH Chasssis Reinforcement |
| 10m | 518330299 | LH Member Fixation Plate |
| 10n | 518331745 | RH Under Chassis Reinforcement This part replaces 518330300. |
| 10p | 518329023 | RH Roller |
| 10q | 518329024 | LH Roller |
| 10s | 605636003 | Clinch Nut M6 Hexsert |
| 10t | 518328990 | Rear Cap |
| 10u | 518328460 | RH Footrest |
| 10v | 518333007 | LH Footrest This part replaces 518331556. |
| 10w | 390909100 | Avex Rivet |
| 10x | 293150163 | Rivet Hucklok |
| 10y | 390909200 | Avex Rivet |
| 10z | 293150096 | Hemlock Rivet, 6.5 mm |
| 20 | 293730052 | Black, Plug |
| 70 | 250000942 | Hex Screw M8 X 30 |
| 80 | 234081410 | Flat Washer 8 mm |
| 100 | 518333108 | Engine Chassis Module Ass'y This part replaces 518330929. |
| 130 | 233281414 | Hex. Flange Elastic Nut M8 |
| 230 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 300a | 512061516 | Vibration Damper This part replaces 512060295. |
| 310 | 250001060 | Screw-Pan HD.Torx M8X30 |
| 400 | 518334549 | Chassis Suspension Module Ass'y This part replaces 518330573. |
| 410 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 |
| 420 | 207662044 | Hex. Flange Screw M6 X 20 |
| 440 | 207661646 | Hex. Flange Screw M6 X 16 |
| 910 | 518331682 | Labrador Blue, RH Rear Diag Cross Member |
| 920 | 250000887 | Pan Head Torx Screw M8 X 12 |
| 1100 | 518329974 | Upper Colomn Support |
| 1120 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1130 | 207662544 | Hex. Flange Screw M6 X 25 |
| 1140 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1300 | 518329553 | Rear Bumper 146 |
