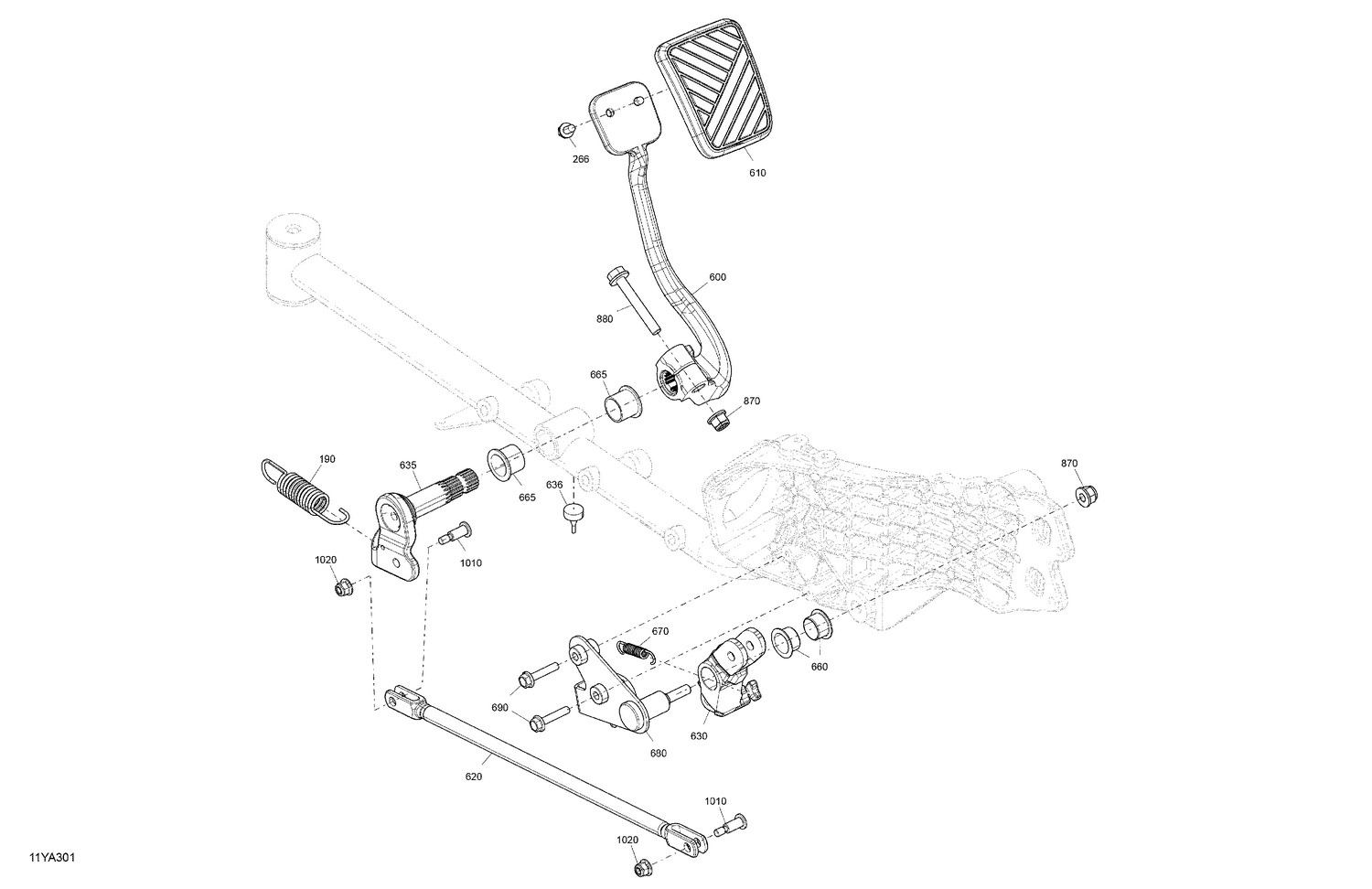

03- Mechanic - Pedal Brake
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 190 | 705503085 | Tension Spring |
| 266 | 210261250 | Hex. Flange Screw M6 X 12 |
| 600 | 705601786 | Brake Pedal |
| 610 | 705014023 | Rubber Pad |
| 620 | 705601847 | Link Rod Assembly |
| 630 | 705601789 | Rocker Rear |
| 635 | 705601939 | Rocker |
| 636 | 708003414 | Rubber Stopper |
| 660 | 709402394 | Bearing, Sleeve |
| 665 | 709402725 | Steering Bushing This part replaces 709401733. |
| 670 | 705601584 | Brake Switch Spring |
| 680 | 705601938 | Axle Rocker |
| 690 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 870 | 233281464 | Elastic Flange Nut M8 |
| 880 | 207685554 | Hex. Flange Screw M8 X 55 |
| 1010 | 250000714 | Flange Screw M6 X 26 |
