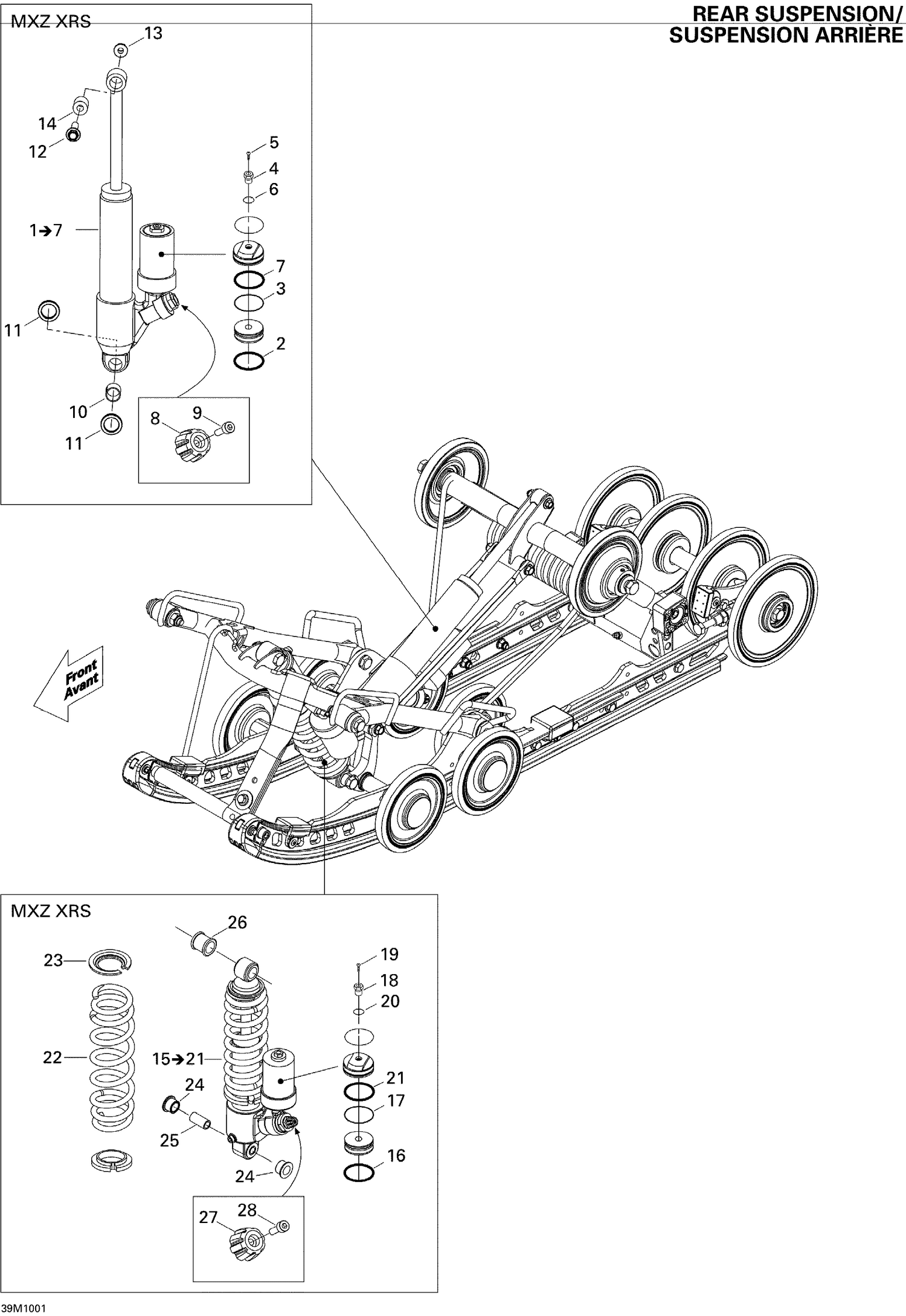

08- Rear Suspension Shocks
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415093807 | O-Ring |
| 3 | 415093806 | Piston Ring |
| 4 | 505070398 | Air Valve |
| 5 | 505070399 | Screw |
| 6 | 505070400 | O-Ring |
| 7 | 415093804 | O-Ring |
| 8 | 505072753 | Adjustment Knob |
| 9 | 250000644 | Allen Screw M3 X 0.5 X 10 This part replaces 205031060. |
| 10 | 503191553 | Bushing |
| 11 | 503190694 | Plastic Spacer |
| 12 | 207684044 | Hex. Flange Screw M8 X 40 |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 414936000 | Bushing |
| 16 | 415093807 | O-Ring |
| 17 | 415093806 | Piston Ring |
| 18 | 505070398 | Air Valve |
| 19 | 505070399 | Screw |
| 20 | 505070400 | O-Ring |
| 21 | 415093804 | O-Ring |
| 22 | 503192217 | BLACK SPRING - Call your local BRP dealership |
| 23 | 503194270 | Spring Stopper This part replaces 503192029. |
| 24 | 503189117 | Urethane Bushing |
| 25 | 503189282 | Bushing |
| 26 | 503189271 | Bushing |
| 27 | 505072753 | Adjustment Knob |
