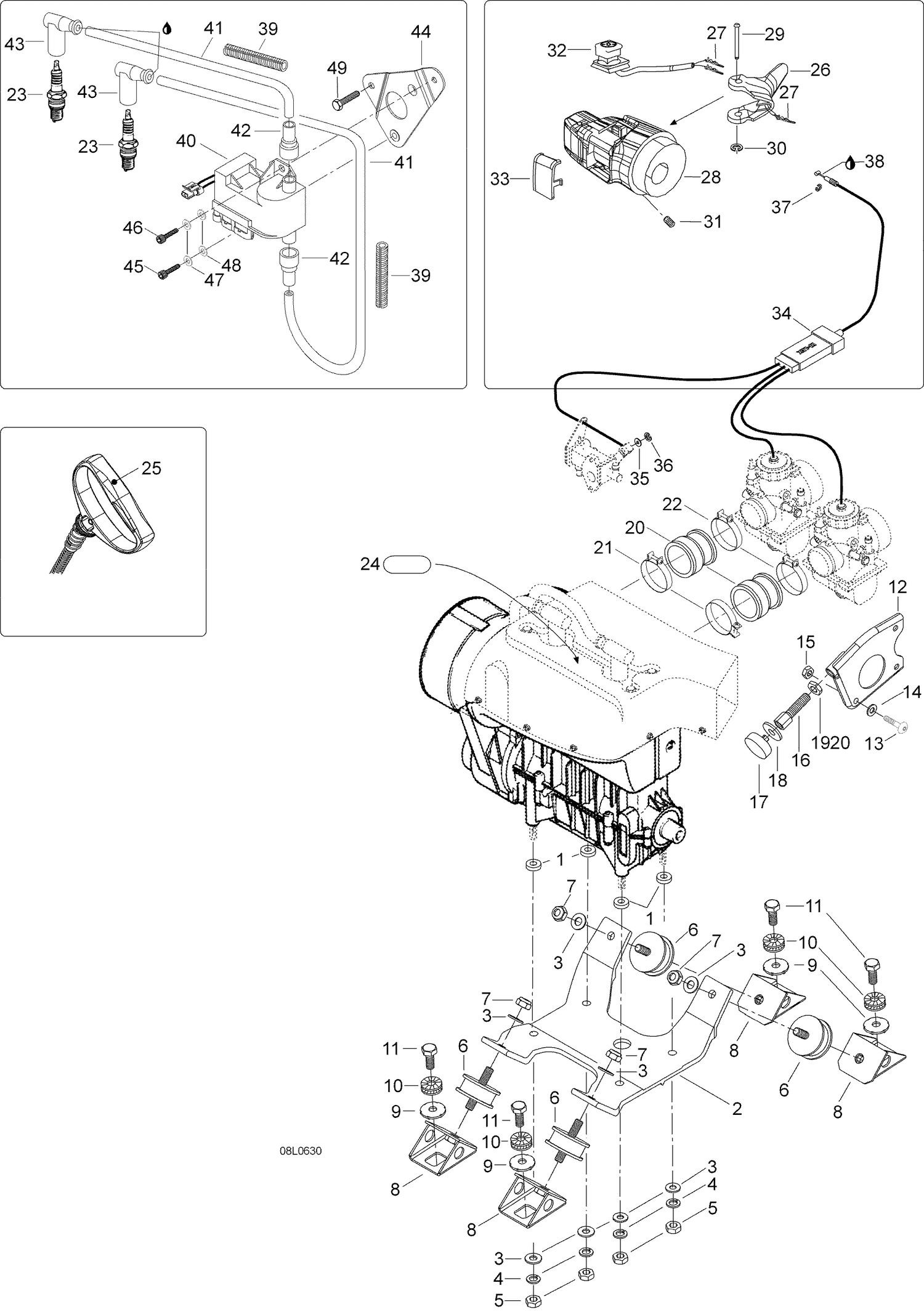

01- Engine And Engine Support
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512051800 | SPACER - Call your local BRP dealership |
| 2 | 512059397 | Engine support |
| 3 | 20005 | WASHER M10 - Call your local BRP dealership |
| 4 | 20113 | Spring washer M10 |
| 5 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 6 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 7 | 33082 | Elastic stop nut M10 |
| 8 | 512050900 | Engine support |
| 9 | 512056700 | Lock washer |
| 10 | 20068 | Lock washer |
| 11 | 40040 | Hex. screw M10 x 25 |
| 12 | 512059446 | Support plate |
| 13 | 40344 | Socket head screw M8 x 25 |
| 14 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 15 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 16 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 17 | 512059056 | Stopper |
| 18 | 5147306 | Washer |
| 19 | 33218 | Jam nut M12 |
| 20 | 512059478 | Adaptor |
| 21 | 512059395 | Clamp |
| 22 | 512059834 | Clamp |
| 23 | 219703120 | Spark Plug NGK BR9ES This part replaces 414961100. |
| 24 | 516000986 | Decal, spark plug |
| 25 | 572084400 | Grip |
| 26 | 512059624 | Throttle handle |
| 27 | 605642628 | CONNECTOR - Call your local BRP dealership |
| 28 | 572100900 | Throttle handle housing |
| 29 | 414438700 | Pin |
| 30 | 414439000 | Circlip |
| 31 | 414440800 | Socket Set Screw M8 X 10 |
| 32 | 515175410 | Switch kill |
| 33 | 572100901 | Cover |
| 34 | 512059625 | THROTTLE CABLE - Call your local BRP dealership |
| 35 | 234081100 | Flat Washer 8 mm This part replaces 414753300. |
| 36 | 414753500 | Circlip This part replaces 31035. |
| 37 | 31038 | Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 38 | 293550004 | Dielectric-rasva, 150g |
| 39 | 28012 | Tubing |
| 41 | 278002198 | SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 42 | 515174900 | PROTECTION CAP - Call your local BRP dealership |
| 43 | 278000237 | SPARK PLUG CAP - Call your local BRP dealership |
| 44 | 512059494 | Bracket |
| 45 | 40364 | Socket head screw M6 x 16 |
| 46 | 40052 | Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 47 | 20052 | Lock washer A6 |
| 48 | 20003 | Washer A6,4 |
