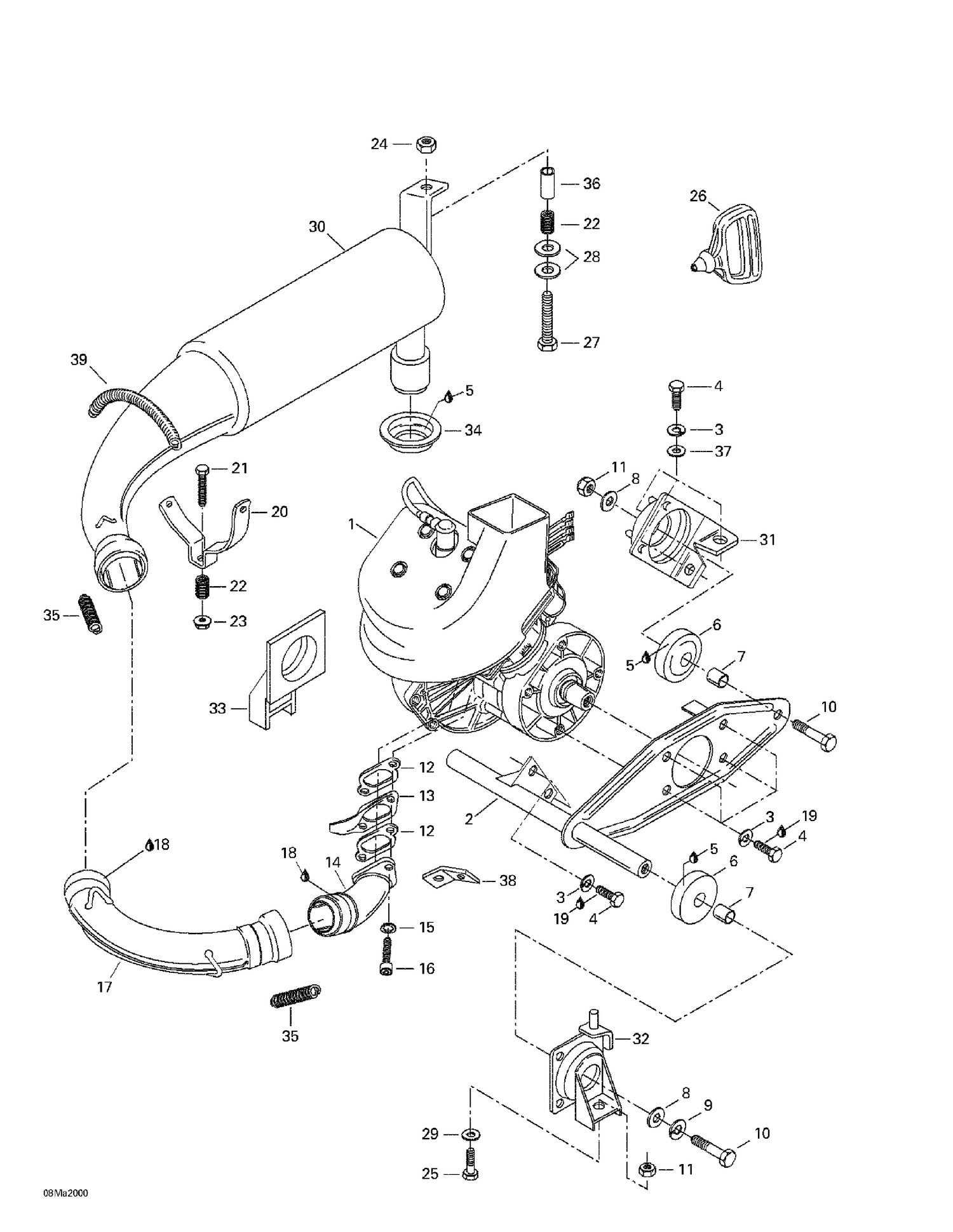

01- Engine Support And Muffler
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400206003 | Engine 277 Ass'y |
| 2 | 512059034 | Engine Support Paint |
| 3 | 234181401 | Lock Washer 8 mm |
| 4 | 207182044 | Hex. Screw M8 X 20 |
| 5 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 7 | 517167100 | BUSHING - Call your local BRP dealership |
| 8 | 506063100 | Washer |
| 9 | 234101402 | Lock Washer M10 |
| 10 | 207004044 | Hex. Screw M10 X 40 |
| 11 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 12 | 420831847 | Gasket 1 mm |
| 13 | 420975720 | AIR DEFLECTOR - Call your local BRP dealership |
| 14 | 420978836 | Exhaust Socket |
| 15 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 16 | 205083044 | Socket Head Screw M8 X 30 |
| 17 | 514050300 | Welded Exhaust Elbow |
| 18 | 293800090 | Sealant, Loctite, 80 ml This part replaces 413710300. |
| 19 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 20 | 514017900 | Muffler Support |
| 21 | 207064544 | Hex. Screw M6 X 45 |
| 22 | 414913700 | SPRING - Call your local BRP dealership |
| 23 | 232561414 | Elastic Stop Nut M6 |
| 24 | 232581414 | Hex. Elastic Stop Nut M8 |
| 25 | 207102544 | Hex. Screw M10 X 25 |
| 26 | 572084400 | Starter Grip |
| 27 | 207085044 | Hex. Screw M8 X 50 |
| 28 | 234082410 | Flat Washer 8 mm |
| 29 | 732900051 | WASHER - Call your local BRP dealership |
| 30 | 514050200 | Muffler |
| 31 | 512050400 | WELDED SUPPORT - Call your local BRP dealership |
| 32 | 512048400 | LH Support |
| 33 | 512048300 | RH Welded Support |
| 34 | 570141300 | Exhaust Grommet |
| 35 | 517182100 | SPRING - Call your local BRP dealership |
| 36 | 514035800 | Guide |
| 37 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 38 | 420953170 | SPRING BRACKET - Call your local BRP dealership |
