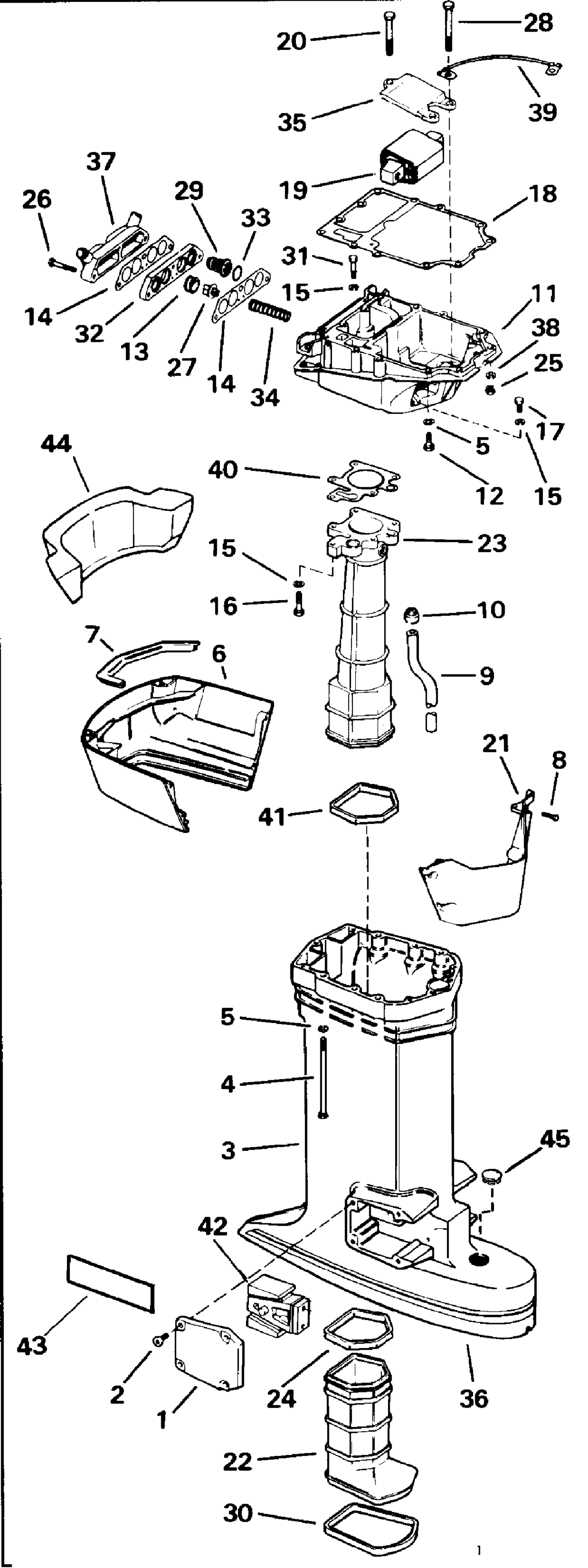

| Ref | Part Number | Description |
|---|
| 1 |
0338942 |
COVER, Mount bracket lower This part replaces 0320864. |
| 2 |
0322000 |
SCREW, Starter to crankcase |
| 3 |
0332744 |
EXHAUST HOUSING |
| 3 |
0337549 |
EXHAUST HOUSING This part replaces 0336674. |
| 3 |
0435318 |
EXHAUST HOUSING, Outer This part replaces 0332745. |
| 4 |
0328698 |
SCREW, Adapter to crankcase |
| 6 |
0390131 |
COVER, Exhaust housing, rear |
| 7 |
0318258 |
SEAL Cover |
| 7 |
0332876 |
CAM, Throttle control |
| 9 |
0323403 |
WATER TUBE |
| 9 |
0323404 |
WATER TUBE |
| 10 |
0305145 |
GROMMET |
| 11 |
0331039 |
ADAPTER, Exhaust housing |
| 13 |
0321692 |
GROMMET |
| 14 |
0332369 |
GASKET |
| 16 |
0306418 |
VIS, ancrage |
| 17 |
0306409 |
VIS, collecteur vers carter-moteur |
| 18 |
0342513 |
GASKET, Adapter to powerhead This part replaces 0321727. |
| 19 |
0395755 |
RUBBER MOUNT ASSY., Upper |
| 21 |
0323800 |
COVER, Exhause housing, front, plastic |
| 22 |
0327796 |
EXHASUT HSG,Inner lower |
| 22 |
0327797 |
EXHAUST HOUSING, Inner lower |
| 23 |
0329556 |
EXHAUST HOUSING, Inner |
| 24 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 26 |
0305652 |
VIS, manette des gaz |
| 27 |
0318395 |
CHECK VALVE |
| 28 |
0330931 |
VIS, support supérieur |
| 29 |
5005440 |
THERMOSTAT This part replaces 0393659. |
| 30 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 31 |
0303398 |
VIS, support |
| 32 |
0321693 |
VALVE BODY |
| 33 |
0321932 |
GASKET, Thermostat |
| 34 |
0317245 |
SPRING, Control valve |
| 35 |
0331022 |
PLATE |
| 36 |
0211388 |
DECAL |
| 36 |
0212022 |
DECAL, Evinrude |
| 36 |
0335117 |
DECAL, Exh. hsg., Jo. |
| 36 |
0338445 |
DECAL, Exh. hsg., Ev., 90/100/115, except Jet |
| 37 |
0321690 |
COVER, Thermostat |
| 39 |
0583967 |
GROUND LEAD |
| 40 |
0323459 |
GASKET |
| 41 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 42 |
0434631 |
MOUNT ASSY., Lower |
| 43 |
0338173 |
DECAL, Lower covers, Quiet Rider |
| 44 |
0334824 |
SEAL, Cover |
