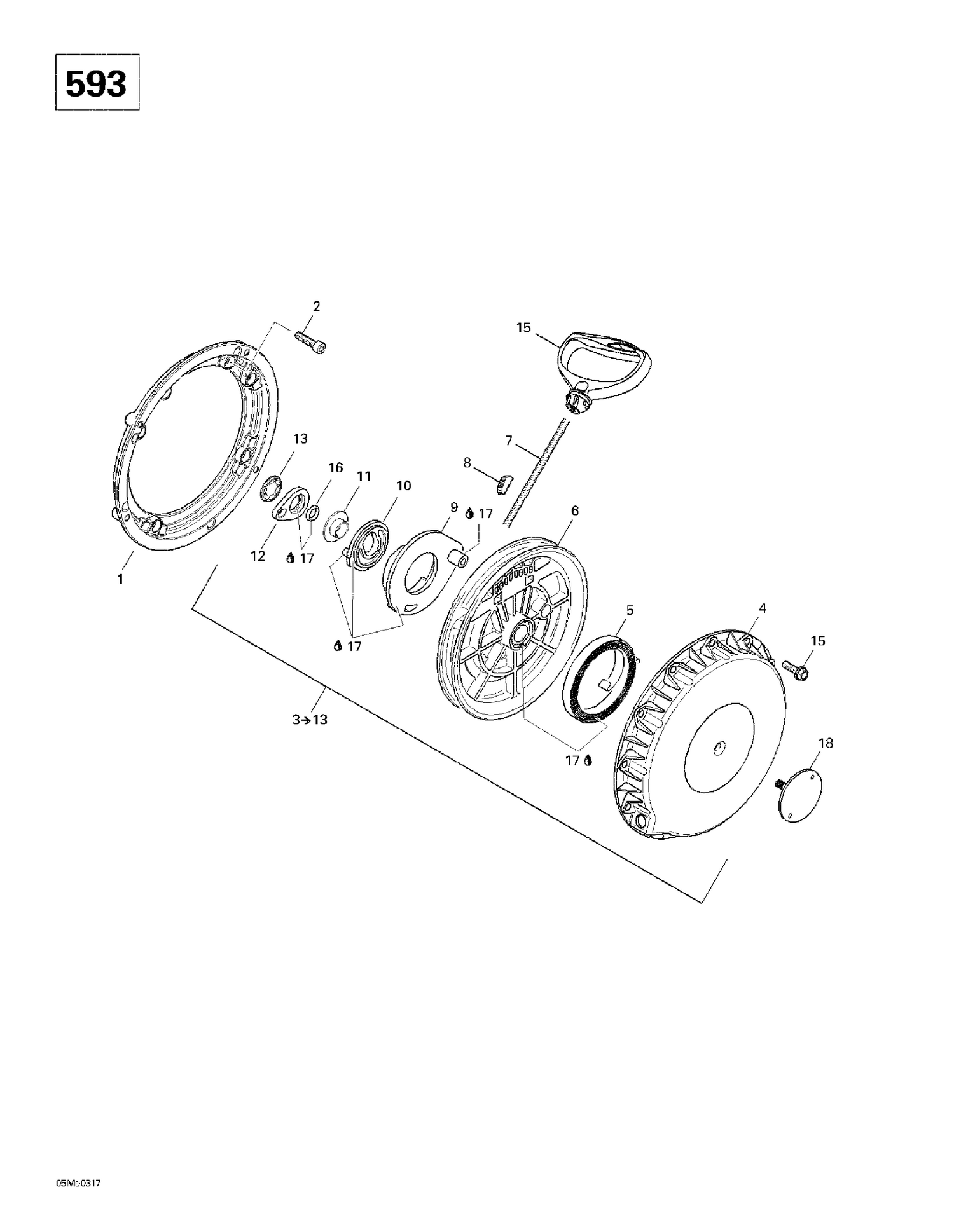

04- Rewind Starter
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420810868 | Flange Connector This part replaces 420810865. |
| 2 | 420241237 | Socket Head Screw M6 x 16 This part replaces 420241236. |
| 4 | 420910256 | Starter Housing This part replaces 420811404. |
| 5 | 420939115 | Rewind Spring |
| 6 | 420852286 | ROPE SHEAVE - Call your local BRP dealership |
| 7 | 219704403 | Was 412500100 Rope-Starter |
| 8 | 420852070 | Key Clamp |
| 9 | 420852633 | Pawl This part replaces 420852297. |
| 10 | 420852305 | PAWL LOCK - Call your local BRP dealership |
| 11 | 420847926 | Stage Sleeve This part replaces 420847925. |
| 12 | 420852520 | Lock Ring |
| 13 | 420845560 | Locking Element |
| 14 | 420441386 | Torx Flange Screw M6 X 20 This part replaces 420941256. |
| 15 | 572084400 | Starter Grip |
| 16 | 420250400 | O-Ring |
| 17 | 420899763 | Molykote PG 54, 10 g |
