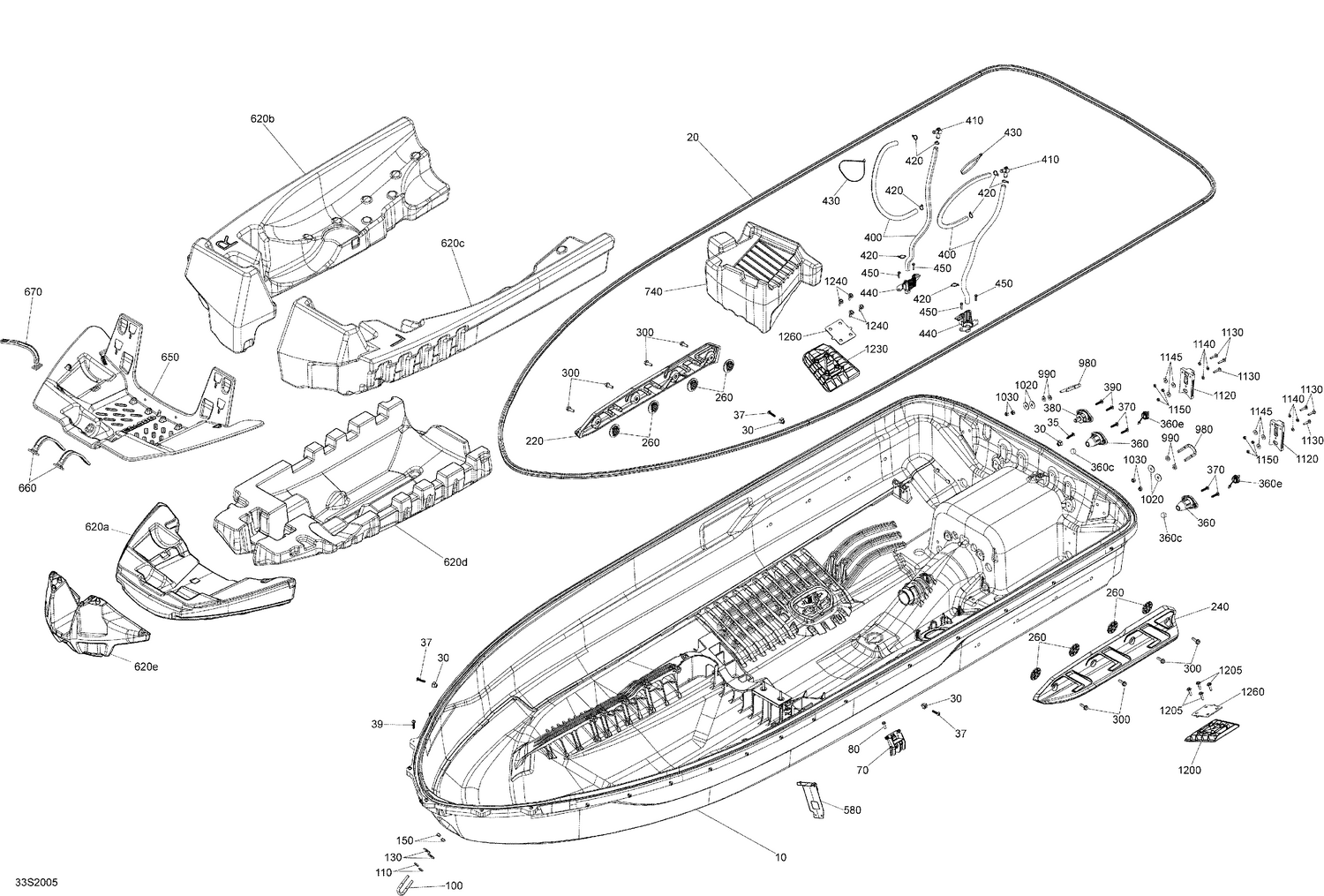

09- Hull
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 292002265 | Hull |
| 20 | 292002242 | Gasket |
| 30 | 291003793 | Insert |
| 35 | 250000879 | Plastite Torx Screw M6.81X30 |
| 37 | 250000879 | Plastite Torx Screw M6.81X30 |
| 39 | 250000879 | Plastite Torx Screw M6.81X30 |
| 70 | 292002383 | Battery Rest |
| 80 | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 100 | 292000933 | U-Clamp |
| 110 | 293050001 | Flat Washer M8.5 x 18 |
| 130 | 250200175 | Flat Washer 8 mm, Stainless |
| 150 | 232581200 | Hex. Elastic Nut M8 Brass |
| 220 | 292001953 | RH Sponson |
| 240 | 292001954 | LH Sponson |
| 260 | 293450387 | Housing Nut M8 This part replaces 293450363. |
| 300 | 207682534 | Hex. Flange Screw M8 X 25 |
| 360c | 293830080 | Floating Ball |
| 360e | 292002022 | Plug Ass'y |
| 370 | 250001194 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250001008. |
| 380 | 292002153 | Drain Neck Ass'y |
| 390 | 250001194 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250001008. |
| 400 | 219704393 | Polyurethane Hose 1000Mm Long |
| 410 | 293710152 | Fitting Elbow 90° |
| 420 | 293750001 | Tie Wrap 94 mm |
| 430 | 293750008 | Tie Wrap 368 mm |
| 440 | 269800956 | Pump Support This part replaces 269800816. |
| 450 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 580 | 292002434 | Battery Support |
| 620a | 292002399 | Float Hull Front |
| 620b | 292002229 | RH Center Float Hull |
| 620c | 292002230 | LH Center Float Hull |
| 620d | 292002298 | Float Hull Center |
| 620e | 292002405 | Float Hull Front Upper |
| 650 | 292001868 | Trunk Shield |
| 660 | 269502417 | Strap This part replaces 269500408. |
| 670 | 269502417 | Strap This part replaces 269500408. |
| 740 | 292002244 | Foam Support |
| 900 | 292002397 | Panel |
| 980 | 292000933 | U-Clamp |
| 990 | 293050001 | Flat Washer M8.5 x 18 |
| 1020 | 250200175 | Flat Washer 8 mm, Stainless |
| 1030 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1120 | 292002113 | Ladder Attachment |
| 1130 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 1140 | 234061600 | Stainless Flat Washer M6 |
| 1145 | 234062600 | Flat Washer M6, Stainless |
| 1150 | 232561200 | Brass Elastic Stop Nut M6 |
| 1200 | 292002102 | LH Trim Tab |
| 1205 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 1230 | 292002103 | RH Trim Tab |
| 1240 | 250000978 | Hexagonal Cap Screw M6 X 25 |
