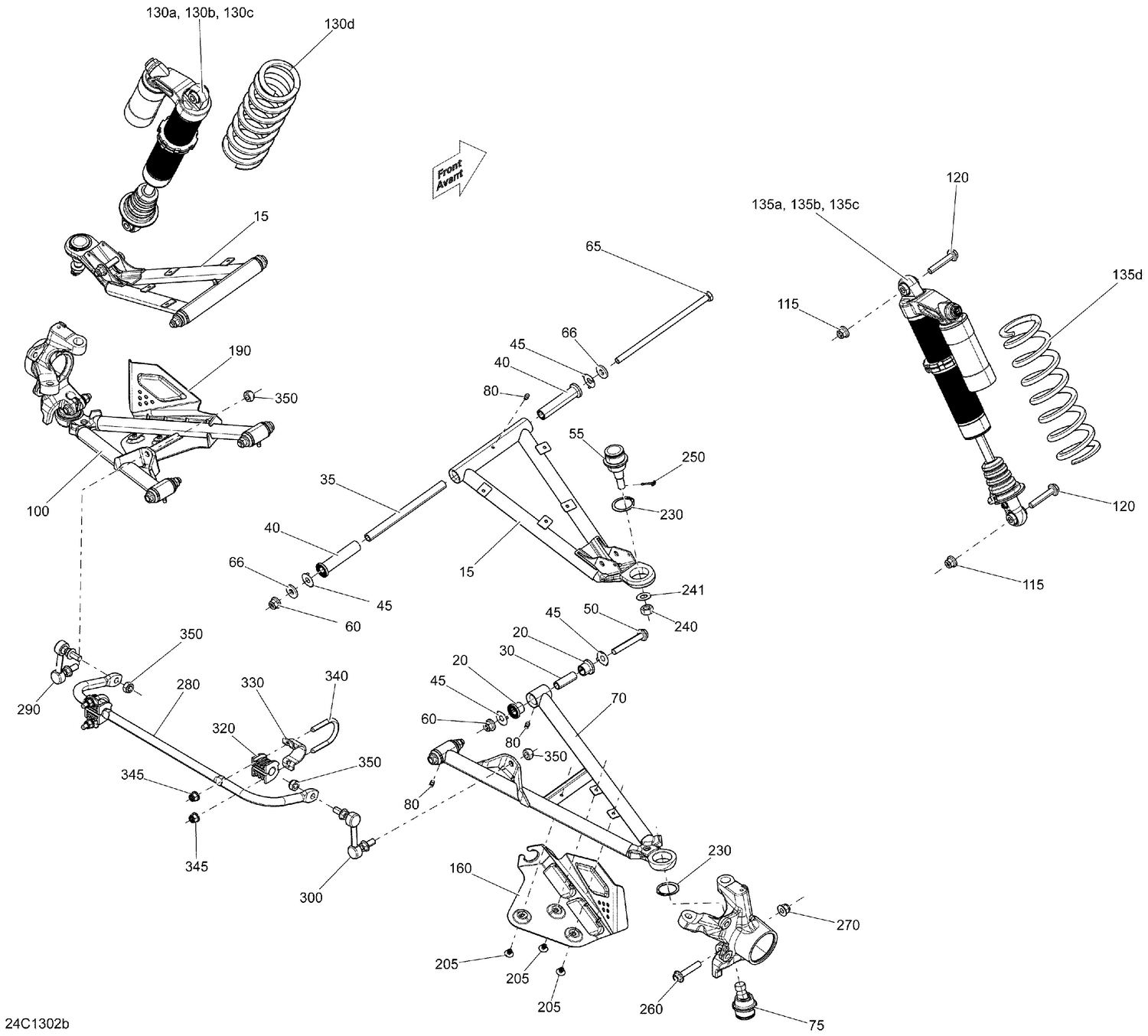

07- Front Suspension X
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 706200796 | Suspension Upper Arm |
| 35 | 706202445 | Bushing This part replaces 706201061. |
| 40 | 706201062 | Cushion |
| 45 | 706201063 | Wear Plate |
| 50 | 207607046 | Hex. Flange Screw M10 X 70 |
| 55 | 706202044 | Ball Joint |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 65 | 250001032 | Hex. Cap Screw M10 X 225 This part replaces 250000510. |
| 66 | 503190439 | Washer |
| 70 | 706200744 | RH Lower Suspension Arm |
| 75 | 706202045 | Ball Joint |
| 80 | 408200700 | Grease Fitting |
| 100 | 706200742 | LH Lower Suspension Arm |
| 115 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 120 | 207605544 | Hex. Flange Screw M10 X 55 |
| 130b | 715900209 | O-Ring Bushing |
| 130c | 715900210 | Interior Bushing |
| 135b | 715900209 | O-Ring Bushing |
| 135c | 715900210 | Interior Bushing |
| 160 | 706201670 | RH Protector |
| 190 | 706201669 | LH Protector |
| 205 | 293150104 | Pop Rivet 3/16" |
| 230 | 293370035 | Circlip |
| 240 | 250100099 | Nut M12 |
| 241 | 706200281 | Hardened Washer |
| 250 | 211400017 | Cotter Pin |
| 260 | 207605044 | Hex. Flange Screw M10 X 50 |
| 270 | 233201414 | Hex. Flange Elastic Nut M10 |
| 280 | 706202560 | Sway Bar Ass'y This part replaces 706200865. |
| 290 | 706202536 | LH Sway Bar Link This part replaces 706200894. |
| 300 | 706202537 | RH Sway Bar Link This part replaces 706201032. |
| 320 | 706201086 | Stabilizer Bushing |
| 330 | 706201087 | Clamp |
| 340 | 506060600 | U-clamp |
| 345 | 233281414 | Hex. Flange Elastic Nut M8 |
