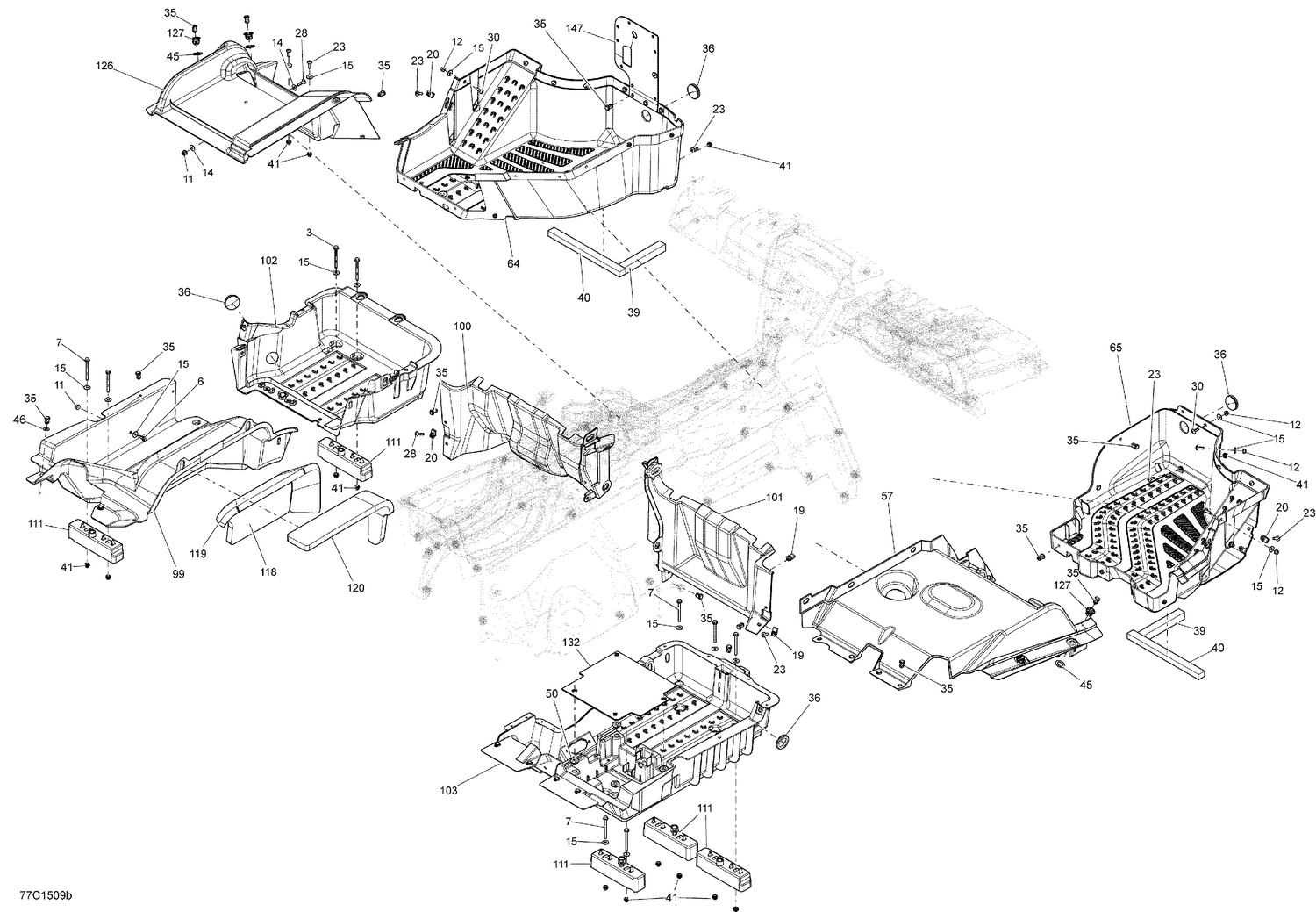

09- Cab Interior Bottom Pan_77C1509b
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 207667056 | Hex. Flange Screw M6 X 70 |
| 6 | 207662054 | Hex. Flange Screw M6 X 20 |
| 7 | 207667056 | Hex. Flange Screw M6 X 70 |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 233261494 | Hex. Flange Elastic Nut M6 |
| 14 | 234062410 | Flat Washer 6 mm |
| 15 | 234062670 | Stainless Steel Flat Washer |
| 19 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 20 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 23 | 250000722 | Torx Screw M6 X 20 |
| 28 | 250000284 | Torx Screw M6 x 25 |
| 30 | 250000712 | Torx Screw M6 X 20 |
| 35 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 36 | 293250242 | Rubber Cover |
| 39 | 293250319 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 40 | 293250319 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 41 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 45 | 503189273 | Washer |
| 46 | 506151252 | Washer |
| 50 | 705003264 | Grommet |
| 57 | 707900006 | RH Under Seat Plate |
| 64 | 707900022 | LH Lower Floor |
| 65 | 707900023 | RH Lower Floor |
| 99 | 707900081 | LH REAR BOTTOM PAN - Call your local BRP dealership |
| 100 | 707900082 | LH Rear Upper Floor Cover |
| 101 | 707900083 | Seat Cover |
| 102 | 707900084 | LH MID FLOOR - Call your local BRP dealership |
| 103 | 707900670 | RH Lower Rear Floor This part replaces 707900231. |
| 111 | 707900099 | Support Plate |
| 118 | 707900116 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 119 | 707900117 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 120 | 707900118 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 126 | 707900130 | Under Seat Cover |
| 127 | 707900133 | Insert |
| 132 | 707900163 | Battery Cover |
