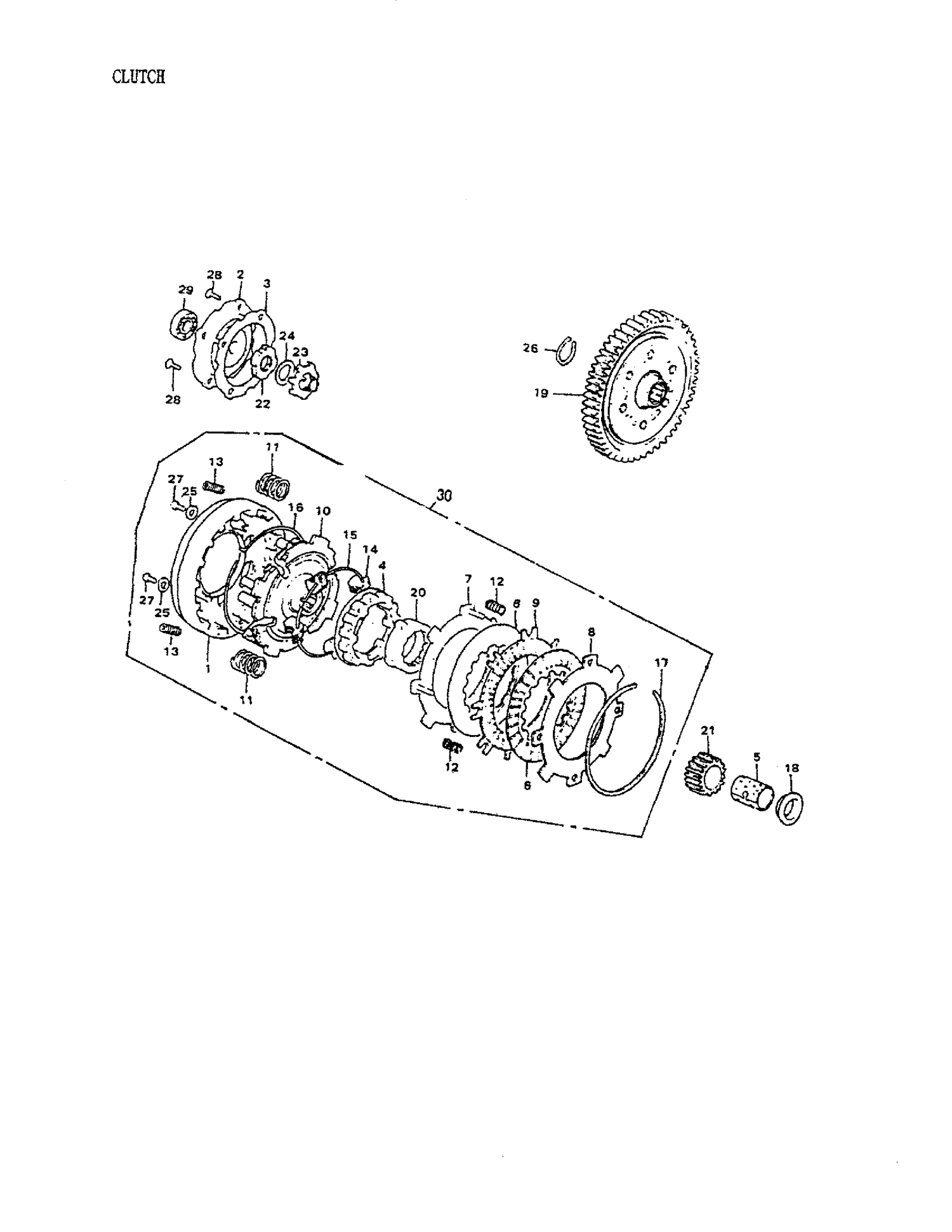

05- Clutch 172a-06
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A22100152000 | Clutch Outer Comp. |
| 2 | A22111152000 | Clutch Outer Cover |
| 3 | A22119152000 | CLUTCH OUTER COVER GASKET - Call your local BRP dealership |
| 4 | A22121152000 | Clutch Center |
| 5 | A22125152000 | Clutch Center Guide |
| 6 | A22201152000 | CLUTCH FRICTION DISK A - Call your local BRP dealership |
| 7 | A22311152000 | Clutch Plate A |
| 8 | A22321152000 | CLUTCH PLATE B - Call your local BRP dealership |
| 9 | A22211152000 | Clutch Friction Disk B |
| 10 | A22350152000 | Drive Plate |
| 11 | A22401152000 | Clutch Spring |
| 12 | A22411152000 | Clutch Free Spring |
| 13 | A22421152000 | Clutch Damper Spring |
| 14 | A22531152000 | Clutch Weight |
| 15 | A22535152000 | Clutch Weight Center Ring |
| 16 | A22536152000 | Clutch Weight Scropper Ring |
| 17 | A22901152000 | Set Ring |
| 18 | A96401172808 | Collar |
| 19 | A23110152000 | PRIMARY DRIVE GEAR - Call your local BRP dealership |
| 20 | A23112152000 | Driven Gear Outer |
| 21 | A23121152000 | Primary Drive Gear |
| 22 | A9407114000 | Spaner Nut M14 |
| 23 | A15451152000 | Lock Washer M14 |
| 24 | A94113142412 | Lock Washer |
| 25 | A941010514015 | Stopper Washer |
| 26 | A945111700S | External CirClip |
| 27 | A9350005010 | Pan Head Phillips Bolt M5 X 10 |
| 29 | A9610060000 | RADIAL BALL BEARING, 6000 - Call your local BRP dealership |
