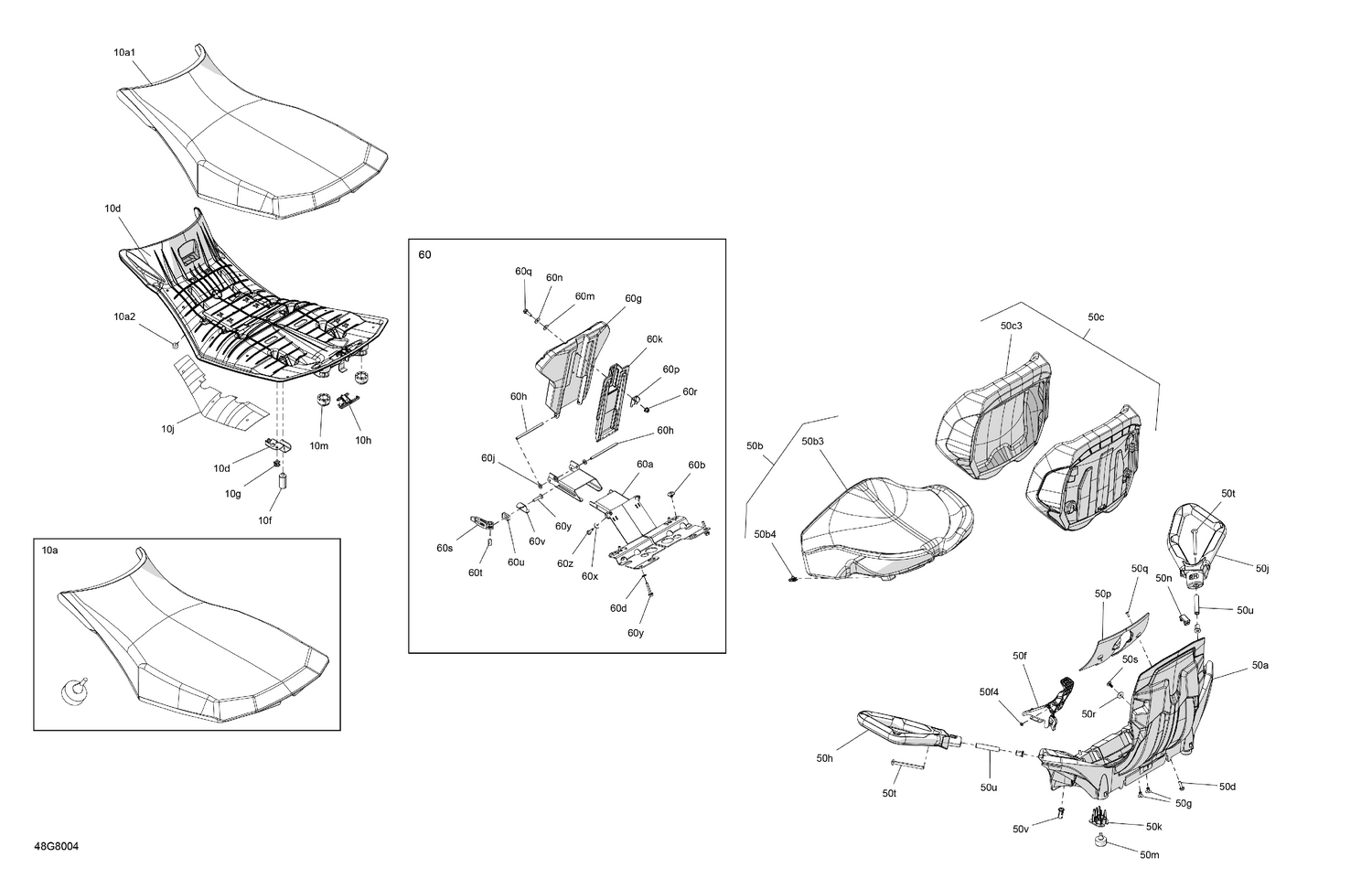

07- Body - Seat
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 605156558 | Seat Cover |
| 10a2 | 708000759 | Rubber Stopper |
| 10d | 510005988 | Support Rear Cushion |
| 10f | 605456546 | RUBBER DAMPER - Call your local BRP dealership |
| 10g | 293150067 | Rivet |
| 10h | 708000909 | Latch |
| 10j | 705005761 | HEAT SHIELD - Call your local BRP dealership |
| 10m | 708000760 | Bumper Rubber |
| 50a | 708002574 | Seat Base |
| 50b3 | 708001290 | Black, Seat Cover |
| 50b4 | 250100198 | Panel Nut M6 X 1.0 |
| 50c3 | 708001841 | Back Rest Cover |
| 50d | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 50f4 | 234051410 | Flat Washer M5 |
| 50g | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 50h | 703500806 | LH Passenger Seat Handle Kit |
| 50j | 703500807 | RH Passenger Seat Handle Kit |
| 50k | 708001483 | Seat Support |
| 50m | 708000758 | Rubber Stopper |
| 50n | 708001511 | Insert |
| 50p | 708001512 | Cap |
| 50q | 250000577 | Torx Truss Screw K40 X 12 |
| 50r | 224060201 | Flat Washer |
| 50s | 250000546 | Oval Head Torx Screw K60 X 16 |
| 50t | 250000806 | Torx Truss M8 X 90 |
| 50u | 705009248 | Sleeve |
| 50v | 710003910 | Pilot Lamp Cap |
| 60a | 708001796 | Support |
| 60b | 605452114 | Plug |
| 60d | 732610072 | Push Nut |
| 60g | 708001794 | Backrest |
| 60h | 605456662 | Pin |
| 60j | 36084 | Safety Washer |
| 60k | 708001798 | Sliding Cover |
| 60m | 250200024 | Rubber Washer 5 mm |
| 60n | 20117 | Washer |
| 60p | 708001799 | Sliding Guide |
| 60q | 207662054 | Hex. Flange Screw M6 X 20 |
| 60r | 233261494 | Hex. Flange Elastic Nut M6 |
| 60s | 506152646 | LEVER - Call your local BRP dealership |
| 60t | 506152647 | Lever Pin |
| 60u | 506152706 | Compression Block |
| 60v | 708301660 | Lever Guide |
| 60x | 250200025 | Washer M5 |
| 60y | 250000634 | Stainless Torx Screw M6 X 30 |
