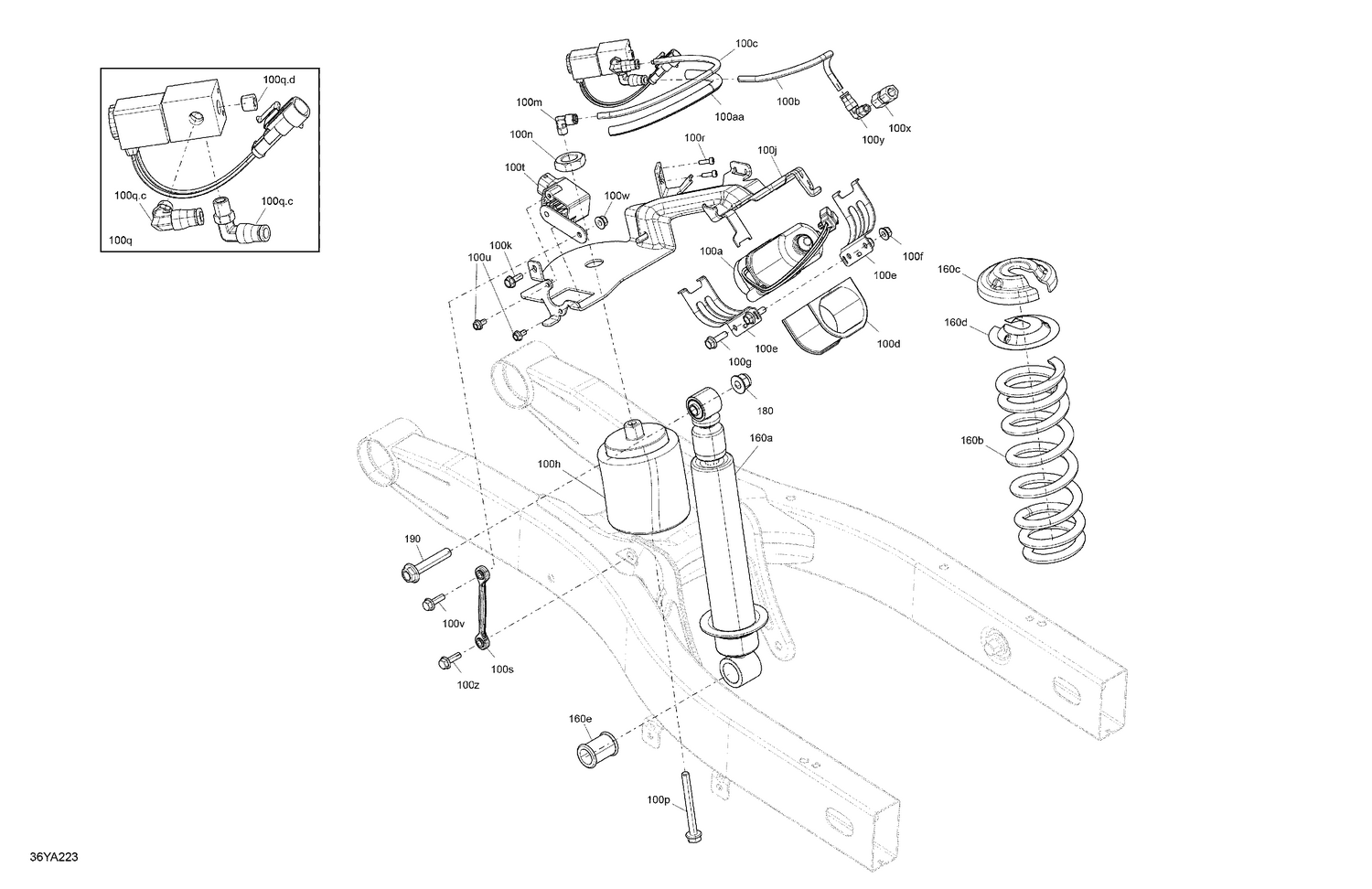

05- Suspension - Rear Shocks
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 706001349 | Compressor |
| 100aa | 219704425 | Tubing 6 Mm 3000Mm Long |
| 100b | 219704415 | Hose 4.32Mm 3000Mm Long |
| 100c | 706001211 | Hose 1/4 |
| 100d | 706000631 | Compressor Isolator |
| 100e | 503193103 | Compressor Bracket |
| 100f | 233061414 | Hex. Flange Nut M6 |
| 100g | 207662044 | Hex. Flange Screw M6 X 20 |
| 100h | 219800175 | Air Damper Kit |
| 100j | 706001767 | Plate |
| 100k | 210261050 | Hex. Forming Screw M6 X 10 |
| 100m | 706001018 | Elbow 90° |
| 100n | 250100119 | Jam Nut M20 |
| 100p | 207687544 | Hex. Flange Screw M8 X 75 |
| 100r | 205041254 | Socket Head Screw M4 X 12 |
| 100s | 706202505 | Tie Rod |
| 100t | 710004600 | Position Sensor |
| 100u | 207551044 | Hex. Flange Screw M5 X 10 |
| 100v | 207662044 | Hex. Flange Screw M6 X 20 |
| 100w | 233061414 | Hex. Flange Nut M6 |
| 100x | 706000831 | Ckeck Valve |
| 100y | 706000928 | Elbow 90° |
| 100z | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 160a | 706001706 | Shock |
| 160b | 706001707 | Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160e | 503191609 | Urethane Cushion |
| 180 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
