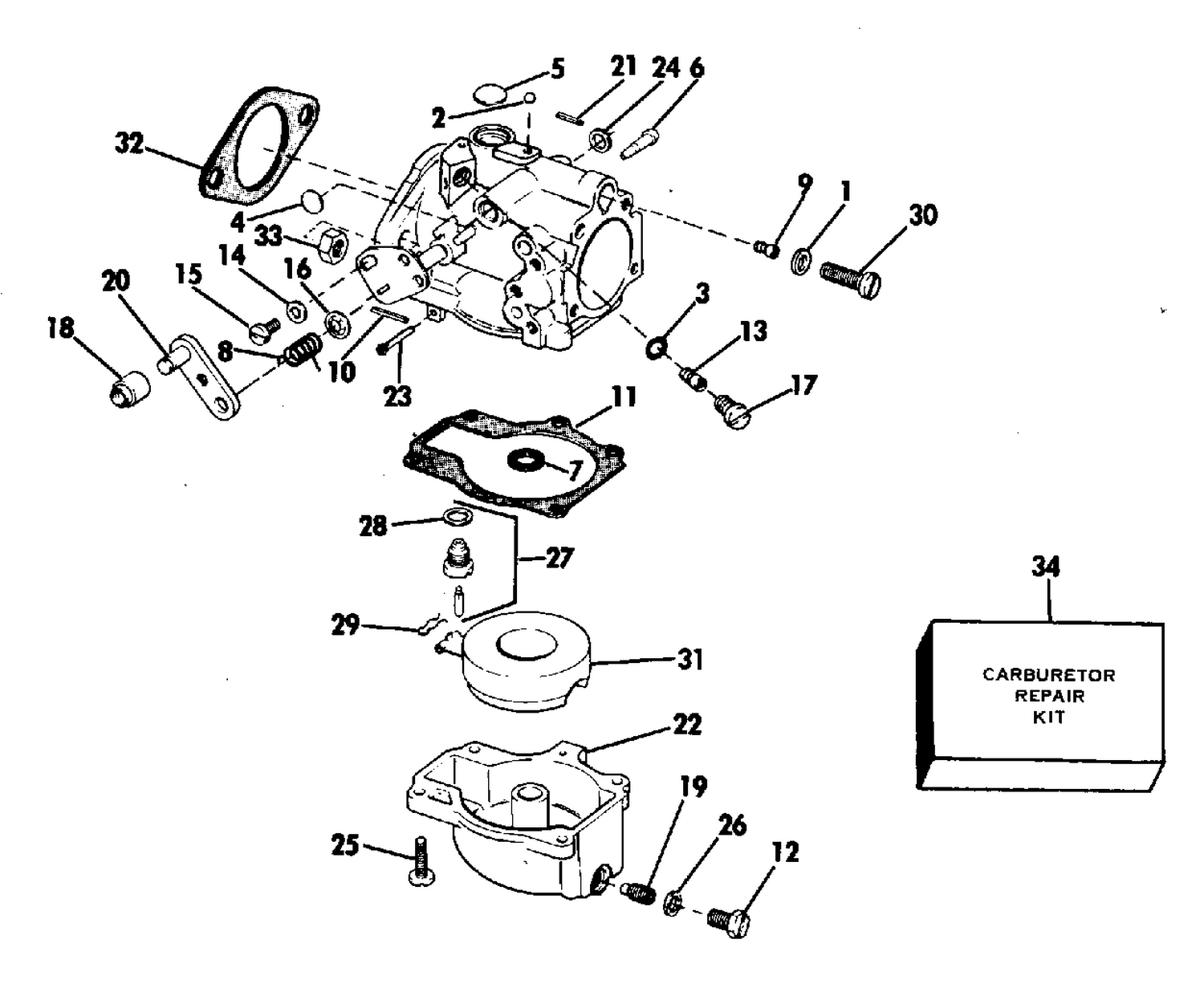

CARBURETOR
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0318832 | O-RING, No. 35 |
| 10 | 0307901 | ROLL PIN |
| 12 | 0307832 | PLUG, Screw |
| 13 | 0327342 | ORIFICE #46, 250 |
| 17 | 0317501 | SCREW PLUG, Orifice |
| 29 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 32 | 0325092 | GASKET |
| 33 | 0316355 | BUT, Carburetor mounting |
| 0393192 | 0393192 | CARB ASSY.,Upper |
| 0393193 | 0393193 | CARB ASSY.,Lower |
