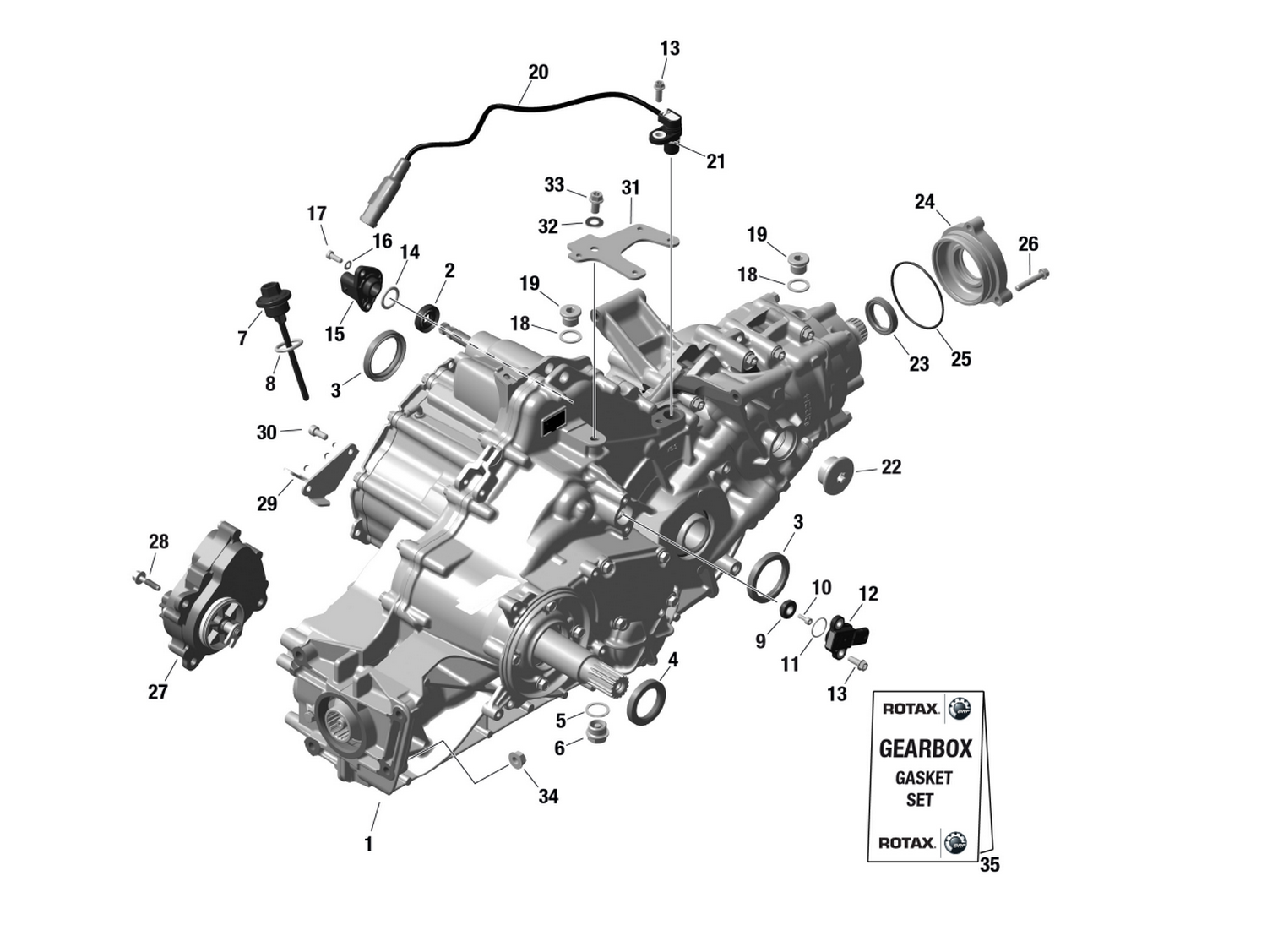

01- ROTAX - Gearbox Assy and Drive Shaft - 686 779 - Hua Yong - 1st Generation
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 420840278 | Drain Plug M18 X 1.5 |
| 7 | 420256804 | Oil Dipstick |
| 9 | 420256000 | Magnet |
| 10 | 420440292 | Allen Screw M4 X12 |
| 12 | 420265122 | Angle Of Rotation Sensor |
| 13 | 420440162 | Torx Flange Screw M6 X 16 |
| 15 | 420427563 | Cover |
| 16 | 420927574 | Washer 5.3 |
| 17 | 420240150 | Allen Screw M5 X 14 |
| 18 | 420430624 | Oil Pressure Regulator Gasket Ring |
| 19 | 420240234 | Plug Screw M16 X 1.5 |
| 20 | 420265727 | Camshft Position Sensor Ass'y This part replaces 420265723. |
| 21 | 420230451 | O-Ring |
| 22 | 420440162 | Torx Flange Screw M6 X 16 |
| 23 | 420230423 | Oil Seal |
| 24 | 420280619 | Bearing Cover |
| 25 | 420950865 | O-Ring |
| 26 | 420440270 | FLANGED TORX SCREW M6 X 35 - Call your local BRP dealership |
| 27 | 715900613 | Actuator Ass'y 4 pins This part replaces 420891088. |
| 28 | 420441952 | Torx Flange Screw M6 X 25 |
| 29 | 420851548 | Support |
| 30 | 420840394 | Allen Screw M6X14 |
| 31 | 420651046 | Support Plate |
| 32 | 420250315 | Flat Washer 8.4 mm |
| 33 | 420440854 | Torx Flange Screw M8 X 16 |
| 34 | 420842611 | Hexagonal Nut M8 |
