Parts Catalog

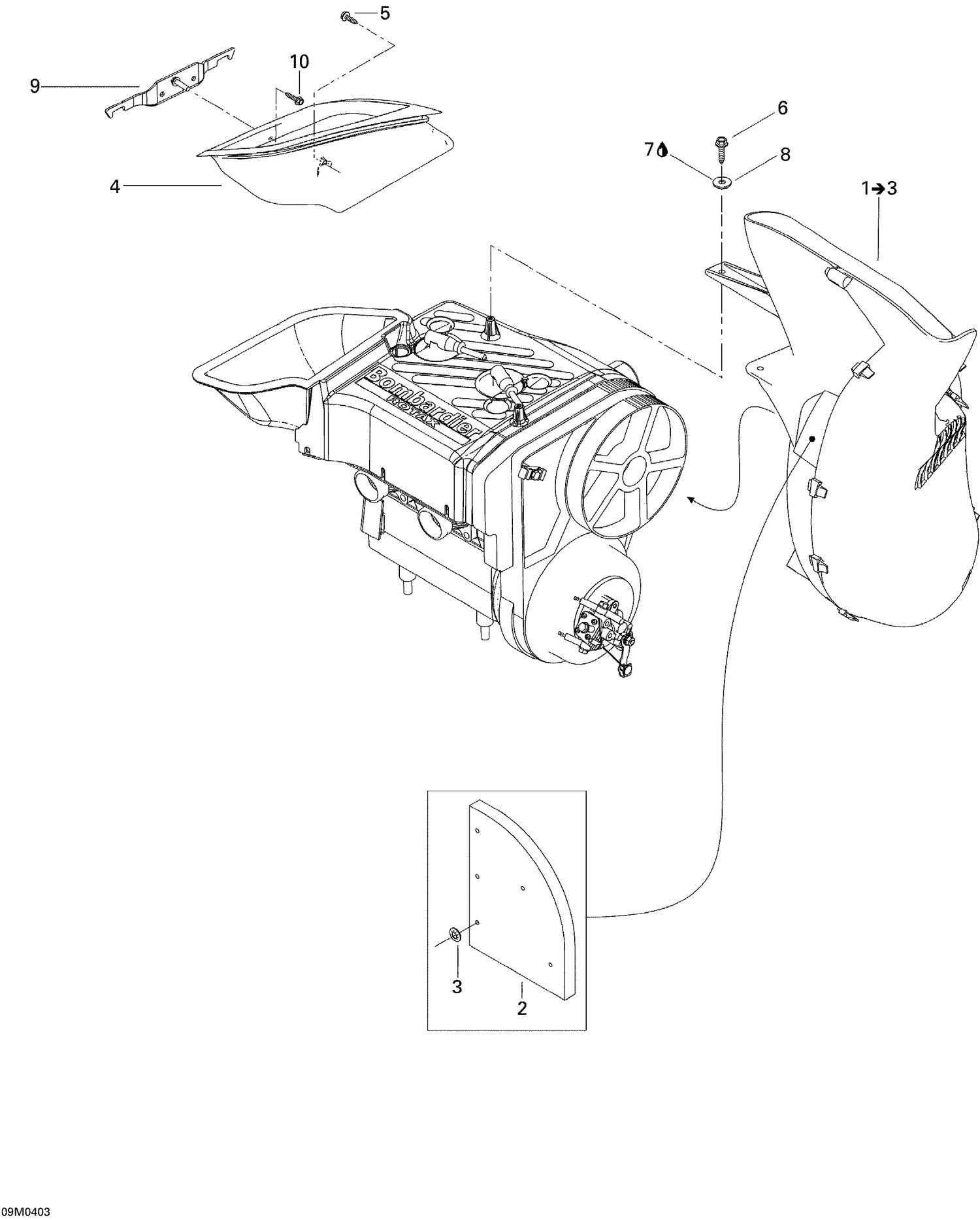

01- Cooling System SUMMIT (550F)

Parts (8)

Ref	Part Number	Description
2	509000152	Foam
3	389804300	Push Nut
4	509000118	Outlet Duct
5	250000068	Hex. Tapping Screw #8 X 5/8"
6	241151640	Hex. Flange Screw K50 X 2.24 X 16
7	413408300	Loctite, Black Max, 3 ml
8	391301600	Washer
9	509000164	Support
