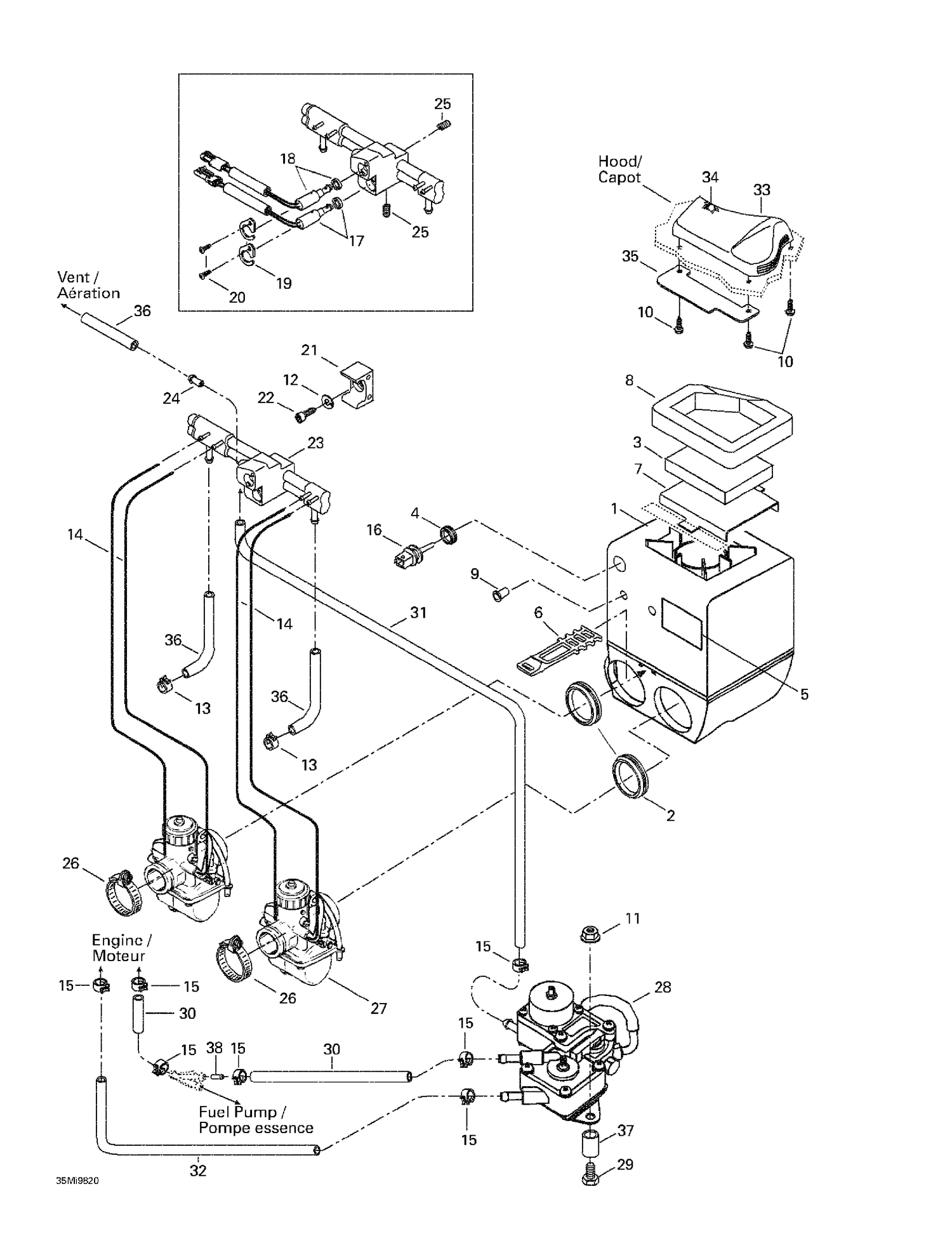

02- Air Intake System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 570049000 | Intake Adaptor VM 40 |
| 3 | 415014800 | Air Filter |
| 4 | 570065500 | GROMMET - Call your local BRP dealership |
| 5 | 414161500 | Warning Decal |
| 6 | 570069700 | LATCH - Call your local BRP dealership |
| 7 | 517283900 | Grill Intake |
| 8 | 415125500 | Lower Foam |
| 9 | 732610057 | JACK NUT M6 - Call your local BRP dealership |
| 10 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 11 | 233251434 | Flange Elastic Nut M5 This part replaces 228751045. |
| 12 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 13 | 414554800 | Spring Clamp |
| 14 | 404161814 | Hose |
| 15 | 414415200 | Spring Clamp |
| 16 | 270600000 | AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 17 | 415061400 | Soleno‹d Valve (Female) |
| 18 | 415061500 | Soleno‹d Valve (Male) |
| 19 | 415061600 | SOLENOID LOCK - Call your local BRP dealership |
| 20 | 404159300 | SCREW - Call your local BRP dealership |
| 21 | 572096100 | Support |
| 22 | 222861613 | Machined Screw M6 x 16 |
| 24 | 404159700 | Air Jet |
| 25 | 206260844 | Socket Set Screw M6 X 8 This part replaces 222560865. |
| 26 | 414532800 | Collar |
| 27 | 403137600 | Carburetor VM 44-34 (PTO) |
| 28 | 415109000 | Air Pump |
| 29 | 207053044 | Hex. Screw M5 X 30 This part replaces 222053065. |
| 30 | 219704549 | Hose This part replaces 219704439. |
| 31 | 270000306 | Hose 4.5 mm |
| 32 | 219704549 | Hose This part replaces 219704439. |
| 33 | 572077900 | INTAKE COVER - Call your local BRP dealership |
| 34 | 414972600 | Air Filter |
| 35 | 517292800 | Deflector |
| 36 | 219704410 | Polyurethane Hose 10000Mm Long |
| 37 | 512058934 | Spacer |
| 403137700 | Carburateur | VM 44-35 (MAG) 403137700 |
| 403137700 | Carburetor | VM 44-35 (MAG) 403137700 |
