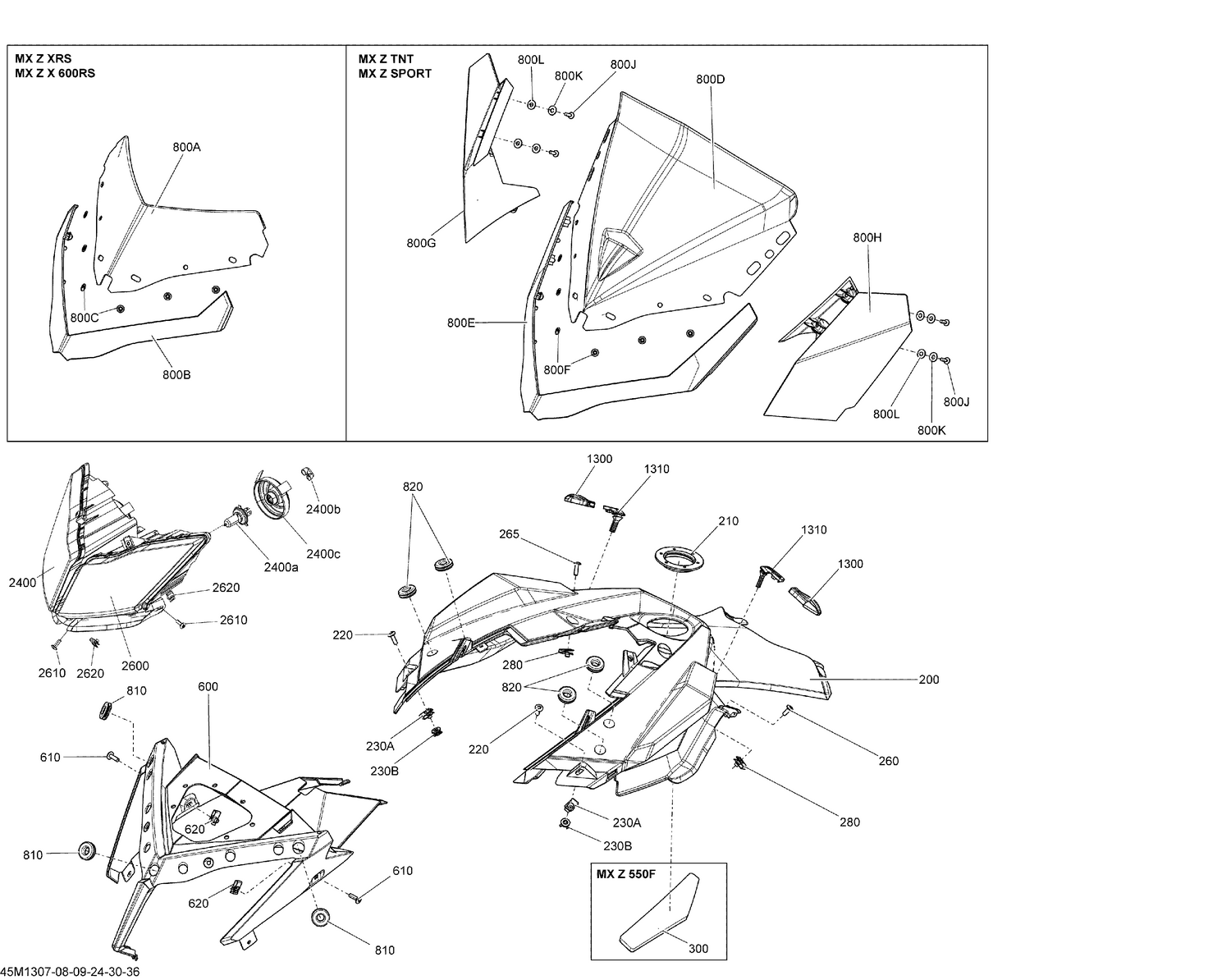

| Ref | Part Number | Description |
|---|
| 200 |
517303924 |
CONSOLE B-160 - Call your local BRP dealership |
| 210 |
517304518 |
Console Nut |
| 220 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 230A |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 230B |
XXX |
Not Available As Spare Parts |
| 260 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 265 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 280 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 300 |
XXX |
Not Available As Spare Parts |
| 600 |
517305030 |
GAUGE SUPPORT - Call your local BRP dealership |
| 610 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 620 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 800B |
XXX |
Not Available As Spare Parts |
| 800C |
XXX |
Not Available As Spare Parts |
| 800E |
517303607 |
Windshield Support |
| 800F |
732610072 |
Push Nut |
| 800G |
517303604 |
RH Air Deflector |
| 800H |
517303605 |
LH Air Deflector |
| 800J |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 800K |
250200025 |
Washer M5 |
| 800L |
250200024 |
Rubber Washer 5 mm |
| 810 |
517303756 |
Grommet |
| 820 |
517303756 |
Grommet |
| 1310 |
517303981 |
Panel Latch |
| 2400 |
517304194 |
RH Headlamp Ass'y |
| 2400a |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2400b |
515176498 |
Cap |
| 2400c |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 2600 |
517304195 |
LH Headlamp Ass'y |
| 2610 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
