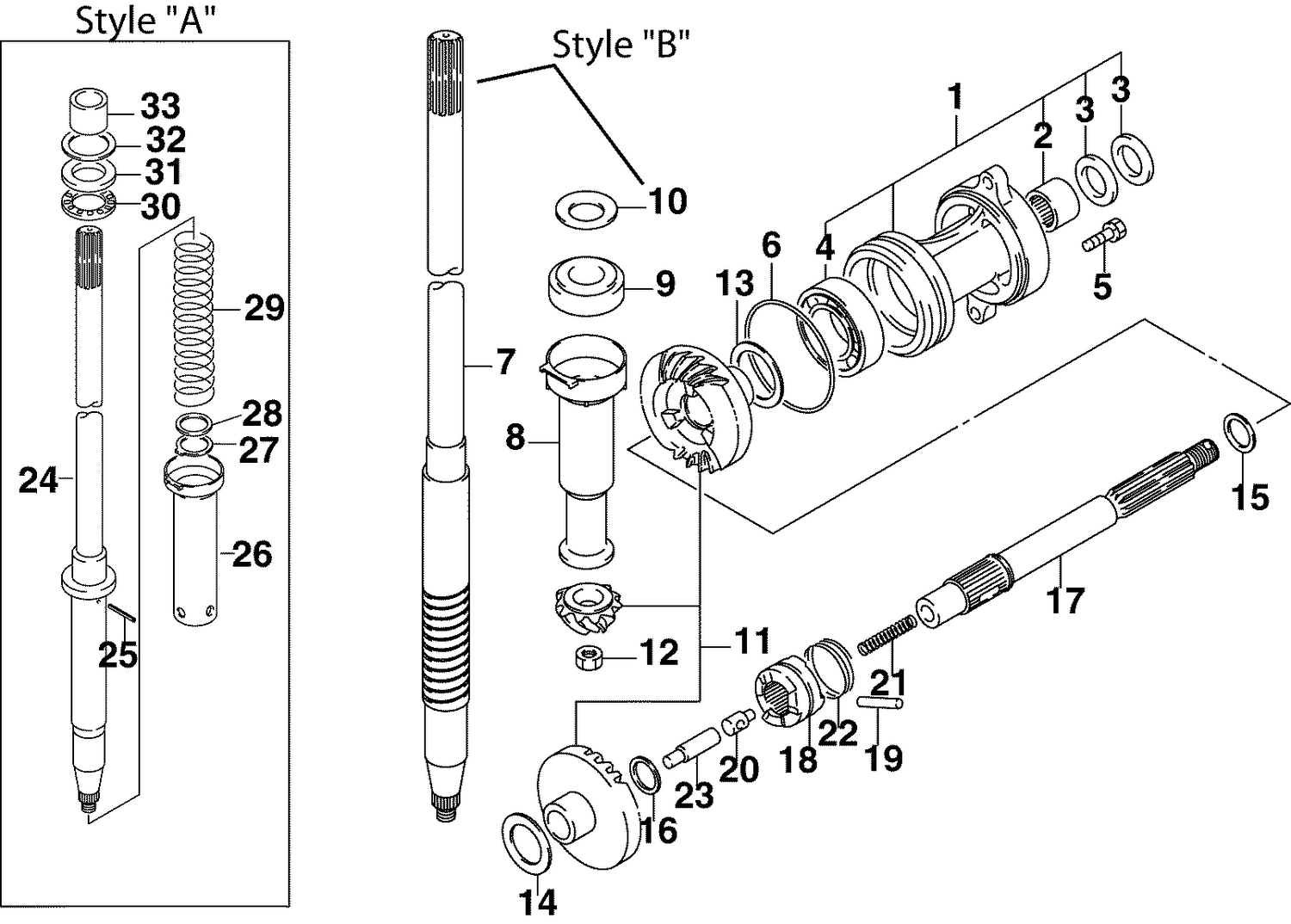

TRANSMISSION
Parts (30)
| Ref | Part Number | Description |
|---|
| 1 |
5032801 |
HOUSING, PROP SHAFT BRG |
| 5 |
5031216 |
BOLT |
| 6 |
5031263 |
O RING |
| 11 |
5031545 |
GEAR & PINION ASSY |
| 12 |
5030421 |
NUT |
| 13 |
5031242 |
SHIM (0.6mm) - Reverse |
| 13 |
5031243 |
SHIM (0.7mm) |
| 13 |
5031244 |
SHIM (0.9mm) |
| 13 |
5031695 |
SHIM (0.5mm) |
| 13 |
5031696 |
SHIM (0.8mm) |
| 13 |
5031697 |
SHIM (1.0mm) - Reverse |
| 14 |
5031237 |
SHIM (0.5mm) |
| 14 |
5031238 |
SHIM (0.6mm) |
| 14 |
5031239 |
SHIM (0.7mm) |
| 14 |
5031240 |
SHIM (0.8mm) |
| 14 |
5031241 |
SHIM (0.9mm) |
| 15 |
5031226 |
THRUST WASHER, (1.8mm) |
| 15 |
5031227 |
THRUST WASHER, (1.9mm) |
| 15 |
5031228 |
THRUST WASHER, (2.0mm) |
| 15 |
5031229 |
THRUST WASHER, (2.1mm) |
| 15 |
5031230 |
THRUST WASHER, (2.2mm) |
| 15 |
5031231 |
THRUST WASHER, (2.3mm) |
| 16 |
5031698 |
THRUST WASHER, (2.0mm) |
| 16 |
5031699 |
THRUST WASHER, (2.2mm) |
| 17 |
5031546 |
PROPELLER SHAFT ASSY. |
| 19 |
5031245 |
PIN, Clutch dog |
| 20 |
5031251 |
PIN, PUSH |
| 21 |
5031283 |
SPRING, Push rod |
| 22 |
5031286 |
SPRING, Clutch dog pin |
| 23 |
5031549 |
ROD, Push |
