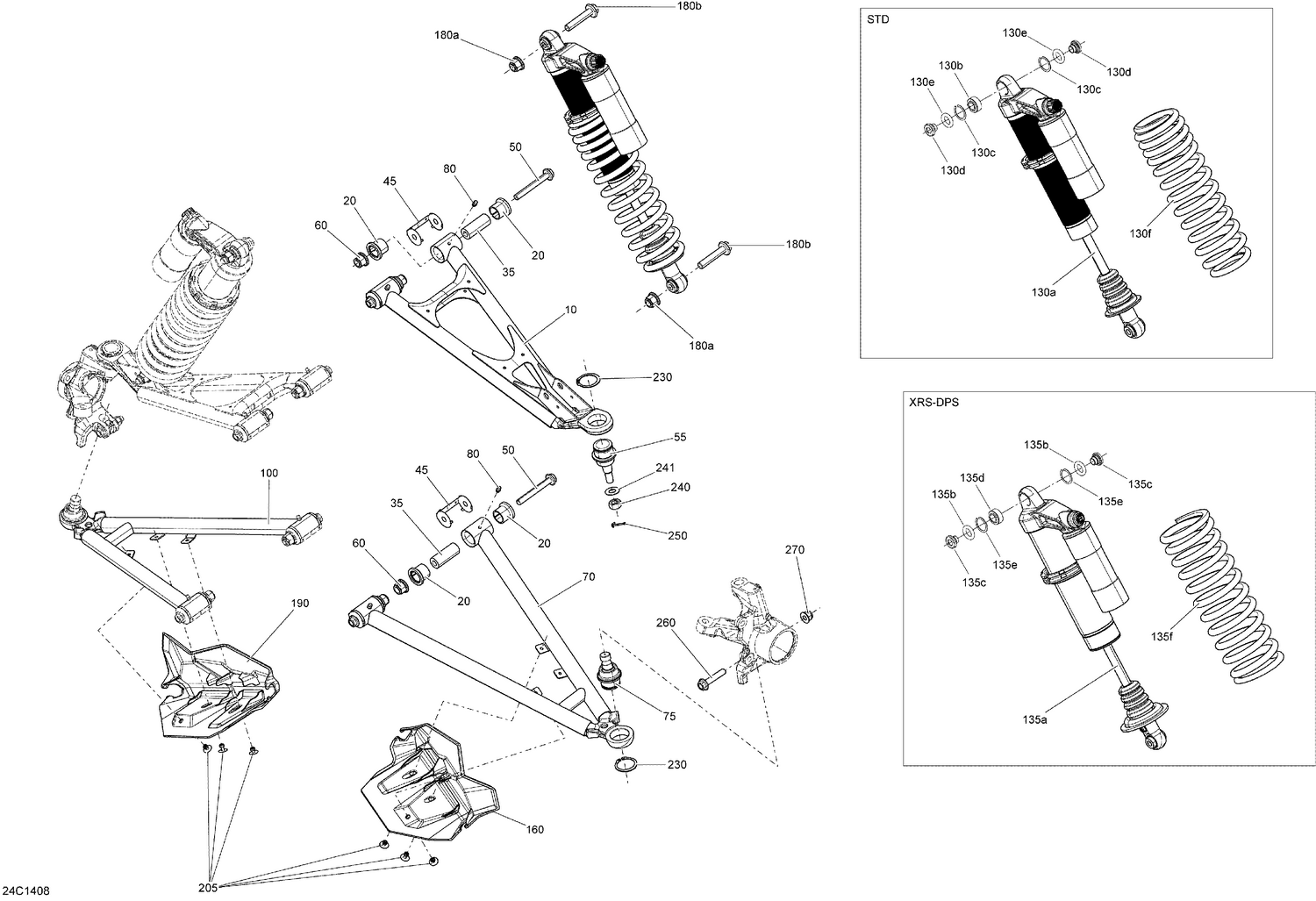

07- Front Suspension
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 706204409 | Suspension Arm Bushing This part replaces 706201659. |
| 35 | 706201590 | Sleeve |
| 45 | 706201660 | Wear Plate |
| 50 | 207608046 | Hex Flange Screw M10 X 80 |
| 55 | 706202044 | Ball Joint |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 |
| 70 | 706201862 | RH Front Lower Arm |
| 75 | 706202045 | Ball Joint |
| 80 | 408200700 | Grease Fitting |
| 100 | 706201861 | LH Front Lower Arm |
| 160 | 706202809 | RH Joint Protector This part replaces 706201830. |
| 180a | 233221416 | Elastic Flange Nut M12 |
| 180b | 207626046 | Hex. Flange Screw M12 X 60 |
| 190 | 706202808 | LH Joint Protector This part replaces 706201829. |
| 205 | 293150104 | Pop Rivet 3/16" |
| 230 | 293370035 | Circlip |
| 240 | 250100099 | Nut M12 |
| 241 | 706200281 | Hardened Washer This part replaces 250200086. |
| 250 | 211400017 | Cotter Pin |
| 260 | 207605044 | Hex. Flange Screw M10 X 50 |
