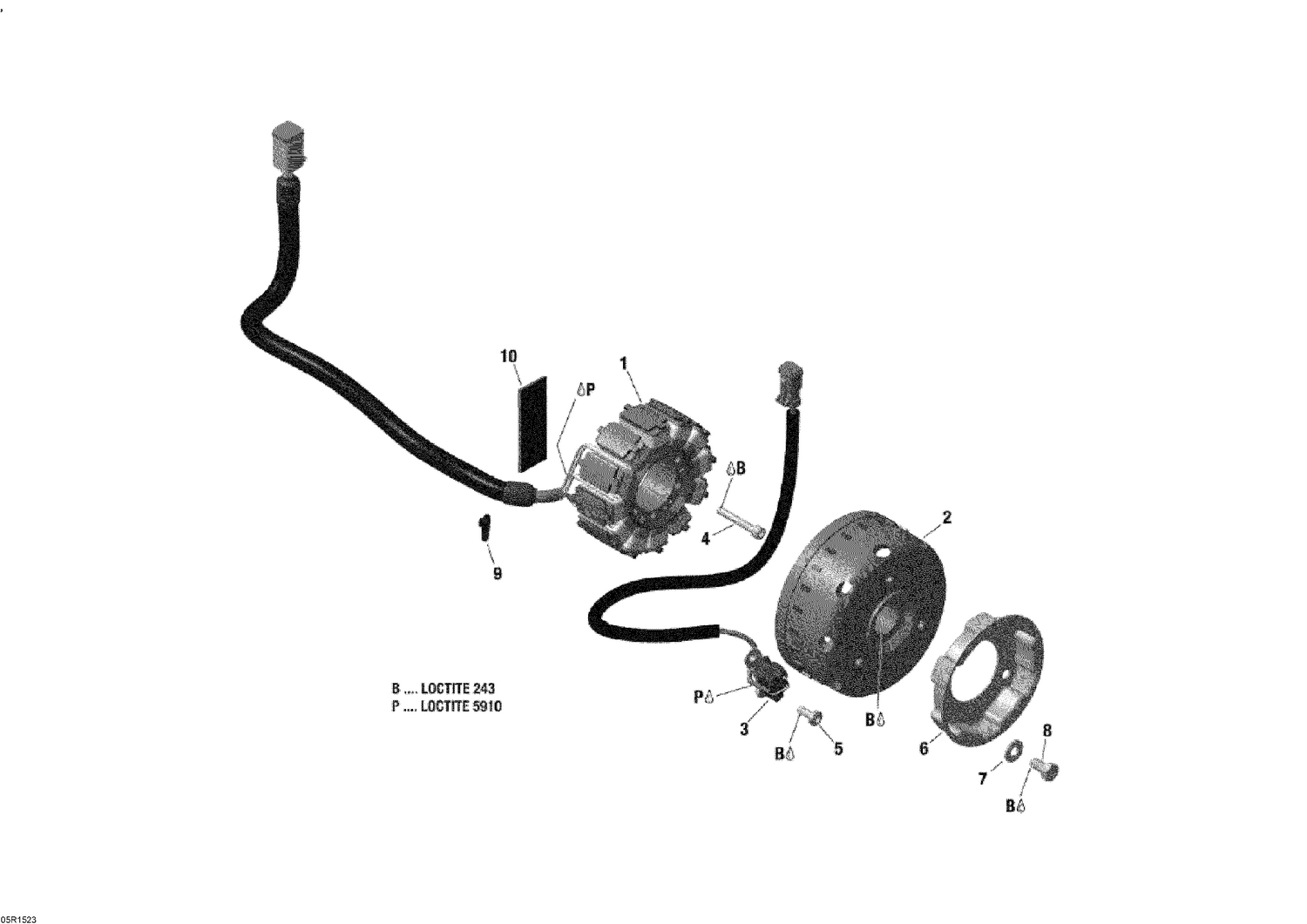

03- Magneto

03- Magneto

Parts (6)

RefPart NumberDescription
B 293800060 Loctite 243, 10 ml
1 420665435 Stator Ass´y, 55V 1300W
2 420665442 Flywheel
3 410922969 Pick-Up Ass'y
9 420866714 Tie Rap 142x3,2 MM
10 420201360 Adhesive Pad, 1.6 mm X 20 mm X 60 mm
