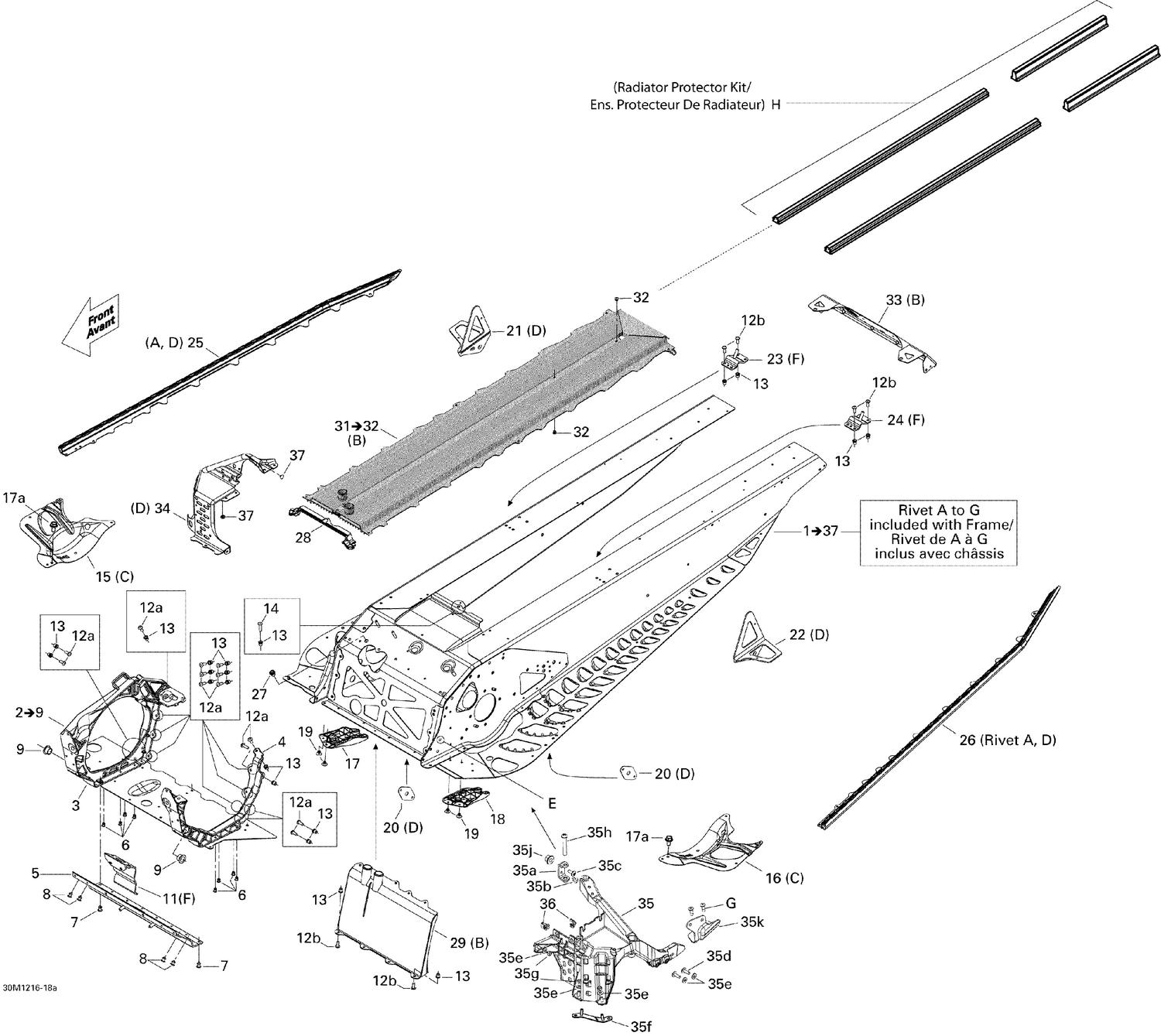

09- Frame LE 120"
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| A | 390402300 | Pop Rivet 3/16" |
| B | 390909200 | Avex Rivet |
| C | 390909100 | Avex Rivet |
| D | 293150144 | Stavex Rivet |
| E | 293150146 | Henrob Rivet |
| F | 293150174 | Hemlock Rivet, 6.4 mm |
| G | 293150194 | Interlock Rivet 3/16'' |
| 3 | 518326328 | RH Side Member |
| 4 | 518326330 | LH Side Member |
| 5 | 518326198 | Front Member |
| 6 | 293150144 | Stavex Rivet |
| 7 | 293150120 | Hemlock Rivet 6.5 mm |
| 8 | 293150119 | Hemlock Rivet, 6.5 mm |
| 9 | 505072690 | Leg Bushing |
| 11 | 518325371 | MAG Engine Support |
| 12a | 207662044 | Hex. Flange Screw M6 X 20 |
| 12b | 207661644 | Hex. Flange Screw M6 X 16 |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 14 | 207662044 | Hex. Flange Screw M6 X 20 |
| 15 | 518324874 | RH Reinforcement |
| 16 | 518324875 | LH Reinforcement |
| 17 | 518325782 | RH Deflector, Black Polypropylene |
| 17a | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 18 | 518325783 | LH Deflector, Black Polypropylene |
| 19 | 293150104 | Pop Rivet 3/16" |
| 20 | 518326647 | Reinforcement Plate |
| 21 | 518324885 | RH Slide Bracket |
| 22 | 518324886 | LH Slide Bracket |
| 23 | 518325973 | RH Rear Base |
| 24 | 518325974 | LH Rear Base |
| 25 | 518324812 | RH Roller |
| 26 | 518324813 | LH Roller |
| 27 | 293450275 | Insert This part replaces 415107300. |
| 28 | 518326656 | Seal |
| 29 | 518326489 | FRONT RADIATOR ASS'Y - Call your local BRP dealership |
| 32 | 293150144 | Stavex Rivet |
| 33 | 518327105 | Rear Cap This part replaces 518325421. |
| 34 | 518328938 | RH Stirup This part replaces 518326216. |
| 35 | 518326820 | LH Stirup |
| 35a | 518326961 | U-Attach |
| 35b | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 35c | 250000534 | Tork Screw M6 X 16 |
| 35d | 250000536 | Tork Screw M6 X 18 |
| 35e | 250200039 | Flat Washer |
| 35f | 518326986 | Attach |
| 35g | 232561414 | Elastic Stop Nut M6 |
| 35h | 250000535 | Torx Screw M8 X 55 |
| 35j | 233061414 | Hex. Flange Nut M6 |
| 35k | 518326960 | Support |
| 36 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 37 | 293730042 | Full Moon Dart 5 mm |
