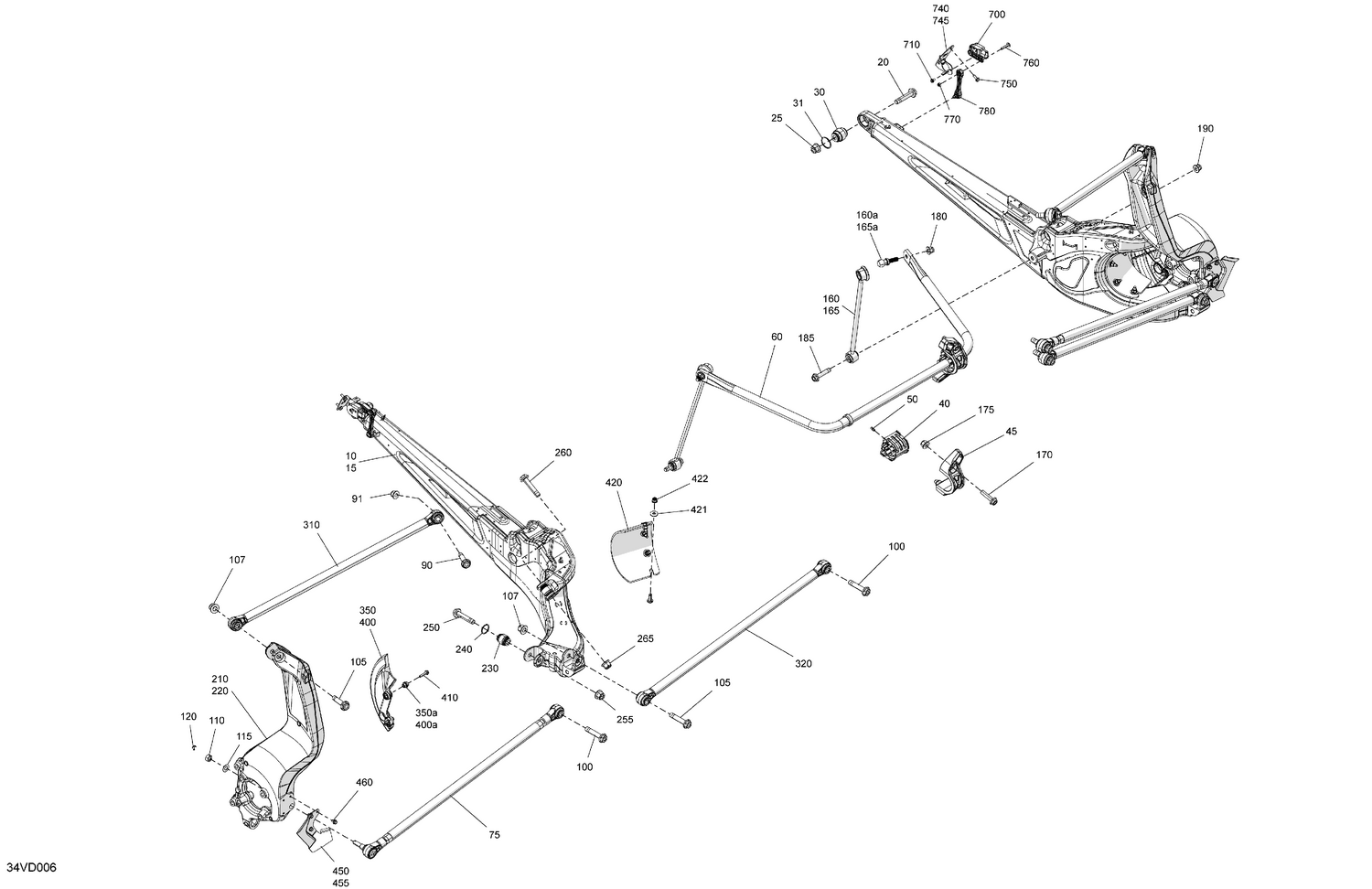

05- Suspension - Rear Components
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706006127 | Deep Black, LH Rear Suspension Arm This part replaces 706005494. |
| 15 | 706006128 | Deep Black, RH Rear Suspension Arm This part replaces 706005495. |
| 20 | 250001175 | Hex. Flange Screw Din.6921 M14X2X70 |
| 25 | 250001166 | Hex. Flange Elastic Nut M14 |
| 30 | 706005389 | Ball Joint |
| 31 | 293370166 | Retaining Ring |
| 40 | 706005418 | Stabilizer Bar Bushing |
| 45 | 706004846 | Clamp |
| 50 | 408200700 | Grease Fitting |
| 60 | 706005757 | Stabilizer Bar Ass'y |
| 75 | 706005030 | Central Suspension Arm Ass'y |
| 90 | 250001175 | Hex. Flange Screw Din.6921 M14X2X70 |
| 91 | 250001166 | Hex. Flange Elastic Nut M14 |
| 100 | 250001175 | Hex. Flange Screw Din.6921 M14X2X70 |
| 105 | 250001175 | Hex. Flange Screw Din.6921 M14X2X70 |
| 107 | 250001166 | Hex. Flange Elastic Nut M14 |
| 110 | 250100239 | Hex Nut M12 |
| 115 | 706200281 | Hardened Washer |
| 120 | 211400017 | Cotter Pin |
| 160a | 706002135 | Radial Joint |
| 165a | 706002135 | Radial Joint |
| 170 | 250001233 | Screw Hex Flange M12 X 50 |
| 175 | 250001195 | Elastic Flange Nut M12 |
| 180 | 250001195 | Elastic Flange Nut M12 |
| 185 | 250000857 | Flange Screw M12 X 60 |
| 190 | 250001195 | Elastic Flange Nut M12 |
| 210 | 715010038 | LH Rear Knuckle Ass'y |
| 220 | 715010039 | RH Rear Knuckle Ass'y |
| 230 | 706004401 | Ball Joint |
| 240 | 293370165 | Retaining Ring |
| 250 | 250001175 | Hex. Flange Screw Din.6921 M14X2X70 |
| 255 | 250001166 | Hex. Flange Elastic Nut M14 |
| 260 | 250001175 | Hex. Flange Screw Din.6921 M14X2X70 |
| 265 | 250001166 | Hex. Flange Elastic Nut M14 |
| 310 | 706005031 | Upper Suspension Arm Ass'y |
| 320 | 706005032 | Lower Suspension Arm Ass'y |
| 350a | 706004805 | Spacer |
| 400a | 706004805 | Spacer |
| 410 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 420 | 706005486 | CV Joint Guard |
| 421 | 234082670 | Stainless Steel Flat Washer |
| 422 | 233281464 | Elastic Flange Nut M8 |
| 450 | 706004703 | LH Deflector |
| 455 | 706004704 | RH Deflector |
| 460 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 700 | 710005235 | Suspension Position Sensor |
| 710 | 207551056 | Hex. Flange Screw M5x10 |
| 740 | 706004723 | LH Rear Sensor Support |
| 745 | 706004724 | RH Rear Sensor Support |
| 750 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 760 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 770 | 232561494 | Elastic Stop Nut M6 |
