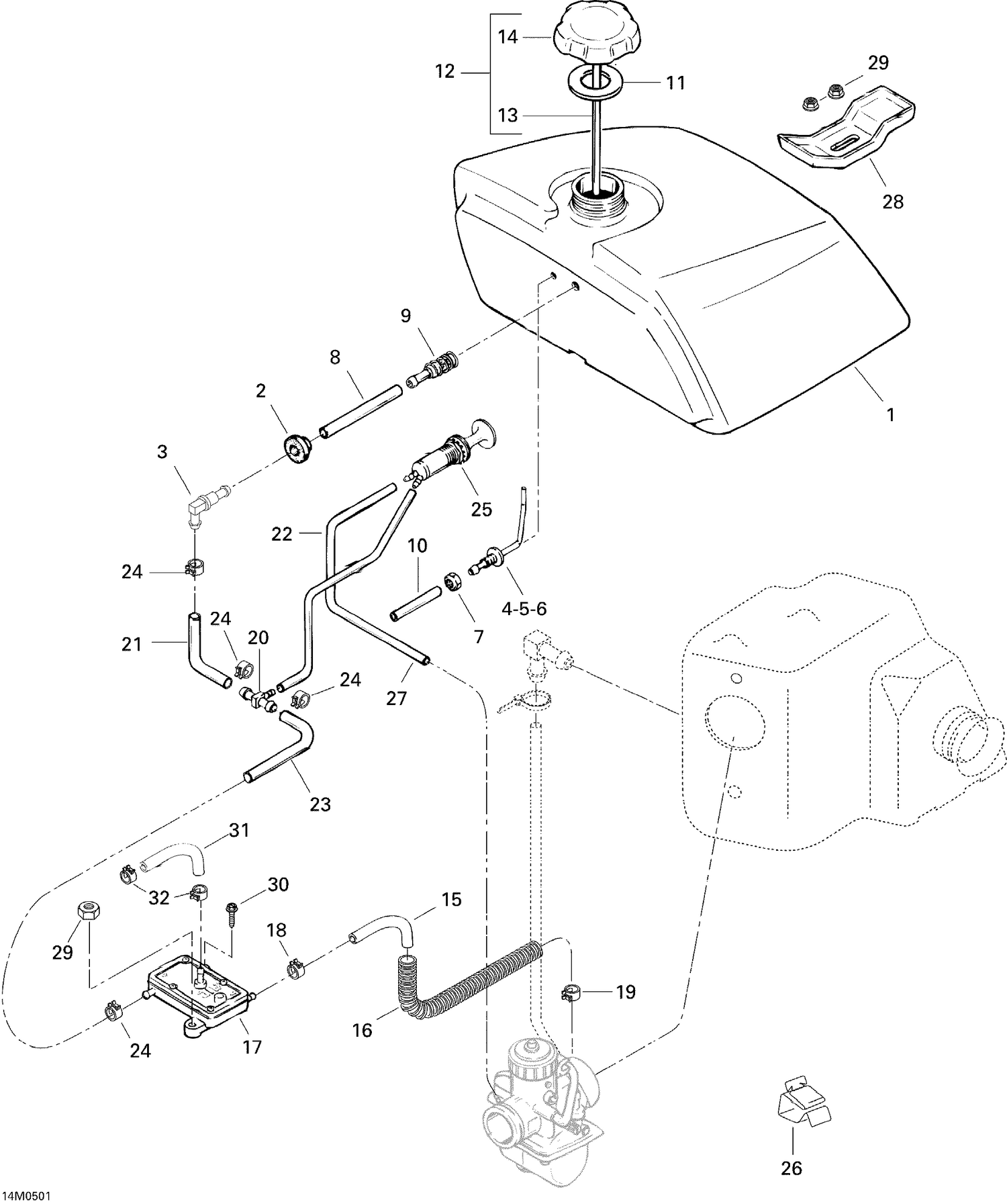

| Ref | Part Number | Description |
|---|
| 1 |
513033097 |
FUEL TANK - Call your local BRP dealership |
| 2 |
709200285 |
Grommet This part replaces 570135100. |
| 3 |
414580600 |
Elbow Male Connector |
| 5 |
513031701 |
Fitting |
| 6 |
Not |
Available As Spare Part - Tube |
| 7 |
396302200 |
HEX. NUT 5/16-18 YIC - Call your local BRP dealership |
| 8 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 9 |
414865700 |
Fuel Filter |
| 10 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 11 |
513033025 |
Fuel Tank Cap This part replaces 570134800. |
| 13 |
Not |
Available As Spare Part - Fuel Gauge |
| 14 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 15 |
219704549 |
Hose This part replaces 219704439. |
| 16 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 17 |
403800800 |
FUEL PUMP DF44-226A - Call your local BRP dealership |
| 18 |
414415200 |
Spring Clamp |
| 19 |
513033014 |
Spring Clamp |
| 20 |
414222500 |
T-fitting |
| 21 |
219704549 |
Hose This part replaces 219704439. |
| 22 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 23 |
219704549 |
Hose This part replaces 219704439. |
| 24 |
414415200 |
Spring Clamp |
| 25 |
415060500 |
Primer |
| 26 |
414227300 |
Clip |
| 27 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 28 |
517159500 |
Bracket Seat-tank |
| 29 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 30 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 31 |
219704549 |
Hose This part replaces 219704439. |
