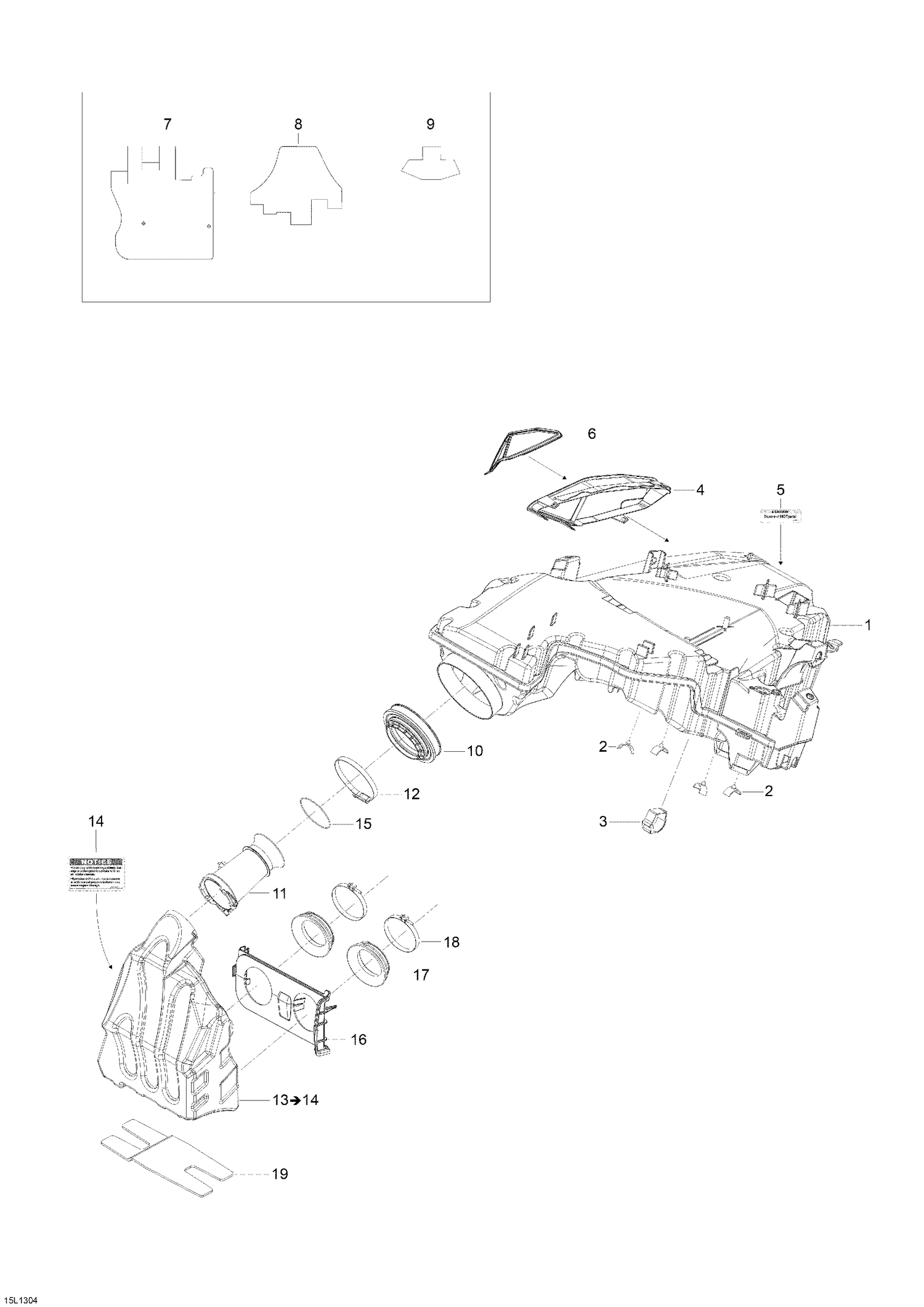

02- Air Intake System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 508000790 | Chamber Ass'y This part replaces 508000690. |
| 2 | 508000537 | Stopper |
| 3 | 508000820 | Velcro-Strip This part replaces 508000532. |
| 4 | 508001020 | Adaptor This part replaces 508000756. |
| 5 | 516004651 | Caution Label, Hot Parts |
| 6 | 508000609 | Air Filter |
| 7 | 508000675 | Reflective Sheet |
| 8 | 508000676 | Reflective Sheet |
| 9 | 508000677 | Reflective Sheet |
| 10 | 508000548 | Boot |
| 11 | 508000662 | Flute |
| 12 | 514052983 | Clamp |
| 14 | 516005876 | Instruction Label, Air Intake |
| 15 | 293300140 | O'RING - Call your local BRP dealership |
| 16 | 508000613 | Adapter Plate |
| 17 | 508000614 | Intake Adapter |
| 18 | 508000346 | Clamp |
