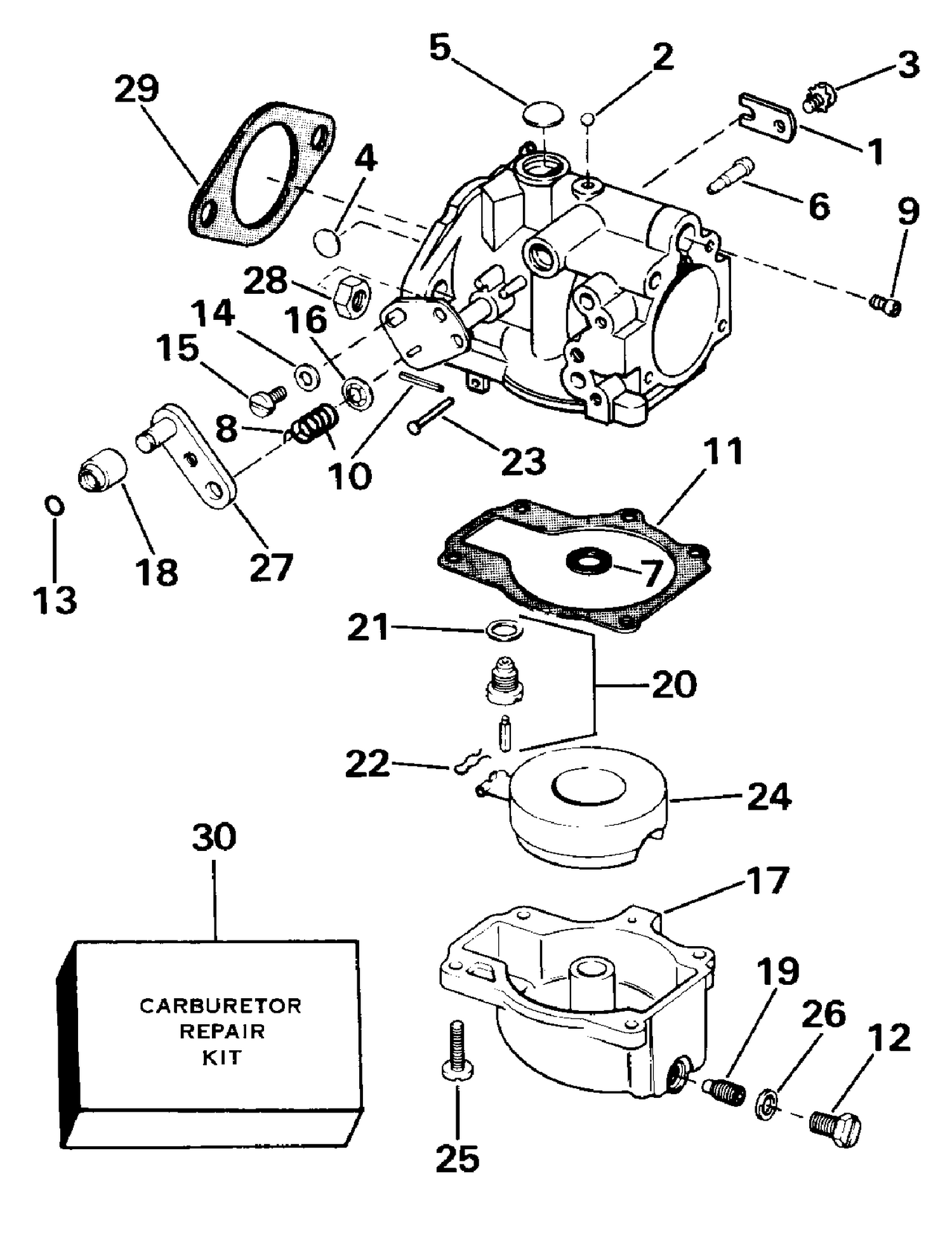

CARBURETOR
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 13 | 0308776 | O-RING |
| 18 | 0330056 | ROLLER, Cam follower |
| 19 | 0328538 | ORIFICE PLUG NO.39D |
| 22 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 25 | 0319682 | VIS, capteur vers plaque |
| 28 | 0316355 | BUT, Carburetor mounting |
| 29 | 0325092 | GASKET |
| 0395313 | 0395313 | CARB ASSY., Upper |
| 0395314 | 0395314 | CARB ASSY., Lower |
