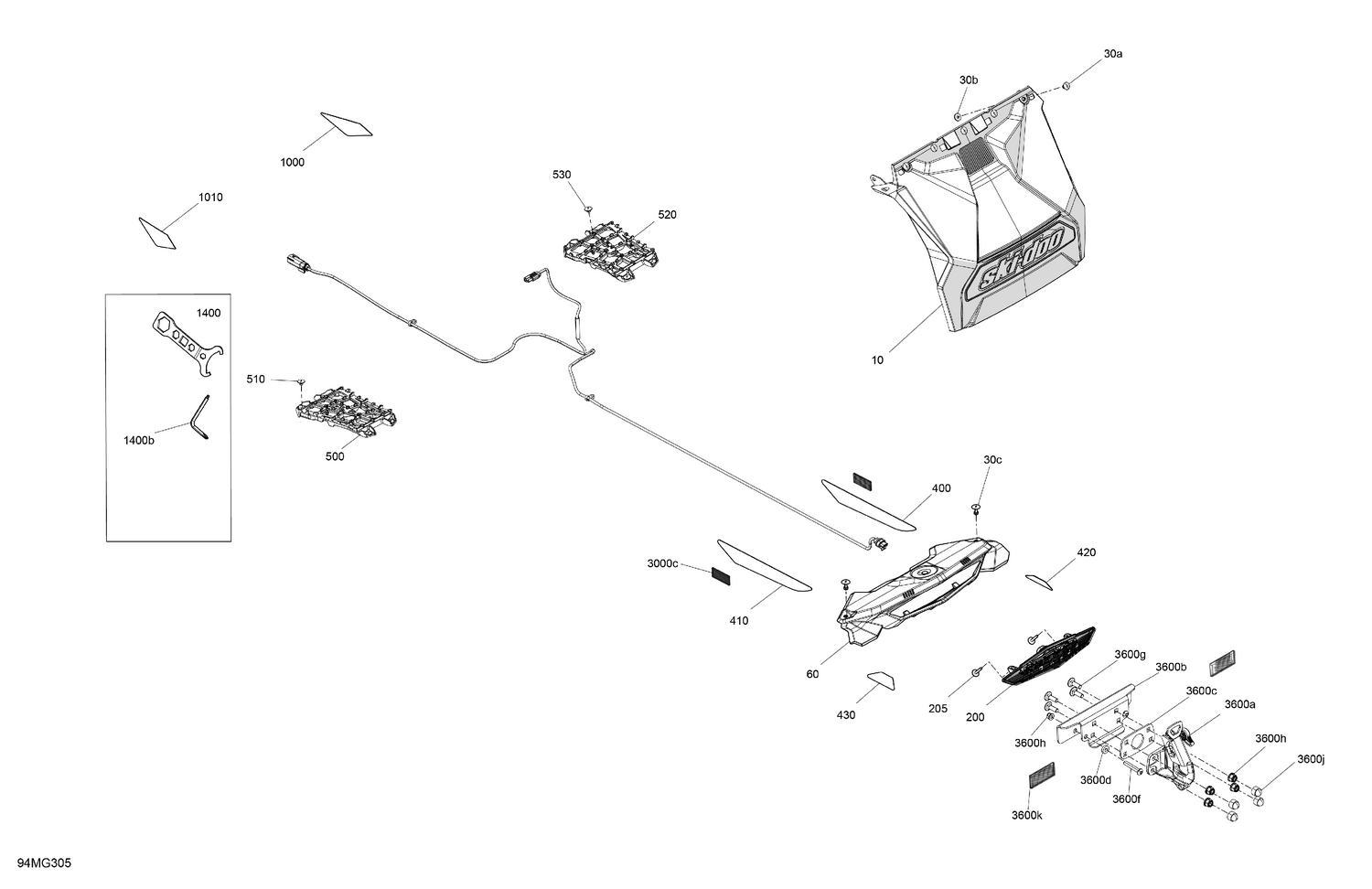

| Ref | Part Number | Description |
|---|
| 10 |
520003890 |
GUARD_SNOW ASSY |
| 30a |
293150321 |
Black, Rivet Ornit 4.8 X 14 |
| 30b |
517124300 |
Washer |
| 30c |
293150306 |
Black, Ornit Rivet 3/16 X ,800 |
| 60 |
520001487 |
Light Fairing |
| 200 |
520002710 |
Tail Light |
| 205 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 400 |
861805523 |
Yellow, LH/RH Rear Reflector Kit |
| 410 |
861805523 |
Yellow, LH/RH Rear Reflector Kit |
| 420 |
520001862 |
Amber, LH Rear Reflector |
| 430 |
520001861 |
Amber, LH Rear Reflector |
| 500 |
520003338 |
Passenger Footrest |
| 510 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 520 |
520003338 |
Passenger Footrest |
| 530 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 1000 |
520002343 |
RH Front Reflector |
| 1010 |
520002344 |
LH Front Reflector |
| 1400b |
520001815 |
Key |
| 3000c |
520000271 |
Amber, Reflector |
| 3600a |
520001826 |
Hitch Ass'y |
| 3600b |
520001632 |
Hitch Support |
| 3600c |
520001243 |
Hitch Fastening Plate |
| 3600d |
520001288 |
Sleeve |
| 3600f |
205484546 |
Socket Head Screw M8 X 45 |
| 3600g |
207782544 |
Carriage Bolt, M8 X 25 |
| 3600h |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3600j |
28056 |
Cover |
