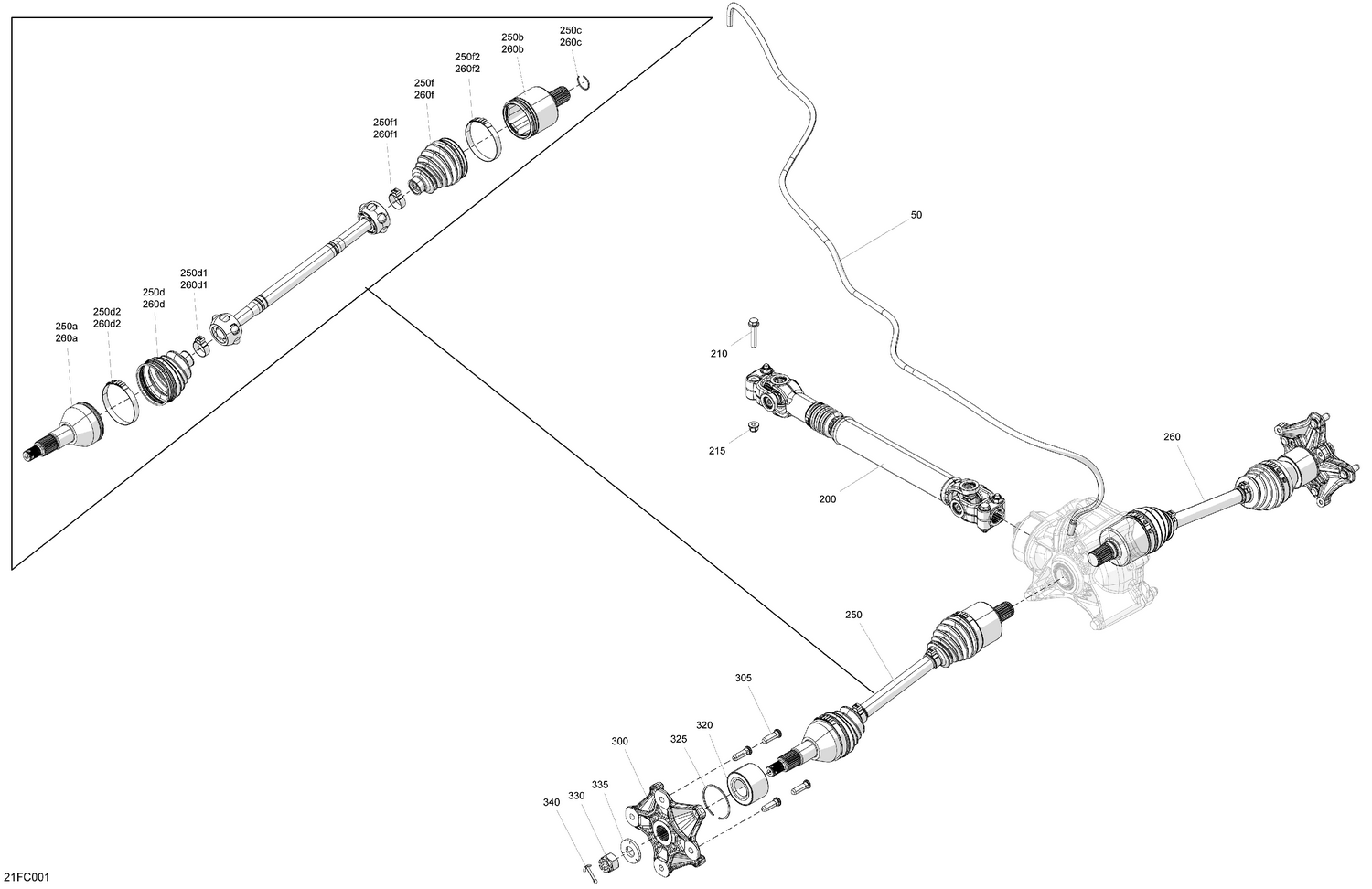

04- Drive - Rear - Common Parts
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 705502982 | Rear Drive Axle |
| 210 | 250001133 | Hex. Flange Screw M8 X 45 Scotch Grip |
| 215 | 233281416 | Hex. Elastic Flange Nut M8 |
| 250a | 715500461 | CV Joint Fix |
| 250b | 715500462 | Plunging Joint |
| 250c | 715500463 | Circlip Joint |
| 250d1 | 715500475 | Clamp Small |
| 250d2 | 715500476 | Clamp Large |
| 250f1 | 715500475 | Clamp Small |
| 250f2 | 715500477 | Clamp Large |
| 260a | 715500461 | CV Joint Fix |
| 260b | 715500462 | Plunging Joint |
| 260c | 715500463 | Circlip Joint |
| 260d1 | 715500475 | Clamp Small |
| 260d2 | 715500476 | Clamp Large |
| 260f1 | 715500475 | Clamp Small |
| 260f2 | 715500477 | Clamp Large |
| 305 | 250300055 | Wheel Stud M10 X 1.25 |
| 320 | 293350150 | Ball Bearing |
| 325 | 293370019 | Circlip |
| 330 | 232291413 | Hex. Flange Castellated Nut M18 |
| 335 | 250200171 | Conical Spring Washer M18 |
