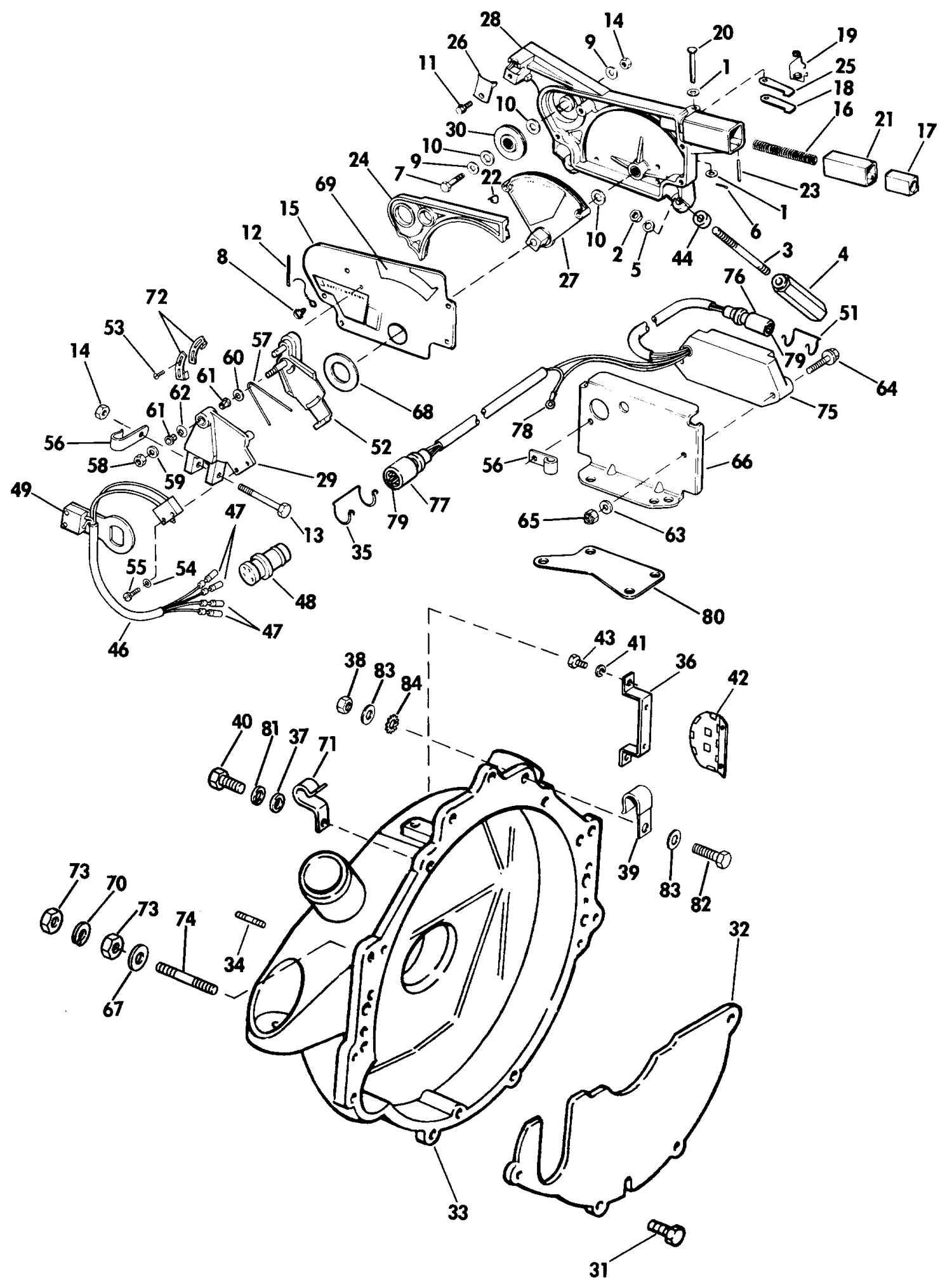

| Ref | Part Number | Description |
|---|
| 1 |
0303887 |
WASHEER, Pin to swivel bracket |
| 2 |
0312329 |
NUT |
| 3 |
0910005 |
STUD |
| 4 |
0909662 |
SPACER, Stud to adapter housing |
| 7 |
0303398 |
VIS, support This part replaces 0302030. |
| 8 |
0303311 |
SCR,Clamp,eng cable |
| 9 |
0120590 |
WASHER LEVER ARM, Pulley |
| 10 |
0330995 |
RONDELLE, levier |
| 11 |
0318468 |
SCRAEW, Latch to handle |
| 12 |
0319658 |
COTTER PIN, Prop |
| 13 |
0600014 |
SCREW |
| 15 |
0982761 |
COVER, Shift housing |
| 16 |
0910524 |
SPRING, Cable to tensioner |
| 17 |
0909334 |
RACK, Cable tensioner |
| 18 |
0909335 |
PAWL, Tensioner, long |
| 19 |
0909336 |
SPRING, Tensioner |
| 20 |
0909337 |
PIN, Pawl to housing |
| 21 |
0909338 |
LINDER,Cable tensioner |
| 22 |
0910042 |
HITCH PIN, Cable retainer |
| 23 |
0909357 |
ROLL PIN, Rack to housing |
| 24 |
0909477 |
GUIDE, Cables |
| 25 |
0909599 |
PAUL,Tensioner,short |
| 26 |
0909790 |
RETAINER |
| 27 |
0982762 |
PULLEY SEGMENT & SHAFT ASSY |
| 28 |
0981322 |
HOUSING, Bearings & seal assy |
| 29 |
0983423 |
LEVER ARM & INSERT ASSY |
| 30 |
0981346 |
IDELER PULLEY & BEARING ASSY |
| 31 |
3852421 |
SCREW, Baffle This part replaces 0907768. |
| 32 |
0909370 |
COVER, Flywheel |
| 33 |
0981551 |
ADAPTER HSG & STD ASSY |
| 34 |
0909514 |
STUD |
| 35 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 36 |
0909811 |
CLAMP, Exhaust seal |
| 38 |
0309602 |
LOCK NUT, Steering handle |
| 39 |
3852434 |
CLAMP, Engine cable This part replaces 0909431. |
| 40 |
0909571 |
SCREW |
| 42 |
0981927 |
ESHAUST ASSY |
| 43 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 44 |
0910095 |
SPACER, Alternator to brace |
| 46 |
0983103 |
CUTOUT & SWITCH ASSY |
| 49 |
0982886 |
SWITCH & TERMINAL ASSY |
| 52 |
0982763 |
LEVER ARM & PIN ASSY |
| 53 |
0910521 |
SCREW, Actuator |
| 55 |
0312288 |
SCREW, Safety switch |
| 56 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 57 |
0910273 |
SPRING |
| 62 |
0310099 |
BOW WASHER, Pivot stud |
| 63 |
0329241 |
RONDELLE This part replaces 0306482. |
| 64 |
0307471 |
SCREW |
| 65 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 66 |
0910631 |
BRACKET |
| 68 |
0910523 |
SPACER, Cover to bracket |
| 69 |
0911564 |
DECAL, Neutral adjust |
| 70 |
0306993 |
L'WASHER,Potentiometer,12 V |
| 71 |
3852457 |
CLAMP, Hose to exhaust manifold This part replaces 0908749. |
| 72 |
0910522 |
ACTUATOR |
| 74 |
0910589 |
STUD, Bracket to engine |
| 75 |
0982774 |
SHIFT ASSIST |
| 76 |
0511616 |
CLAMP, Cable |
| 77 |
0511449 |
COMMECTOR, Coil to power pack |
| 80 |
0910562 |
PLATE, Shift asist to engine |
| 81 |
0120177 |
L'WASHER, Alternator to brkt |
| 82 |
0312997 |
SCREW, Adapter to engine |
