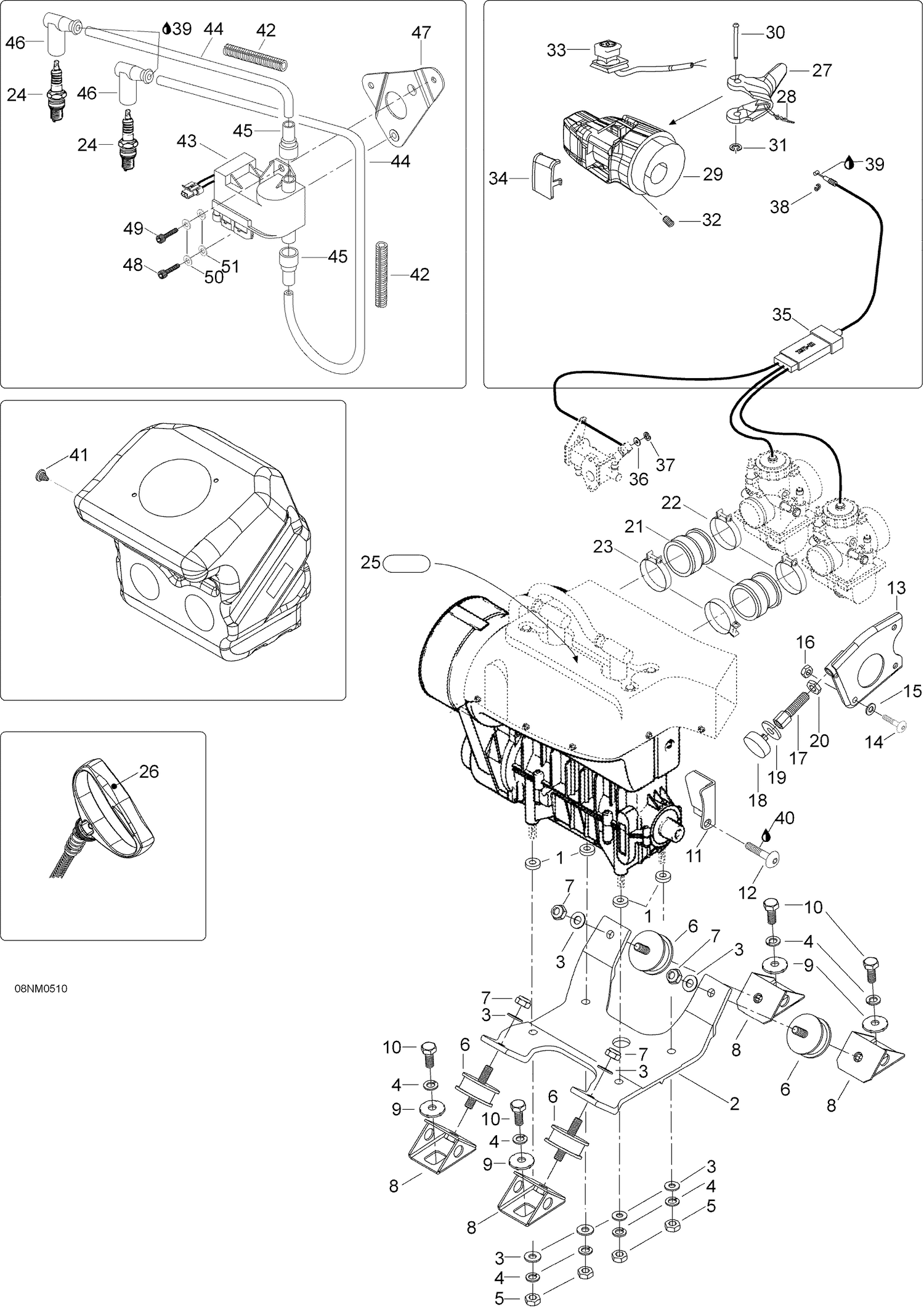

| Ref | Part Number | Description |
|---|
| 2 |
512059397 |
Engine support |
| 4 |
20113 |
Spring washer M10 |
| 5 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 6 |
570128700 |
RUBBER MOUNT - Call your local BRP dealership |
| 7 |
33082 |
Elastic stop nut M10 |
| 8 |
512050900 |
Engine support |
| 9 |
512056700 |
Lock washer |
| 10 |
40040 |
Hex. screw M10 x 25 |
| 13 |
512059446 |
Support plate |
| 14 |
40344 |
Socket head screw M8 x 25 |
| 15 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 16 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 17 |
512058800 |
STOPPER SCREW - Call your local BRP dealership |
| 18 |
512059056 |
Stopper |
| 20 |
33218 |
Jam nut M12 |
| 24 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 25 |
516000986 |
Decal, spark plug |
| 26 |
572084400 |
Grip |
| 28 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 29 |
512059489 |
THROTTLE HOUSING - Call your local BRP dealership |
| 29 |
572100900 |
Throttle handle housing |
| 30 |
414438700 |
Pin |
| 31 |
414439000 |
Circlip |
| 32 |
414440800 |
Socket Set Screw M8 X 10 |
| 33 |
515175410 |
Switch kill |
| 34 |
572100901 |
Cover |
| 35 |
512059625 |
THROTTLE CABLE - Call your local BRP dealership |
| 36 |
234081100 |
Flat Washer 8 mm This part replaces 414753300. |
| 38 |
31038 |
Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 39 |
293550004 |
Dielectric-rasva, 150g |
| 40 |
293800005 |
Loctite 271, 10ml |
| 42 |
28012 |
Tubing |
| 44 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 45 |
515174900 |
PROTECTION CAP - Call your local BRP dealership |
| 46 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 47 |
512059494 |
Bracket |
| 48 |
40364 |
Socket head screw M6 x 16 |
| 49 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 50 |
20052 |
Lock washer A6 |
