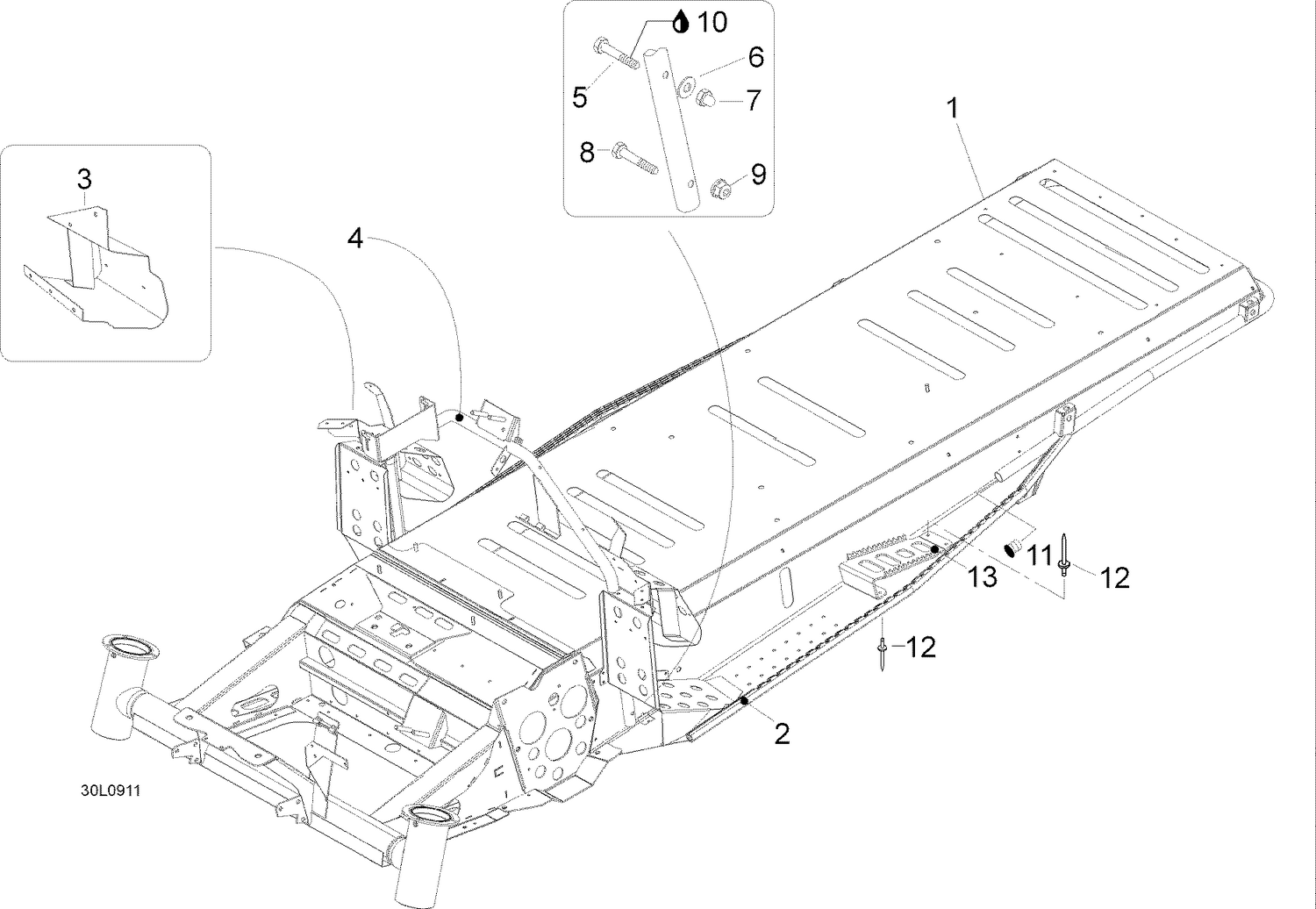

| Ref | Part Number | Description |
|---|
| 2 |
605253506 |
RH REINFORCEMENT - Call your local BRP dealership |
| 2 |
605253507 |
LH REINFORCEMENT - Call your local BRP dealership |
| 3 |
605253504 |
RH TOE REST - Call your local BRP dealership |
| 3 |
605253505 |
LH TOE REST - Call your local BRP dealership |
| 4 |
605153465 |
Handle steering supp. |
| 5 |
40003 |
Screw M6 x 35 |
| 6 |
20003 |
Washer |
| 7 |
33051 |
Nut M6 |
| 8 |
40002 |
Screw M6 x 40 |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 10 |
293800060 |
Loctite 243 10ml |
| 11 |
28210 |
Plug |
| 12 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
