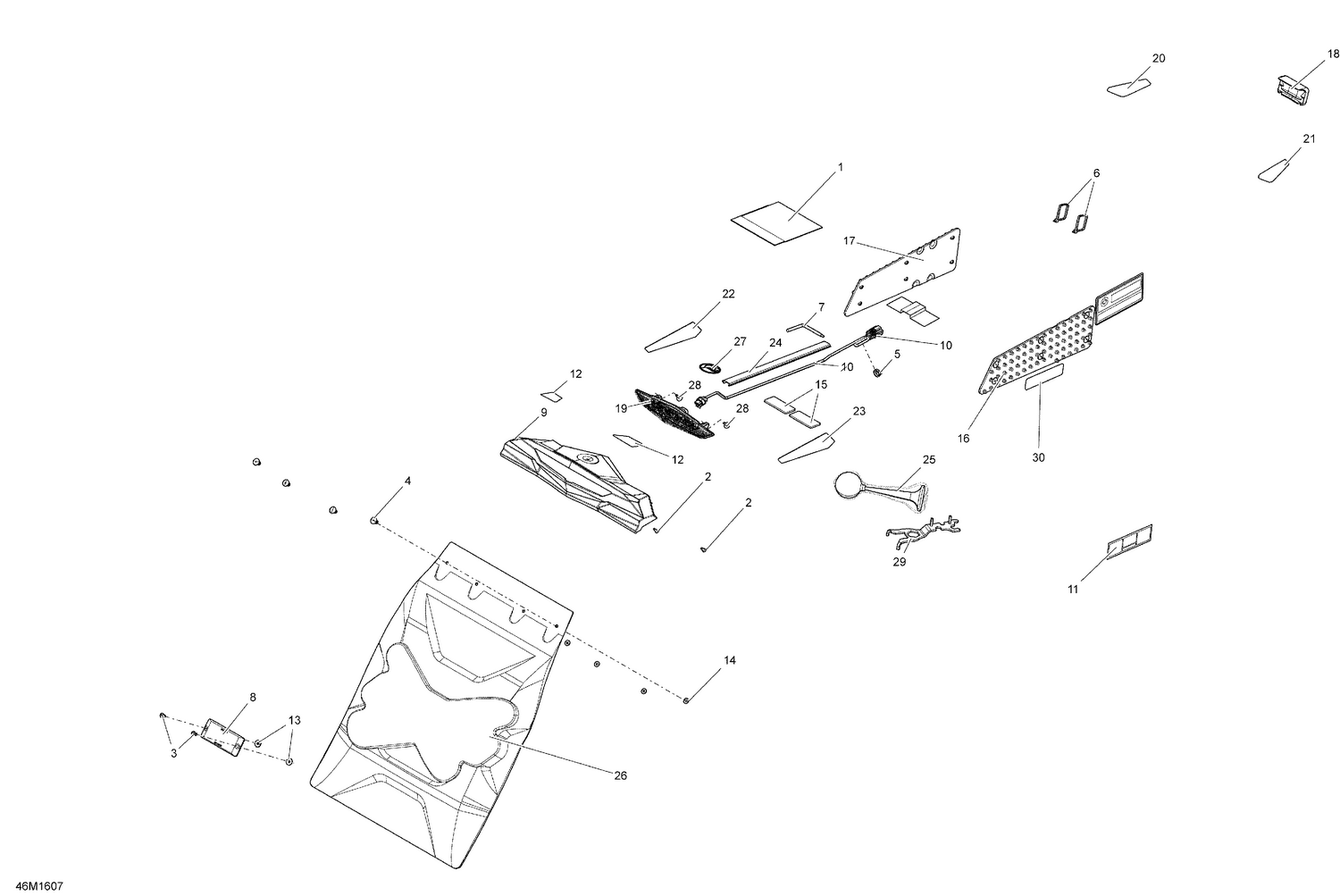

| Ref | Part Number | Description |
|---|
| 1 |
219400038 |
Waranty Registration Form |
| 2 |
241141340 |
Hex. Screw K40 X 13 |
| 3 |
293150008 |
Pop Rivet 3/16" |
| 4 |
293150104 |
Pop Rivet 3/16" |
| 5 |
293750002 |
Tie Wrap 142 mm |
| 6 |
293750018 |
Tie Rap 371 mm |
| 7 |
417127044 |
Belt Installation Tool |
| 8 |
510004350 |
LENS - Call your local BRP dealership |
| 9 |
511000810 |
Deep Black, Light Fairing |
| 10 |
515178062 |
Wiring Harness |
| 11 |
516003647 |
Decal X |
| 12 |
516005058 |
Warning Decal, Safety |
| 12 |
516006914 |
Security Label, XS |
| 13 |
517124300 |
Washer |
| 14 |
517225900 |
Flat Washer |
| 15 |
415037900 |
White, Reflector |
| 15 |
520000271 |
Amber, Reflector |
| 16 |
860200164 |
Grip Plate Kit |
| 17 |
860200164 |
Grip Plate Kit |
| 18 |
520000871 |
Deep Black, Reflector Support |
| 19 |
520001143 |
Rear Light |
| 20 |
520001236 |
Yellow, LH Front Reflector |
| 21 |
520001237 |
Yellow, RH Front Reflector |
| 22 |
520001238 |
Red, LH Rear Reflector |
| 22 |
520001240 |
Yellow, LH Rear Reflector |
| 23 |
520001239 |
Red Rh Rear Reflector |
| 23 |
520001241 |
Yellow, RH Rear Reflector |
| 24 |
520000829 |
Radiator Trim |
| 25 |
549011291 |
Horn |
| 26 |
520001441 |
Snow Flap |
| 27 |
516008738 |
BRP Logo 48mm This part replaces 516006887. |
| 28 |
250000725 |
Screw M4 X 16 |
| 29 |
520001499 |
Wrench |
