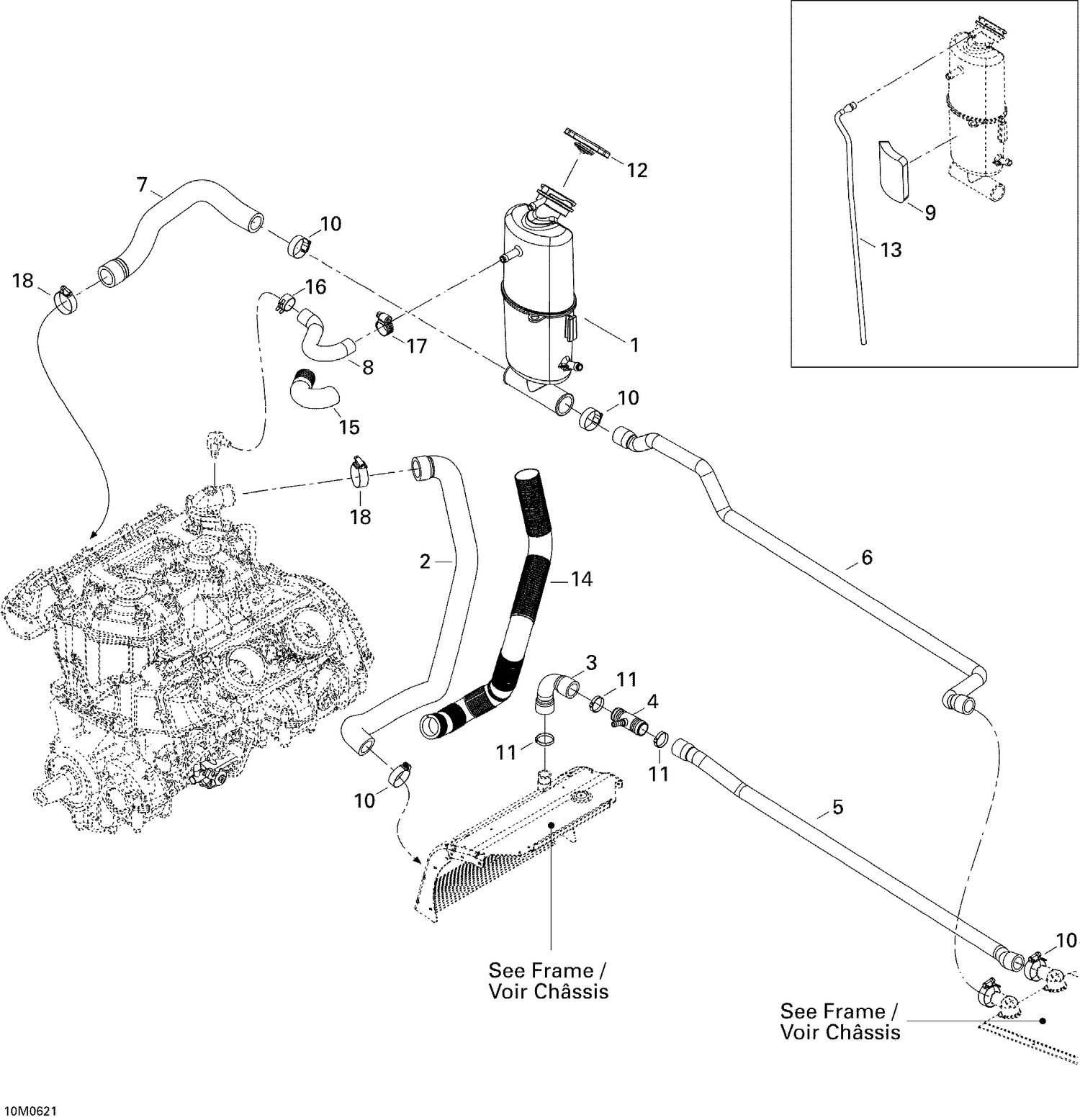

| Ref | Part Number | Description |
|---|
| 1 |
509000323 |
Coolant Tank |
| 2 |
509000395 |
ENGINE OUTLET HOSE - Call your local BRP dealership |
| 3 |
509000337 |
FRONT RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 4 |
509000510 |
T-Fitting This part replaces 509000336. |
| 5 |
509000394 |
RADIATOR OUTLET JOSE - Call your local BRP dealership |
| 6 |
509000386 |
RADIATOR OUTLET JOSE - Call your local BRP dealership |
| 7 |
509000351 |
ENGINE INLET HOSE - Call your local BRP dealership |
| 8 |
509000297 |
BLEED HOSE - Call your local BRP dealership |
| 9 |
509000353 |
FOAM - Call your local BRP dealership |
| 10 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 11 |
509000045 |
Oetiker Gear Clamp 36.1MM |
| 12 |
509000187 |
Pressure Cap |
| 13 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 14 |
219704428 |
Tubing 35 MM 1000MM Long |
| 15 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 16 |
513033029 |
Universal Spring Clamp |
| 17 |
293650170 |
Tridon Gear Clamp |
