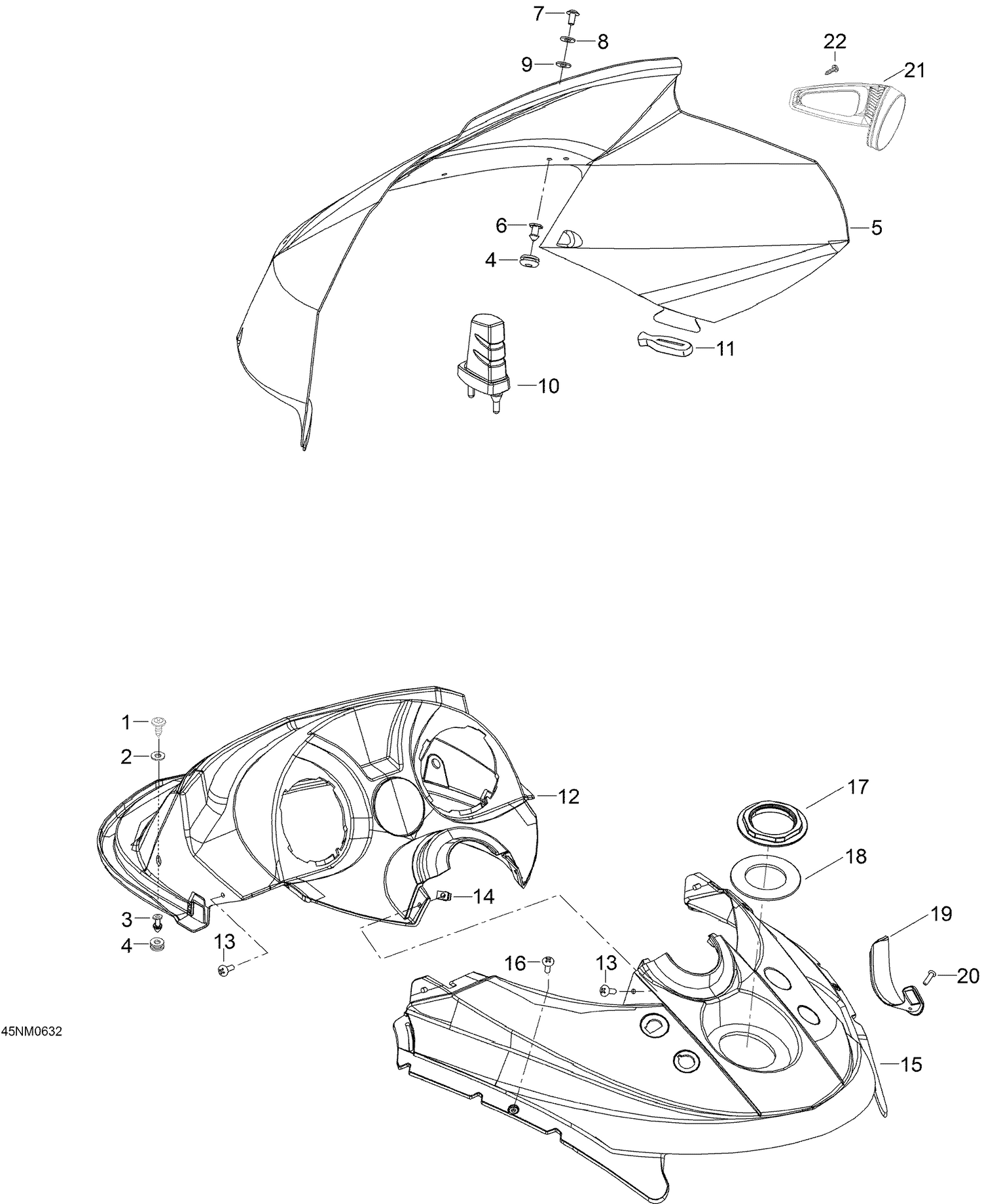

09- Windshiel And Console
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 208651481 | PHILLIPS SCREW M5 X 14 - Call your local BRP dealership |
| 2 | 250200025 | Washer M5 |
| 3 | 517303439 | Knob This part replaces 517302719. |
| 4 | 517307161 | Grommet This part replaces 517302841. |
| 5 | 605153369 | Windshield |
| 6 | 517303439 | Knob |
| 7 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 8 | 250200025 | Washer M5 |
| 9 | 250200024 | Rubber Washer 5 mm |
| 10 | 605353583 | Support |
| 11 | 570023800 | Latch |
| 12 | 605253148 | Console, front, Jet Black |
| 13 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 14 | 33033 | Nut |
| 15 | 605253165 | Console, rear, Jet Black |
| 16 | 40176 | Screw M5 x 12 |
| 17 | 517302043 | CONSOLE NUT - Call your local BRP dealership |
| 18 | 5447116 | Gasket - Call your local BRP dealership |
| 19 | 605352372 | Protector |
| 20 | 36097 | Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
