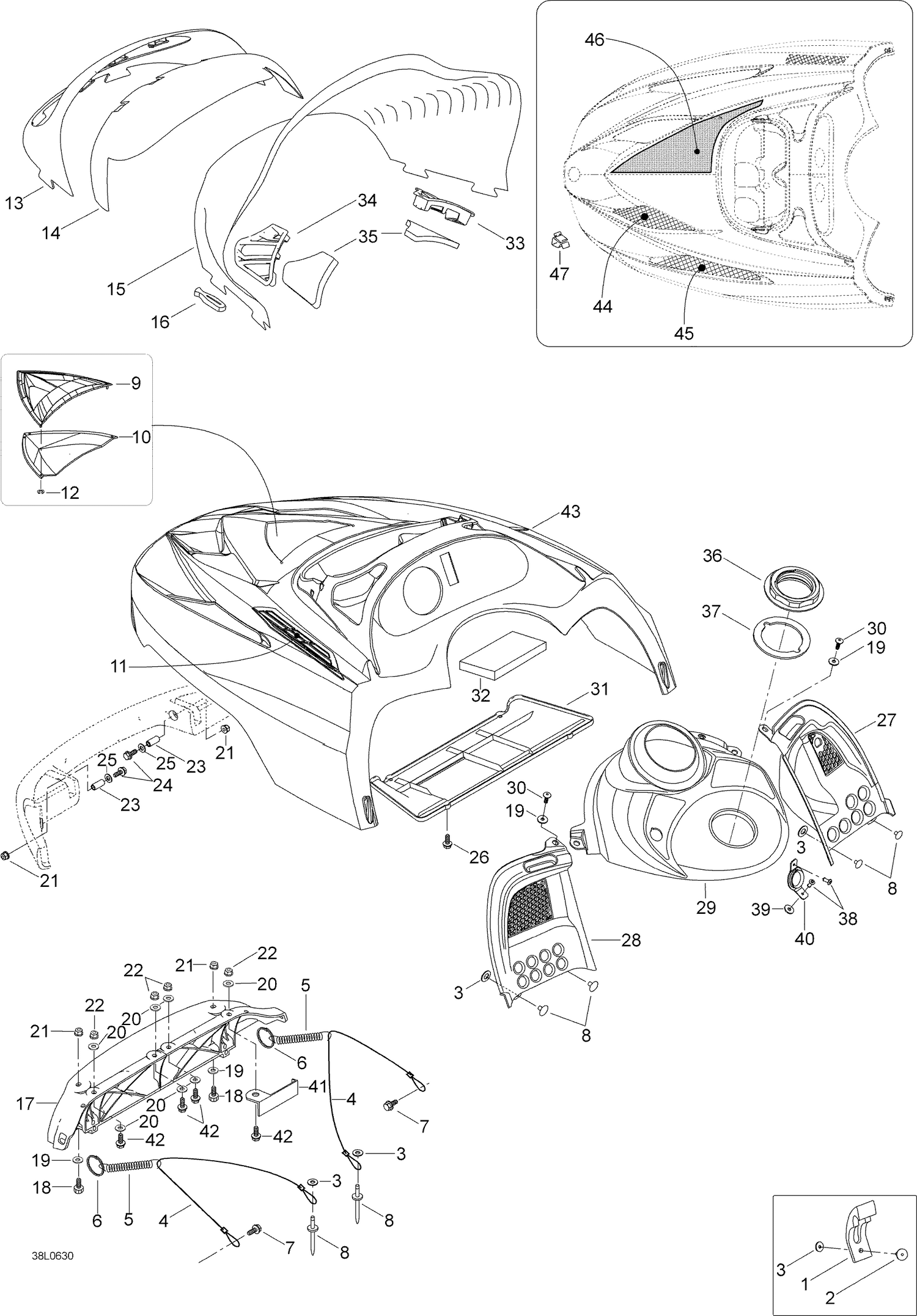

09- Hood
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570027100 | Latch |
| 2 | 36037 | Rivet |
| 3 | 20008 | Washer A5,3 |
| 4 | 549882 | Retainer cable |
| 5 | 415043300 | Spring |
| 6 | 415058300 | RING - Call your local BRP dealership |
| 7 | 40177 | Screw M4.8 x 16 |
| 8 | 36036 | Rivet |
| 9 | 5247486 | Grill |
| 10 | 5247487 | Inlet duct |
| 11 | 5247488 | Grill |
| 12 | 41034 | Circlip |
| 13 | 517302158 | HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership |
| 14 | 517302003 | WINDSHIELD SUPPORT - Call your local BRP dealership |
| 15 | 517302560 | Windshield, high |
| 16 | 570023800 | Windshield latch |
| 17 | 517302631 | Hinge half |
| 18 | 40381 | Socket head screw M6 x 20 |
| 19 | 20117 | Washer |
| 20 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 | 33010 | Lock Nut M6 (1=10Pcs) |
| 23 | 517302179 | BUSHING - Call your local BRP dealership |
| 24 | 40003 | Hex. screw M6 x 35 |
| 25 | 20003 | Washer A6,4 |
| 26 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 27 | 517302027 | RH CONSOLE - Call your local BRP dealership |
| 28 | 517302006 | LH CONSOLE - Call your local BRP dealership |
| 29 | 605352055 | Center console |
| 30 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 31 | 517302836 | AIR INTAKE PLATE - Call your local BRP dealership |
| 32 | 605350268 | Air intake foam |
| 33 | 517302024 | RH AIR INTAKE GRILL - Call your local BRP dealership |
| 34 | 517302025 | LH AIR INTAKE GRILL - Call your local BRP dealership |
| 35 | 605450267 | Air intake foam |
| 36 | 517302043 | CONSOLE NUT - Call your local BRP dealership |
| 37 | 5447116 | Gasket - Call your local BRP dealership |
| 38 | 36002 | Rivet |
| 39 | 517302286 | Rubber stopper |
| 40 | 517302129 | Rope guide |
| 41 | 5448263 | R.H. Support |
| 41 | 5448264 | L.H. Support |
| 42 | 40030 | Hex. screw M6 x 20 |
| 44 | 5346887 | L.H. Front grill |
| 44 | 5346888 | R.H. Front grill |
| 45 | 5346889 | L.H. Rear grill |
| 45 | 5346890 | R.H. Rear grill |
| 46 | 414631900 | Heat protector |
