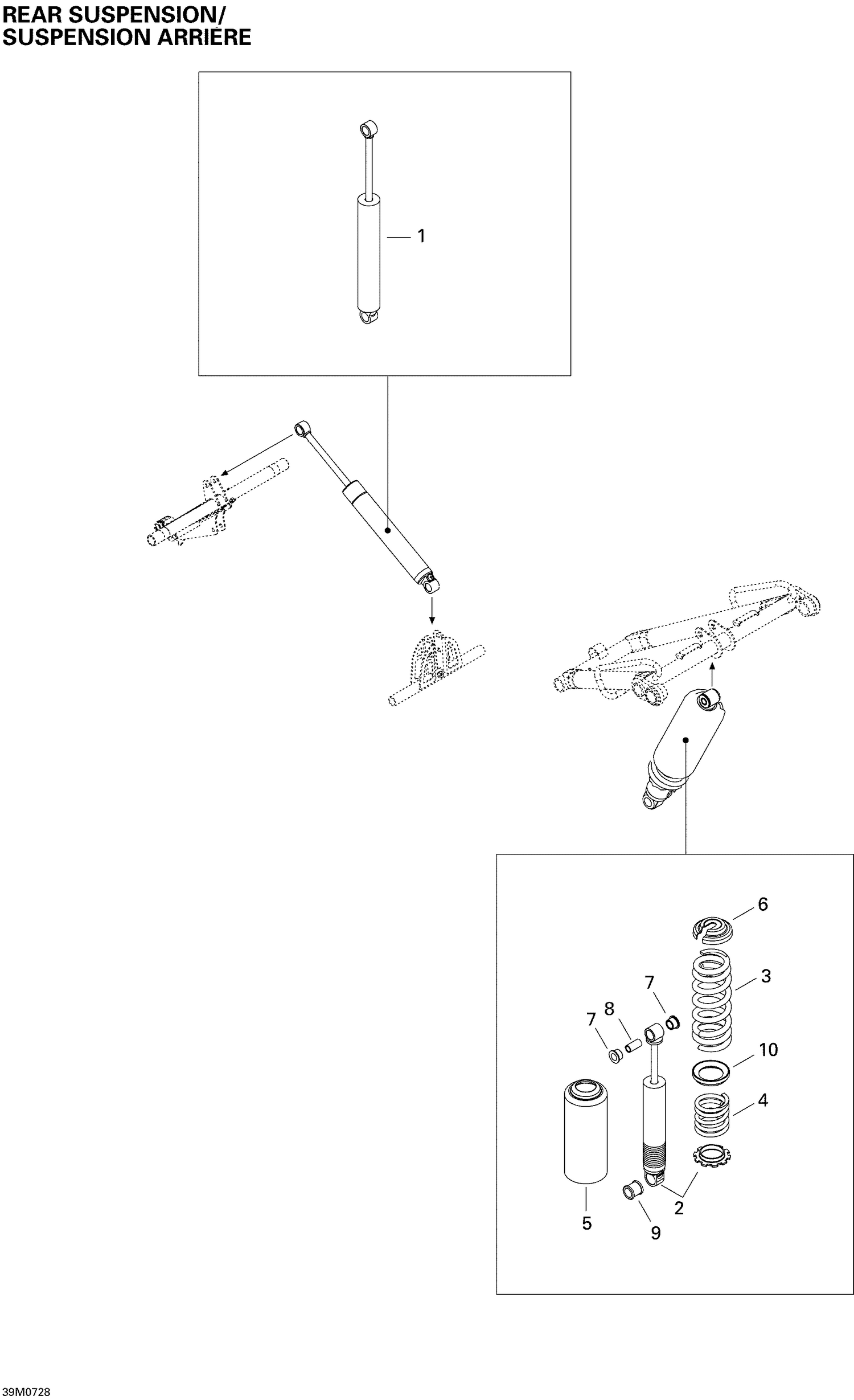

08- Rear Suspension Shocks
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191467 | REAR SHOCK - Call your local BRP dealership |
| 2 | 503190662 | CENTER SHOCK - Call your local BRP dealership |
| 3 | 503191342 | BLACK SPRING - Call your local BRP dealership |
| 4 | 503191343 | Black, Spring |
| 5 | 503193663 | Protector This part replaces 503188930. |
| 6 | 706200881 | Spring Stopper This part replaces 503140600. |
| 7 | 503189117 | Urethane Bushing |
| 8 | 503189282 | Bushing |
| 9 | 503189271 | Bushing |
