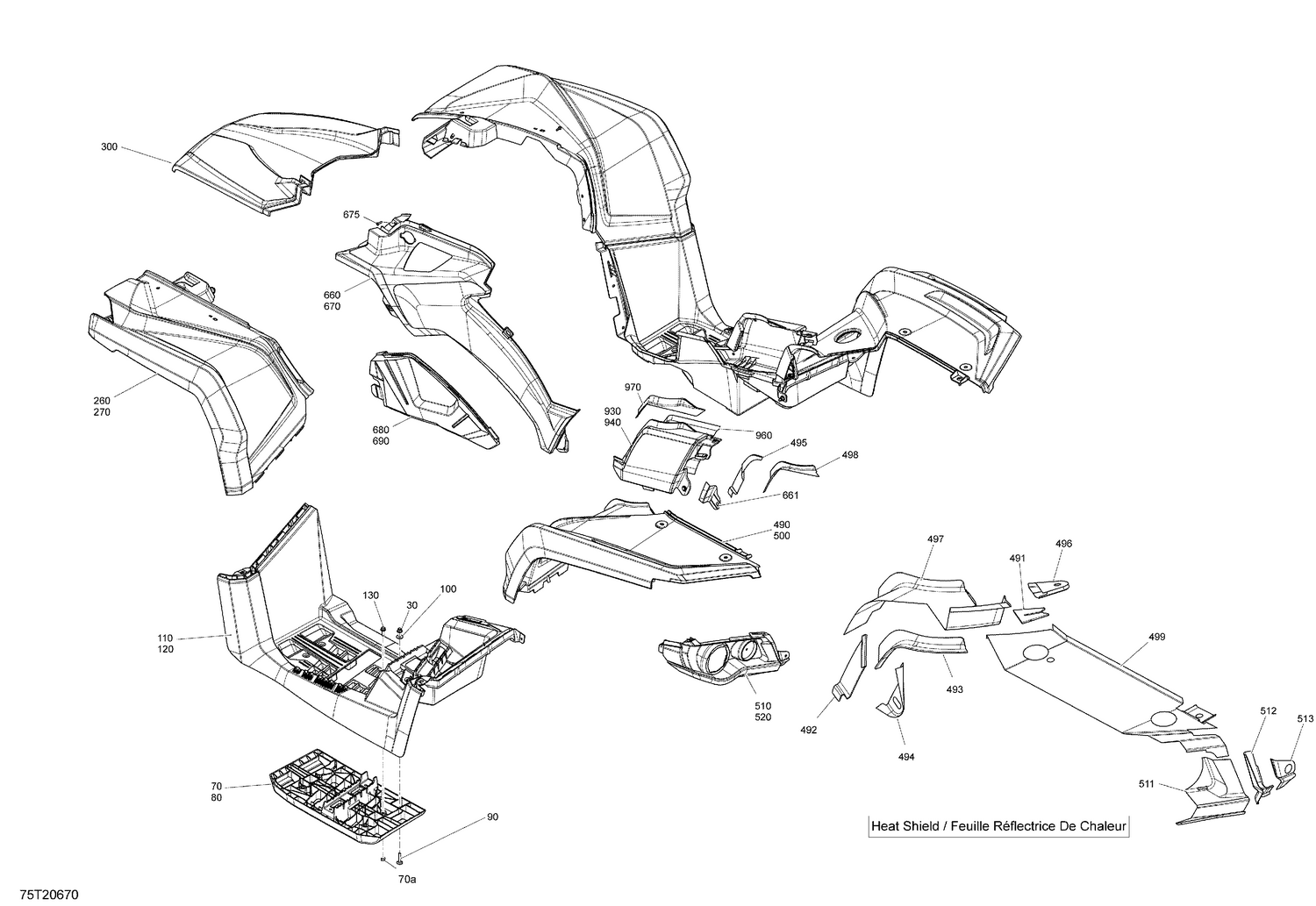

09- Body - Fenders And Lateral Panels - PRO+ - Squadron Green
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 70a | 232862412 | Square Nut M6 |
| 80 | 705011542 | RH Structural Footboard |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705003525 | LH Footrest Max |
| 120 | 705003521 | RH Footrest Max |
| 130 | 207662054 | Hex. Flange Screw M6 X 20 |
| 260 | 715007021 | Squadron Green, LH Front Fender Kit |
| 270 | 715005680 | Squadron Green, RH Front Fender Kit |
| 300 | 715005795 | Squadron Green, Hood Kit |
| 490 | 715005747 | Squadron Green, LH Rear Fender Kit |
| 491 | 707002456 | Heat Shield |
| 492 | 707002457 | Heat Shield |
| 493 | 707002458 | Heat Shield |
| 494 | 707002459 | Heat Shield |
| 495 | 707002460 | Heat Shield |
| 496 | 707002461 | Heat Shield |
| 497 | 707002462 | Heat Shield |
| 498 | 707002583 | Heat Shield |
| 499 | 707002464 | Heat Shield |
| 500 | 715005789 | Squadron Green, RH Rear Fender Kit |
| 510 | 705006651 | LH Rear Facia |
| 511 | 707002103 | Heat Shield |
| 512 | 707002107 | Heat Shield |
| 513 | 707002594 | Heat Shield |
| 520 | 705006652 | RH Rear Facia |
| 660 | 705009760 | Squadron Green, LH Lateral Panel |
| 661 | 707002467 | Heat Shield |
| 670 | 705009764 | Squadron Green, RH Lateral Panel |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 680 | 715007008 | Deflector_Body Panel Kit This part replaces 705014060. |
| 690 | 705003444 | Engine Cover |
| 930 | 715001897 | LH Extension Panel |
| 940 | 705004348 | RH Extension Panel |
| 960 | 705006870 | Heat Shield |
