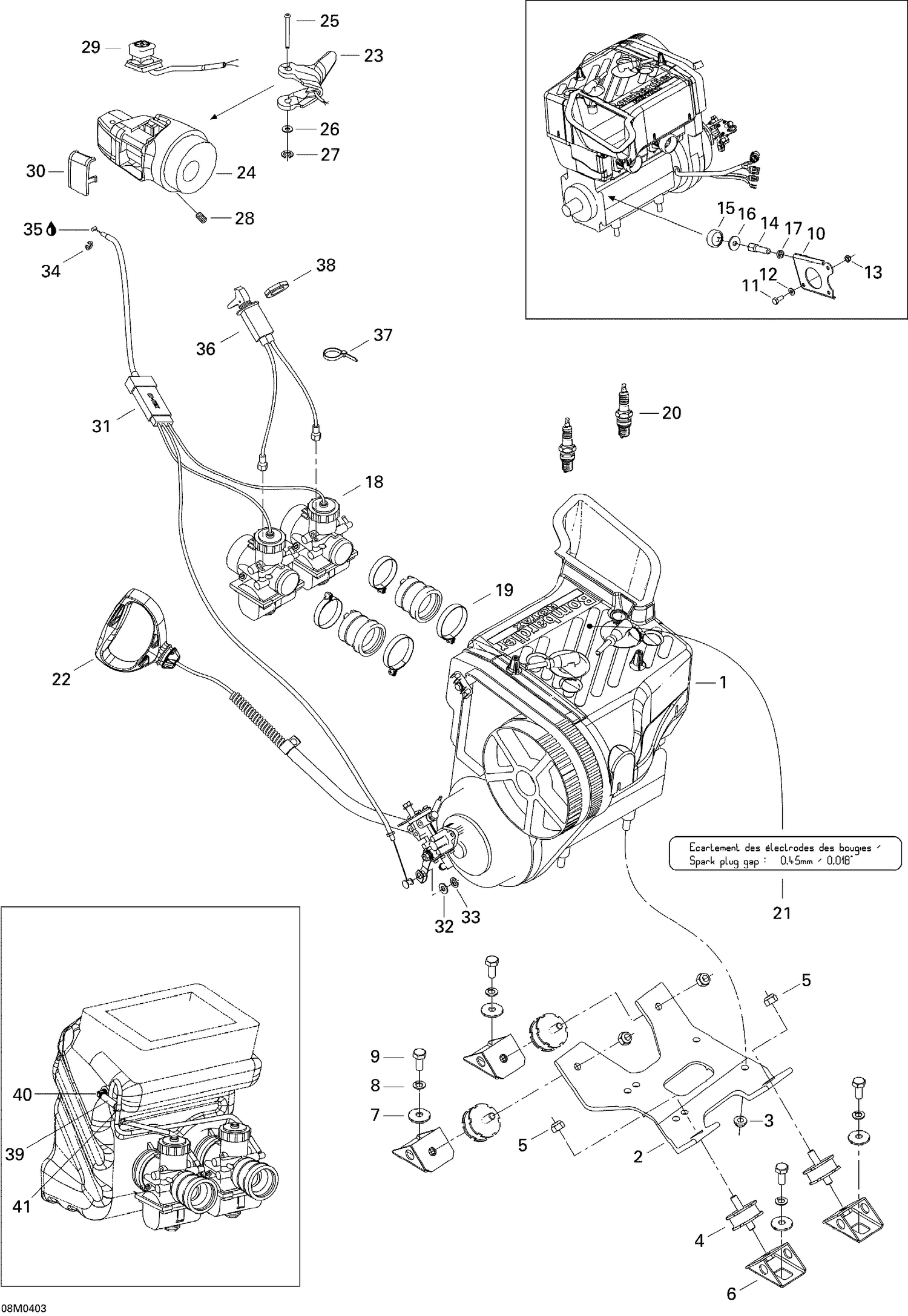

01- Engine System, SKANDIC 550F
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400509745 | Engine 552 |
| 2 | 512059397 | Engine Support |
| 3 | 233201414 | Hex. Flange Elastic Nut M10 |
| 4 | 570128700 | RUBBER MOUNT - Call your local BRP dealership |
| 5 | 233201414 | Hex. Flange Elastic Nut M10 |
| 6 | 512050900 | Engine Support |
| 7 | 512056700 | Lock Washer |
| 8 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 9 | 207102544 | Hex. Screw M10 X 25 |
| 10 | 512059446 | Welded Plate |
| 11 | 207182044 | Hex. Screw M8 X 20 |
| 12 | 234081410 | Flat Washer 8 mm |
| 13 | 232581414 | Hex. Elastic Stop Nut M8 |
| 14 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 15 | 512059056 | Stopper |
| 16 | 512059057 | WASHER - Call your local BRP dealership |
| 17 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 18 | 403138727 | Carburator Vm-34 |
| 19 | 512059834 | Gemi Clamp |
| 20 | 219703120 | Spark Plug NGK BR9ES This part replaces 414961100. |
| 21 | 516000986 | Spark Plug Decal |
| 22 | 572084400 | Starter Grip |
| 23 | 512060214 | Handle Ass'y This part replaces 512059623. |
| 24 | 512059489 | THROTTLE HOUSING - Call your local BRP dealership |
| 25 | 414438700 | Lever Pin |
| 26 | 234051600 | Flat Washer M5, Stainless |
| 27 | 414439000 | Circlip |
| 28 | 414440800 | Socket Set Screw M8 X 10 |
| 29 | 515175410 | Kill Switch |
| 30 | 572100901 | Switch Cover |
| 31 | 512059625 | THROTTLE CABLE - Call your local BRP dealership |
| 32 | 234081100 | Flat Washer 8 mm, Nylon |
| 33 | 414753500 | Circlip |
| 34 | 414274500 | Circlip |
| 35 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 36 | 512059441 | CHOKE CABLE - Call your local BRP dealership |
| 37 | 293750009 | Tie-Rap 173 mm |
| 38 | 512059094 | PLASTIC NUT - Call your local BRP dealership |
| 39 | 219704410 | Polyurethane Hose 10000Mm Long |
| 40 | 414580600 | Elbow Male Connector |
