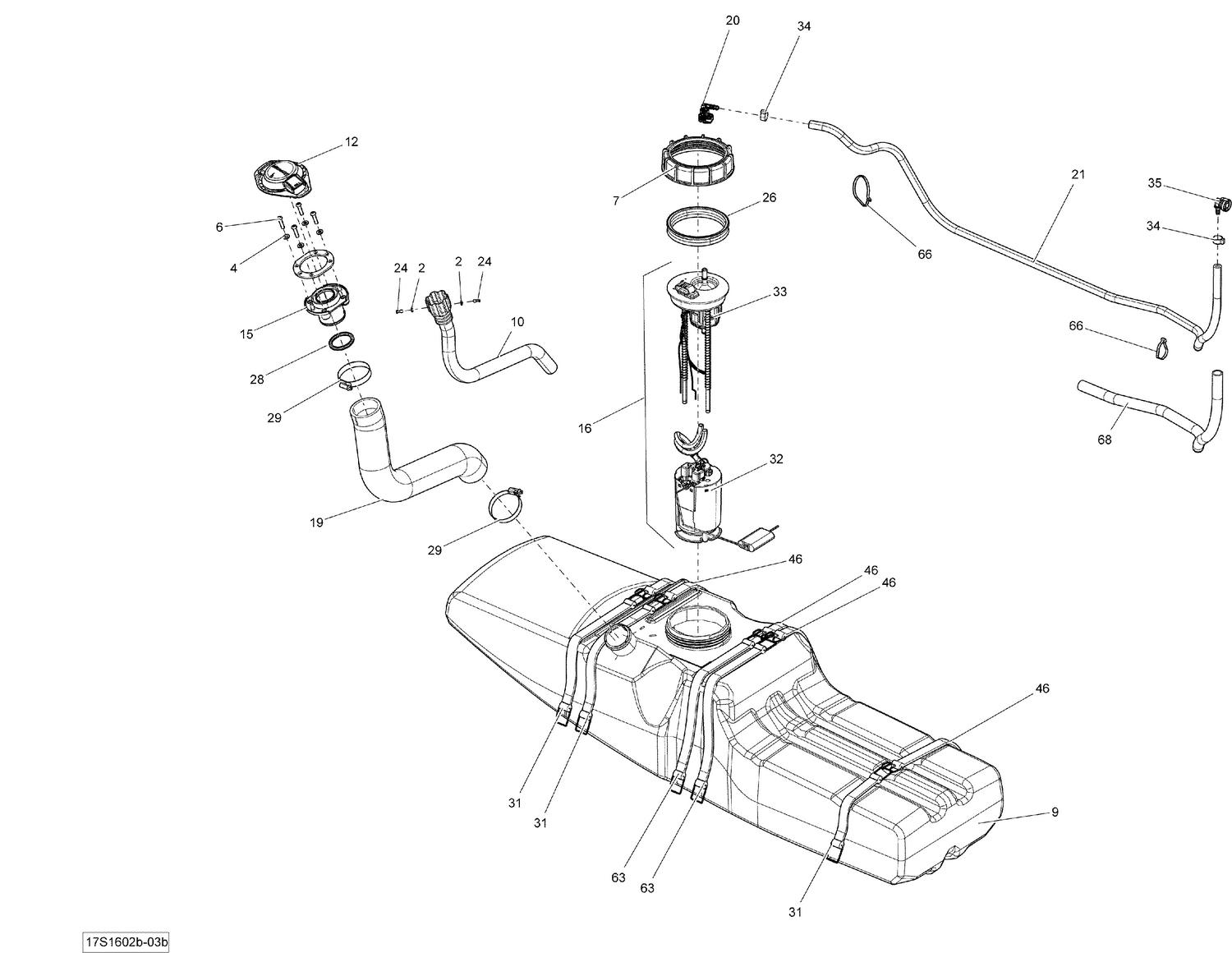

02- Fuel System - With Suspension
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 234032600 | Flat Washer M3, Stainless |
| 4 | 234061600 | Stainless Flat Washer M6 |
| 6 | 250000328 | Torx Screw M6 X 25, Scotch Grip |
| 7 | 250100062 | Special Nut M130 |
| 9 | 275500783 | FUEL TANK ASS'Y - Call your local BRP dealership |
| 10 | 275500757 | FILLER NECK, INTERIOR - Call your local BRP dealership |
| 12 | 275500832 | Fuel Cap Ass'y |
| 15 | 275500848 | Fuel Filler Neck |
| 16 | 275500996 | Pump Fuel Ass'y This part replaces 275500850. |
| 19 | 275500919 | HOSE - Call your local BRP dealership |
| 20 | 275500921 | Quick Disconnect |
| 21 | 219704395 | HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership |
| 24 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 26 | 293250173 | Gasket |
| 28 | 293300139 | X-Ring |
| 29 | 293650081 | Norma Clamp |
| 31 | 293850087 | Fuel Tank Strap |
| 32 | 275500780 | Sensor Lever |
| 33 | 270600113 | Fuel Filter This part replaces 270600108. |
| 34 | 293650053 | Crimp Clamp |
| 35 | 293710105 | Elbow Fitting 90° |
| 46 | 293850094 | Fuel Tank Strap |
| 63 | 293850095 | Fuel Tank Strap |
| 66 | 293750008 | Tie Wrap 368 mm |
| 66 | 414115200 | Tie-Rap 180 mm |
