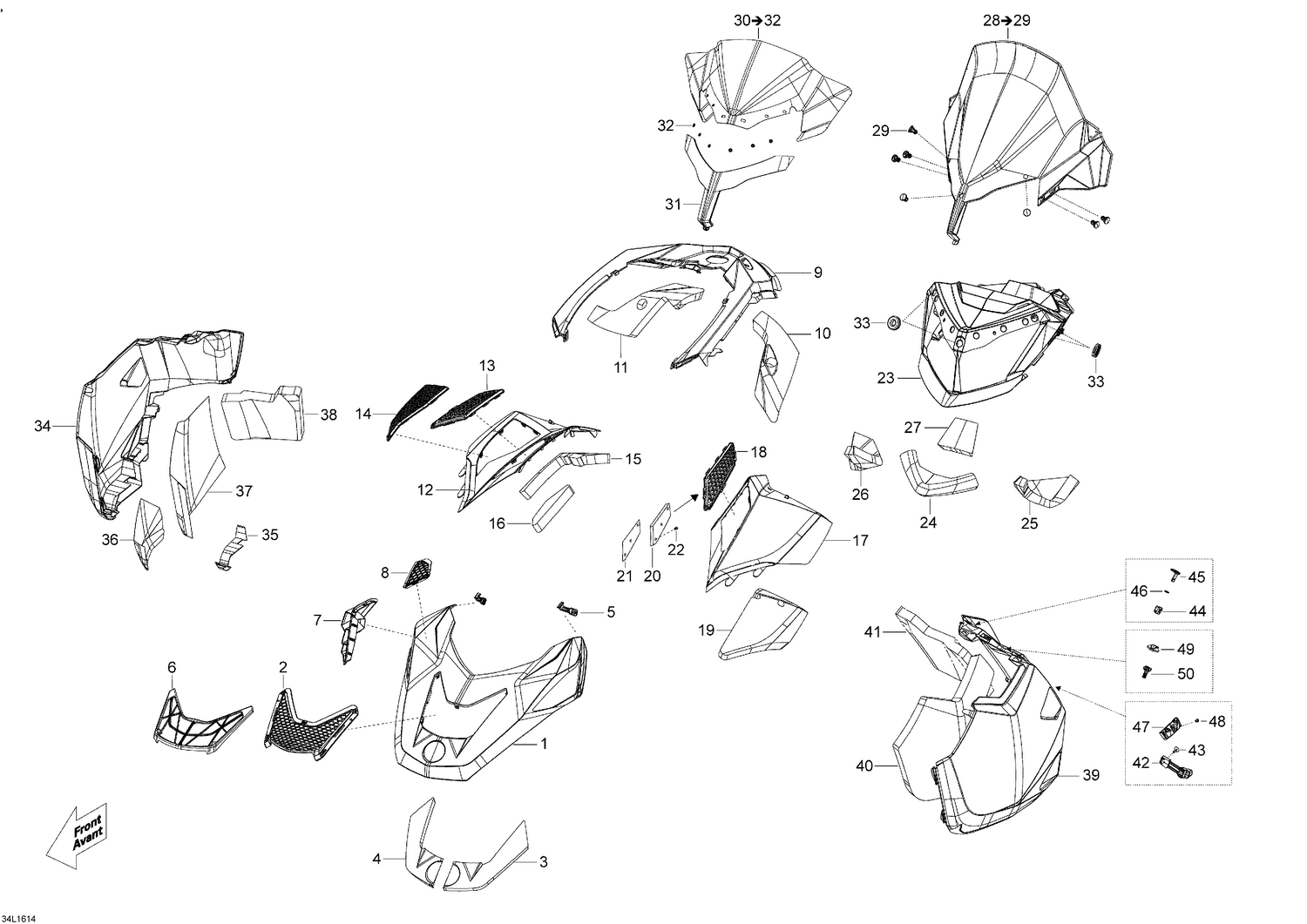

09- Hood And Windshield
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 517304843 | Hood Grill |
| 3 | 517304330 | Insulator |
| 4 | 517304214 | Insulator |
| 5 | 517304289 | Latch |
| 10 | 517305644 | Insulator |
| 11 | 517304318 | Insulator |
| 13 | 517304015 | RH Access Panel Grill |
| 14 | 517304016 | RH Lower Access Panel Grill |
| 15 | 517304311 | Insulator |
| 16 | 517305987 | Insulator |
| 18 | 517303893 | LH Access Panel Grill |
| 19 | 517304313 | Insulator |
| 20 | 517305311 | Insulator |
| 21 | 502007312 | Grill Plate |
| 22 | 414644300 | Black, Dart |
| 24 | 517304314 | Insulator |
| 25 | 517304315 | Insulator |
| 26 | 517304316 | Insulator |
| 27 | 517304319 | Insulator |
| 29 | 517304744 | Knob |
| 31 | 517304712 | Windshield Support |
| 32 | 732610072 | Push Nut |
| 33 | 517303756 | Grommet |
| 34 | 517306970 | Black, RH Side Panel This part replaces 517304866. |
| 35 | 517304215 | Aluminum Foil |
| 36 | 517304216 | Aluminum Foil |
| 37 | 517303890 | RH Foam |
| 38 | 517304310 | RH Foam Rear |
| 40 | 517303891 | LH Foam |
| 41 | 517304309 | LH Foam Rear |
| 42 | 517304572 | Latch-Panel |
| 43 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 44 | 517304297 | Quarter-Turn Handle Fastener |
| 45 | 517304296 | Quarter-Turn Handle |
| 46 | 517304538 | Locking Plate |
| 47 | 517304497 | Side Panel Support |
| 48 | 293150211 | Rivet |
| 49 | 517304075 | End Piece |
