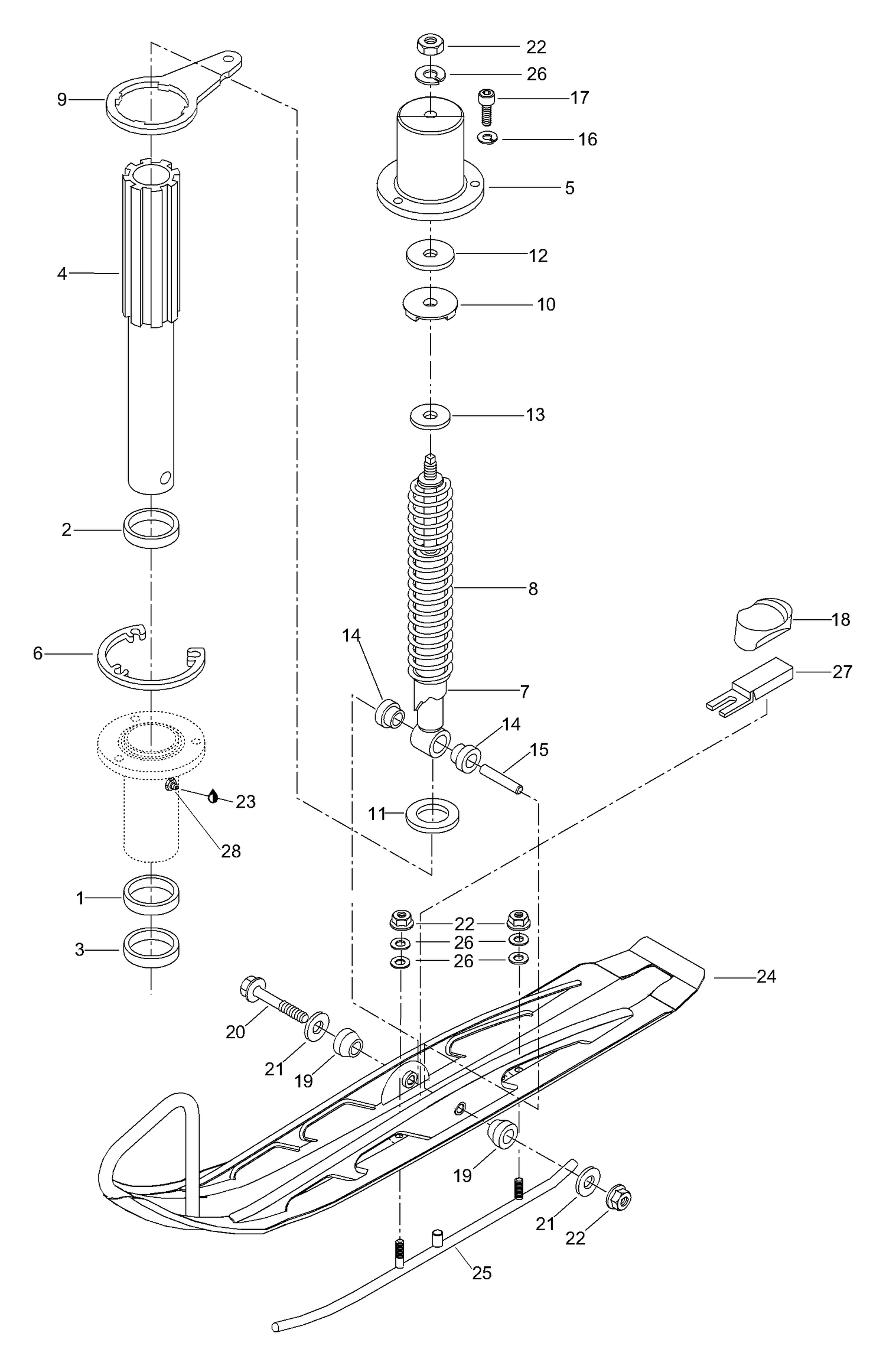

08- Front Suspension
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414803200 | Bushing, lower |
| 2 | 414803100 | Bushing, upper |
| 3 | 316373 | Seal - Call your local BRP dealership |
| 4 | 5243952 | Slide |
| 5 | 5240019 | Cover |
| 6 | 503145600 | SPACER - Call your local BRP dealership |
| 7 | 414803600 | SHOCK - Call your local BRP dealership |
| 8 | 5240897 | Spring |
| 9 | 5340383 | Reversing arm |
| 10 | 570025800 | Damper,rubber |
| 11 | 549493 | Bearing plate |
| 12 | 5440399 | Plate |
| 13 | 549492 | Holder plate |
| 14 | 572034500 | Sleeve |
| 15 | 549716 | Sleeve |
| 16 | 20014 | Lock washer |
| 17 | 40305 | Allen screw M8x20 |
| 18 | 5341750 | Rubber Absorber - Call your local BRP dealership |
| 19 | 547543 | Rubber |
| 20 | 40354 | Screw M10x125 |
| 21 | 20012 | Washer A10.5DIN 9021-ST MUP(1=10pcs) - Call your local BRP dealership |
| 22 | 33012 | Nut elastic M10 |
| 23 | 413711500 | SYNTHETIC GREASE - Call your local BRP dealership |
| 24 | 5245338 | Ski |
| 25 | 5344021 | Runner carbide |
| 26 | 20005 | WASHER M10 - Call your local BRP dealership |
| 27 | 5445639 | Support plate |
