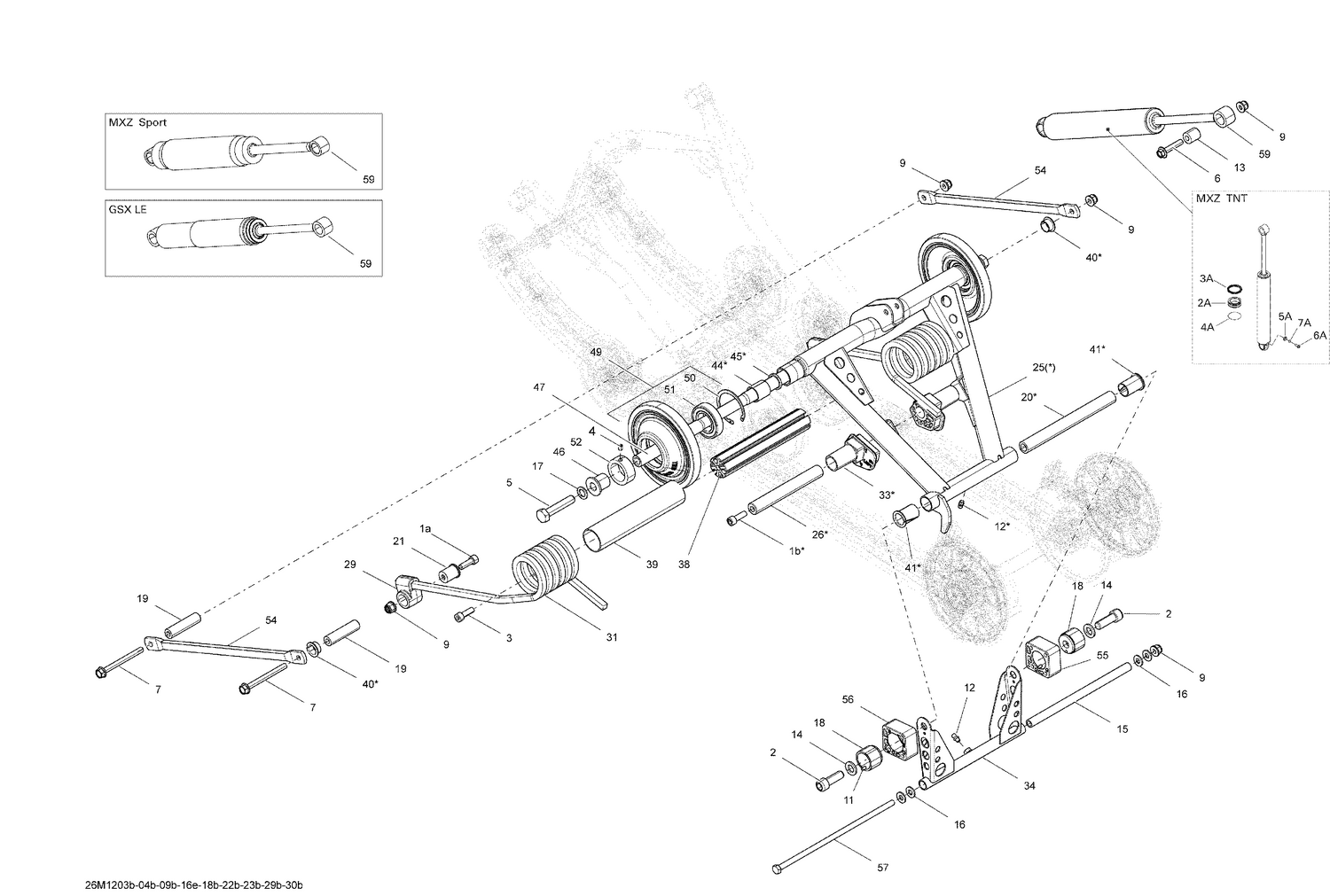

08- Rear Suspension Rear Arm And Shock
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1a | 250000477 | SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership |
| 1b | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 2 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 2A | 503189309 | FREE PISTON - Call your local BRP dealership |
| 3 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 3A | 414888312 | O-Ring |
| 4 | 206260844 | Socket Set Screw M6 X 8 |
| 4A | 503189308 | Piston Ring |
| 5 | 250000485 | Hex. Cap Screw M12 X 60, Scotch Grip |
| 5A | 505070398 | Air Valve |
| 6 | 207684044 | Hex. Flange Screw M8 X 40 |
| 6A | 505070399 | Screw |
| 7 | 207688544 | Hex. Flange Screw |
| 9 | 250100131 | Elastic Flange Nut M8 |
| 11 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 12 | 408200700 | Grease Fitting |
| 13 | 414936000 | Bushing |
| 14 | 503189148 | Washer |
| 15 | 503189156 | Pivot Arm Axle |
| 16 | 503192494 | Washer |
| 17 | 503192491 | Washer |
| 18 | 503189488 | Block Guide |
| 19 | 503190643 | Axle Bar (Long) |
| 20 | 503192330 | Lower Shaft |
| 21 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 25 | 503191785 | Rear Arm Ass'y |
| 26 | 503191178 | Spring Cam Axe |
| 29 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 31 | 503191612 | Black RH Spring, Square |
| 31 | 503191613 | Black LH Spring, Square |
| 33 | 503191190 | RH Spring Cam |
| 33 | 503191191 | LH Spring Cam |
| 34 | 503191302 | Pivot Arm |
| 38 | 503191344 | Spring Axle |
| 39 | 503191345 | Plastic Bushing |
| 40 | 503191555 | Swivel Bushing |
| 41 | 503191640 | Cushion |
| 44 | 503191773 | Bushing |
| 45 | 503191774 | Washer |
| 46 | 503191775 | Bushing |
| 47 | 503191776 | Upper Shaft |
| 49 | 503191777 | Black Wheel Ass'y, 144 mm |
| 50 | 415129371 | Retaining Ring |
| 51 | 503191778 | Ball Bearing |
| 52 | 503191782 | Retaining Ring |
| 54 | 503191802 | Link Rod |
| 55 | 503192300 | RH Block, 4 Positions |
| 56 | 503192301 | LH Block, 4 Positions |
| 57 | 503192440 | Bolt M8 X 248mm |
| 59 | 503192120 | REAR SHOCK - Call your local BRP dealership |
