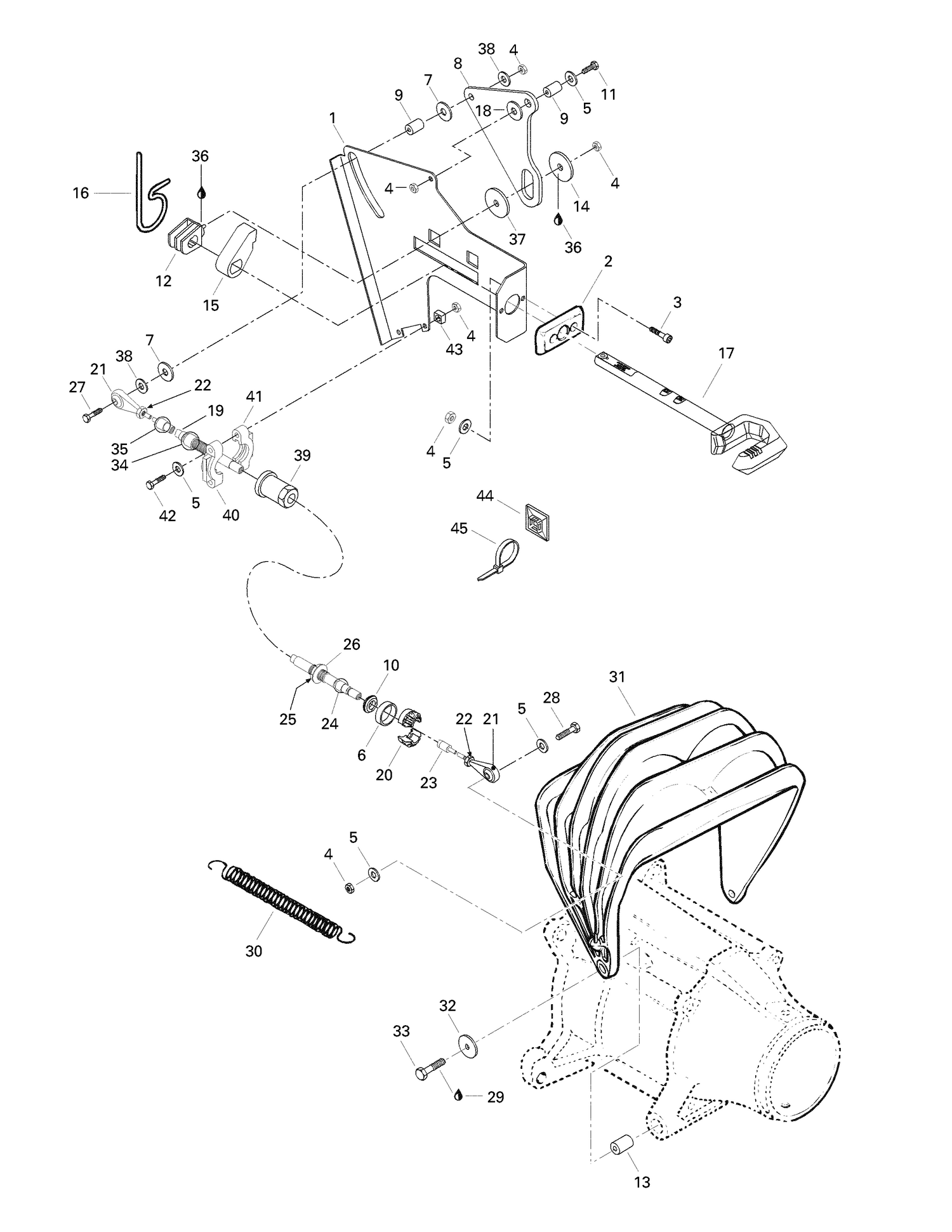

| Ref | Part Number | Description |
|---|
| 1 |
271000261 |
Reverse Support Plate |
| 2 |
271000057 |
Guide Plate |
| 3 |
211000018 |
SCREW-SOCKET BN.HD.M6 X 20 - Call your local BRP dealership |
| 4 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 5 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 6 |
211100010 |
Retaining Ring |
| 7 |
217001000 |
Flat Washer 10 mm |
| 8 |
271000260 |
Triangular Lever |
| 9 |
271000293 |
Bushing |
| 10 |
211100009 |
RUBBER WASHER - Call your local BRP dealership |
| 11 |
207162560 |
Hex. Screw M6 X 25 This part replaces 210000005. |
| 12 |
271000269 |
Sliding Block |
| 13 |
271000152 |
Bushing |
| 14 |
271000061 |
Washer |
| 15 |
271000268 |
Catch |
| 16 |
271000270 |
Spring |
| 17 |
271000288 |
Reverse Handle |
| 18 |
217001000 |
Flat Washer 10 mm |
| 19 |
277000282 |
REVERSE CABLE - Call your local BRP dealership |
| 20 |
277000168 |
Half-Ring |
| 21 |
277000153 |
BALL JOINT - Call your local BRP dealership |
| 22 |
212100005 |
Hex. Nut |
| 23 |
277000038 |
Small Boot |
| 24 |
277000039 |
LARGE BOOT - Call your local BRP dealership |
| 25 |
211100011 |
Hex. Jam Nut 1/2-20 |
| 26 |
211200006 |
FLAT WASHER, STAINLESS - Call your local BRP dealership |
| 27 |
207064060 |
Hex. Screw M6 X 40 This part replaces 215664060. |
| 28 |
207064560 |
HEX. SCREW M6 X 45 - Call your local BRP dealership This part replaces 210000013. |
| 29 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 30 |
271000083 |
Spring |
| 31 |
271000149 |
Reverse Gate (Black) |
| 32 |
234081600 |
Stainless, Flat Washer 8 mm This part replaces 213200002. |
| 33 |
207083560 |
Hex. Screw M8 X 35 This part replaces 210100013. |
| 34 |
277000277 |
Large Boot |
| 35 |
277000278 |
SMALL BOOT - Call your local BRP dealership |
| 36 |
293550010 |
Synthetic Grease, 400 G |
| 37 |
211200012 |
Flat Washer 20 mm |
| 38 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 39 |
277000167 |
KNOB ADJUSTER - Call your local BRP dealership |
| 40 |
277001528 |
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162. |
| 41 |
271000257 |
Thrust Support |
| 42 |
207065060 |
Hex. Screw M6 X 50 This part replaces 215665060. |
| 43 |
269500252 |
M6 Nut Housing Ass'y |
| 44 |
293750003 |
TIE RAP MOUNT - Call your local BRP dealership |
