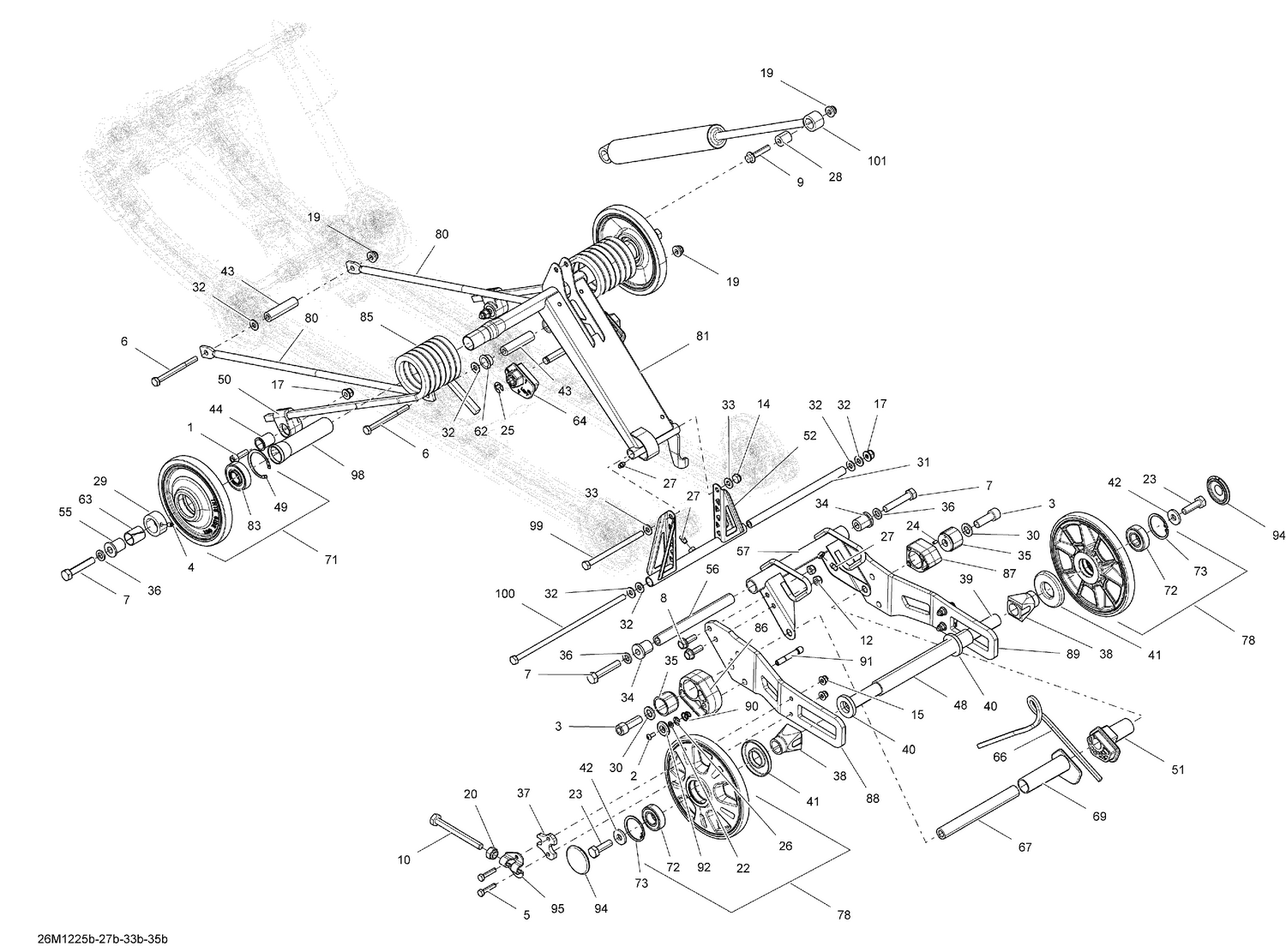

| Ref | Part Number | Description |
|---|
| 1 |
205082544 |
Socket Head Screw M8 X 25 |
| 2 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
| 3 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 4 |
206260844 |
Socket Set Screw M6 X 8 |
| 5 |
250000480 |
Hex Cap Screw DIN.931 |
| 6 |
207089044 |
Hex. Screw M8 X 90 |
| 7 |
207205586 |
HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership |
| 8 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 9 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 10 |
230100054 |
Hex Screw M10 x 100 |
| 12 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 14 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 15 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 17 |
250100131 |
Elastic Flange Nut M8 |
| 19 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 20 |
250100132 |
ELASTIC LOCKING NUT M10 - Call your local BRP dealership |
| 22 |
234051410 |
Flat Washer M5 |
| 23 |
250000019 |
Hex. Screw With Nylon |
| 24 |
250400005 |
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 25 |
293370013 |
E-Circlip |
| 26 |
293370068 |
Circlip |
| 27 |
408200700 |
Grease Fitting |
| 28 |
414936000 |
Bushing |
| 29 |
503168800 |
Retaining Ring |
| 30 |
503189148 |
Washer |
| 31 |
503189156 |
Pivot Arm Axle |
| 32 |
503189157 |
Washer |
| 32 |
503192494 |
Washer |
| 33 |
503189157 |
Washer |
| 34 |
503189324 |
Bushing |
| 35 |
503189488 |
Block Guide |
| 36 |
503189564 |
Washer |
| 37 |
503193250 |
Spacer This part replaces 503190379. |
| 38 |
503190428 |
Rear Wheel Spacer |
| 39 |
503190429 |
Rear Axle |
| 40 |
503190432 |
Washer |
| 41 |
503190434 |
Labyrinth Seal |
| 42 |
503190439 |
Washer |
| 43 |
503190643 |
Axle Bar (Long) |
| 44 |
861805547 |
Spring Support Kit This part replaces 503190754. |
| 48 |
503191736 |
Rear Spacer, Long |
| 49 |
415129371 |
Retaining Ring |
| 50 |
861805547 |
Spring Support Kit This part replaces 503191183. |
| 51 |
503191190 |
RH Spring Cam |
| 52 |
503191209 |
Pivot Arm |
| 55 |
503191262 |
Bushing |
| 56 |
503191279 |
Lower Shaft |
| 57 |
503192647 |
Runner Pivot |
| 62 |
503191555 |
Swivel Bushing |
| 63 |
503191556 |
Extended Bushing |
| 64 |
503191565 |
LH Cam Adjuster |
| 64 |
503191566 |
RH Cam Adjuster |
| 66 |
503194624 |
Spring This part replaces 503192282. |
| 67 |
503191608 |
Cam Axle |
| 69 |
503191668 |
LH Spring Cam |
| 71 |
503191738 |
Black, Wheel Ass'y 155 mm |
| 72 |
503190396 |
Ball Bearing |
| 73 |
415129371 |
Retaining Ring |
| 78 |
503192128 |
Deep Black, Wheel Ass'y, 165 mm |
| 80 |
503191765 |
Link Rod |
| 81 |
503191762 |
Rear Arm |
| 83 |
503193548 |
Ball Bearing This part replaces 503191982. |
| 85 |
503193158 |
Black, LH Spring Square This part replaces 503192136. |
| 85 |
503193159 |
Black, RH Spring Square This part replaces 503192137. |
| 86 |
503192426 |
LH Block |
| 87 |
503192427 |
RH Block |
| 88 |
503192434 |
Rail Pivot LH |
| 89 |
503192435 |
Rail Pivot RH |
| 90 |
503192436 |
Compression Spring |
| 91 |
503192437 |
Rode |
| 92 |
503192438 |
Handle |
| 94 |
503192771 |
Black, Wheel Cap |
| 95 |
503192583 |
Tensioner This part replaces 503192814. |
| 98 |
572080700 |
Bushing |
| 99 |
732601197 |
Bolt M8, Short |
| 100 |
503192440 |
Bolt M8 X 248mm |
