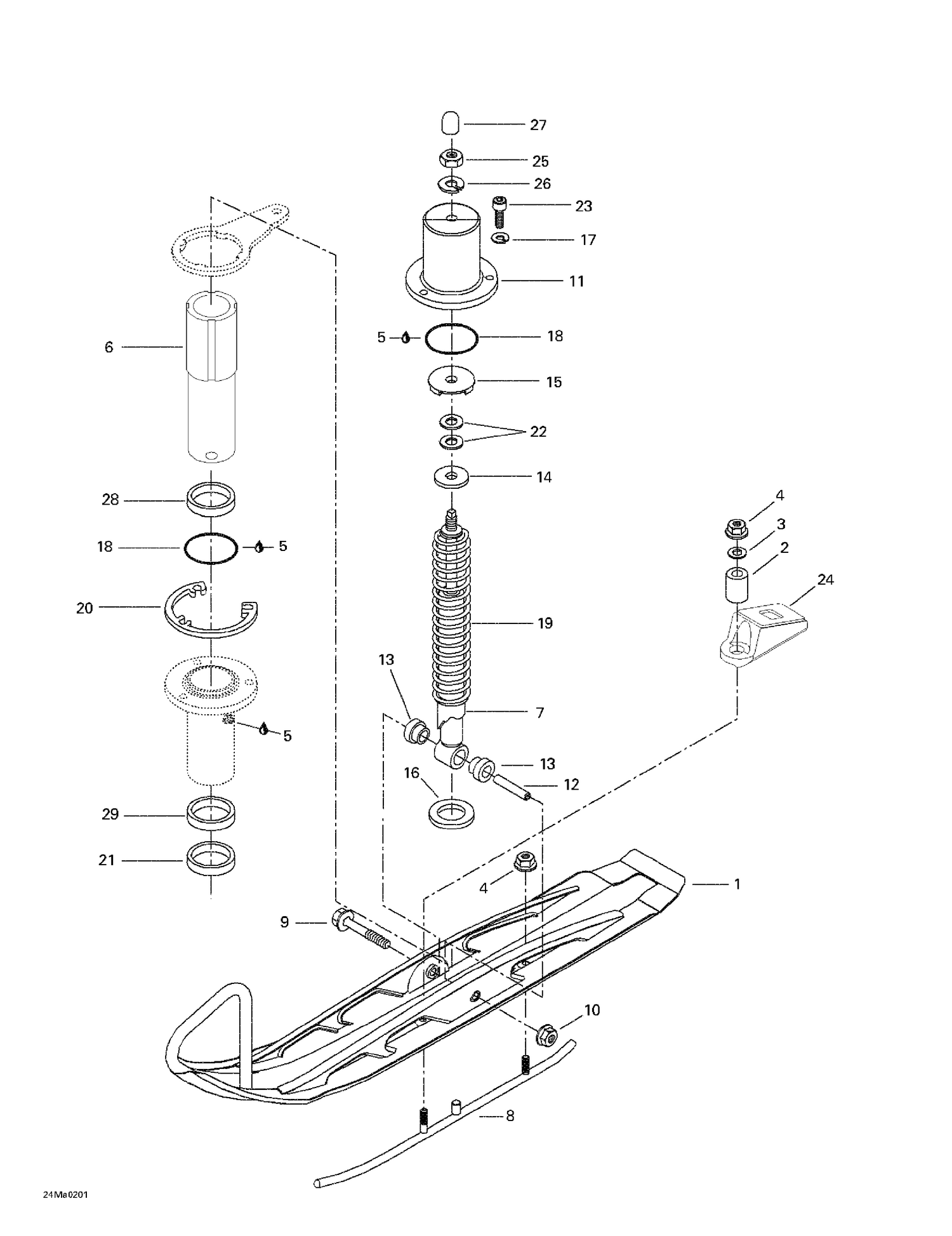

07- Front Suspension And Ski
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505070203 | PAINT SKI - Call your local BRP dealership |
| 2 | 506117300 | BUSHING - Call your local BRP dealership |
| 3 | 234082410 | Flat Washer 8 mm |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 |
| 5 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 6 | 506070800 | Ski Leg |
| 7 | 505070014 | SHOCK - Call your local BRP dealership |
| 8 | 505070264 | Wekded Ski Runner |
| 9 | 230001044 | HEX. SCREW M10 X 110 - Call your local BRP dealership |
| 10 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 11 | 518203200 | Paint Cover |
| 12 | 503156400 | Bushing |
| 13 | 572034500 | Cushion |
| 14 | 518203400 | Washer |
| 15 | 570025800 | Stopper |
| 16 | 505070192 | WASHER - Call your local BRP dealership |
| 17 | 234181401 | Lock Washer 8 mm |
| 18 | 414811400 | O-Ring |
| 19 | 505070130 | Black Spring |
| 20 | 503145600 | SPACER - Call your local BRP dealership |
| 21 | 505072696 | Seal Oil This part replaces 414808900. |
| 22 | 234001410 | Flat Washer 10 mm |
| 23 | 205082044 | Socket Head Screw M8 X 20 |
| 24 | 505070230 | Stopper |
| 25 | 232006414 | Hex. Nut M10 X 1.5 |
| 26 | 234101402 | Lock Washer M10 |
| 27 | 414877100 | Cap |
| 28 | 414803100 | Upper Cushion |
